Setting The Target Board: Description

Accurate adjustment of the distance sensor (ICC sensor) alignment requires that the target board be accurately positioned.

1. TARGET BOARD FINAL SETTING

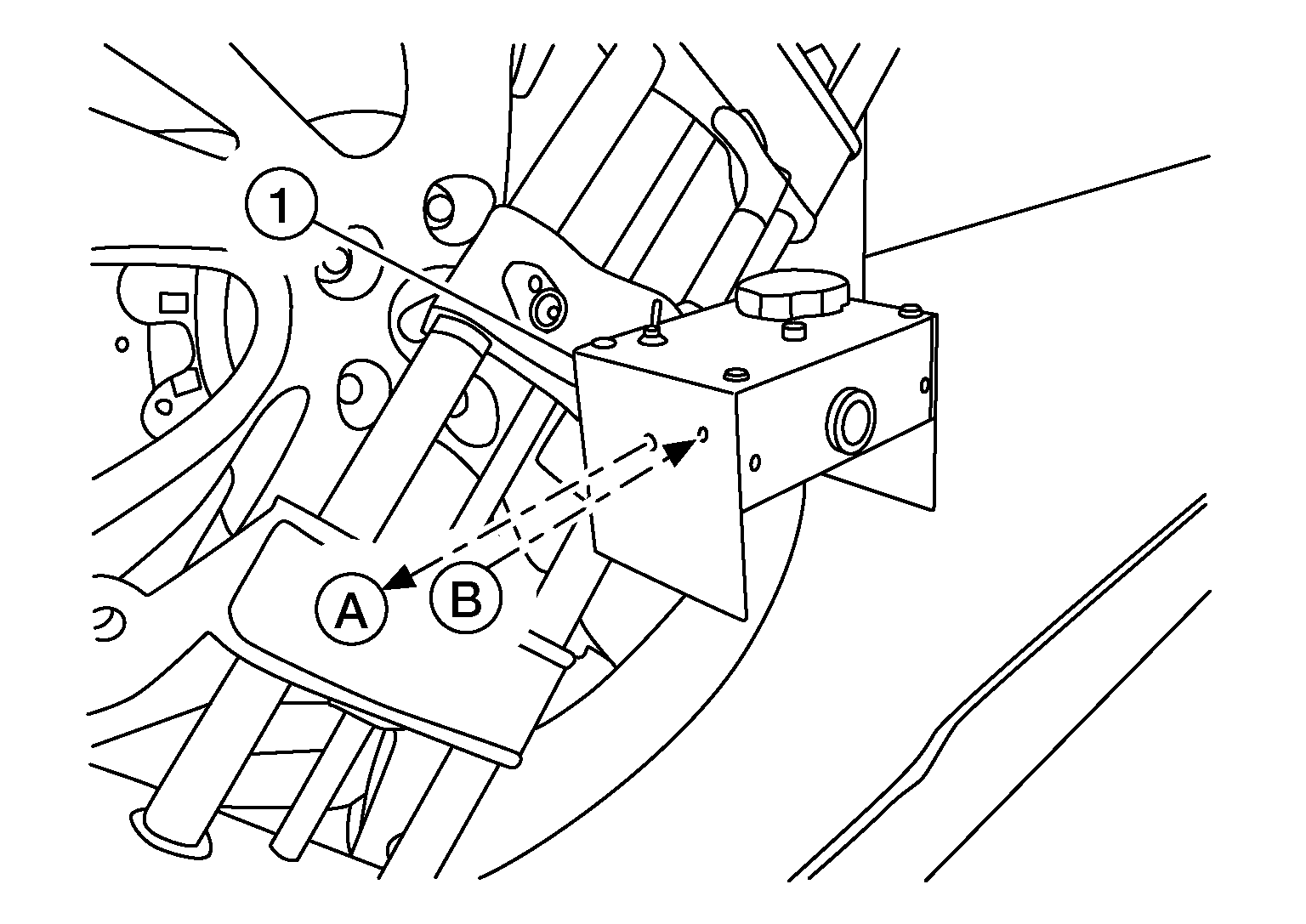

   1. With the target board arm extended, the laser beam (1) emitted by the laser assembly (A) will be reflected back (B) toward the laser assembly.

      Courtesy of NISSAN NORTH AMERICA, INC.

      NOTE: When adjusted properly, reflected laser beam (B) must align with emitted laser beam (A) and the two laser beams will be seen as one.
   2. Rotate the target board to achieve the necessary horizontal adjustment.
   3. Adjust the target board leveling screws to achieve the necessary vertical adjustment.

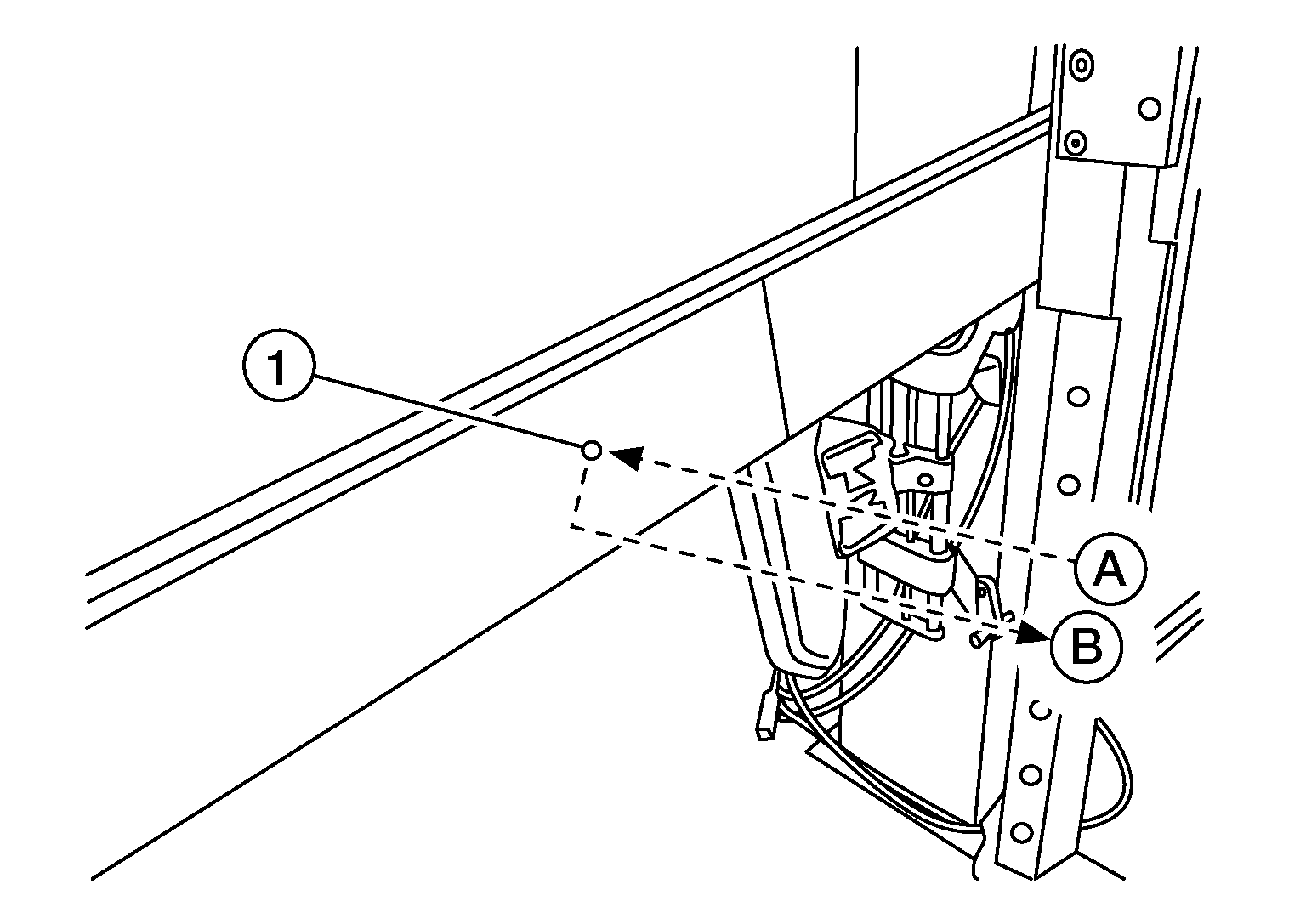

   4. The figure shown illustrates the laser beam (A) emitted by the laser assembly (1) and its reflection (B) off the target board arm.

      Courtesy of NISSAN NORTH AMERICA, INC.

   GO TO 2.

2. CHECK THE POSITION OF THE TARGET BOARD

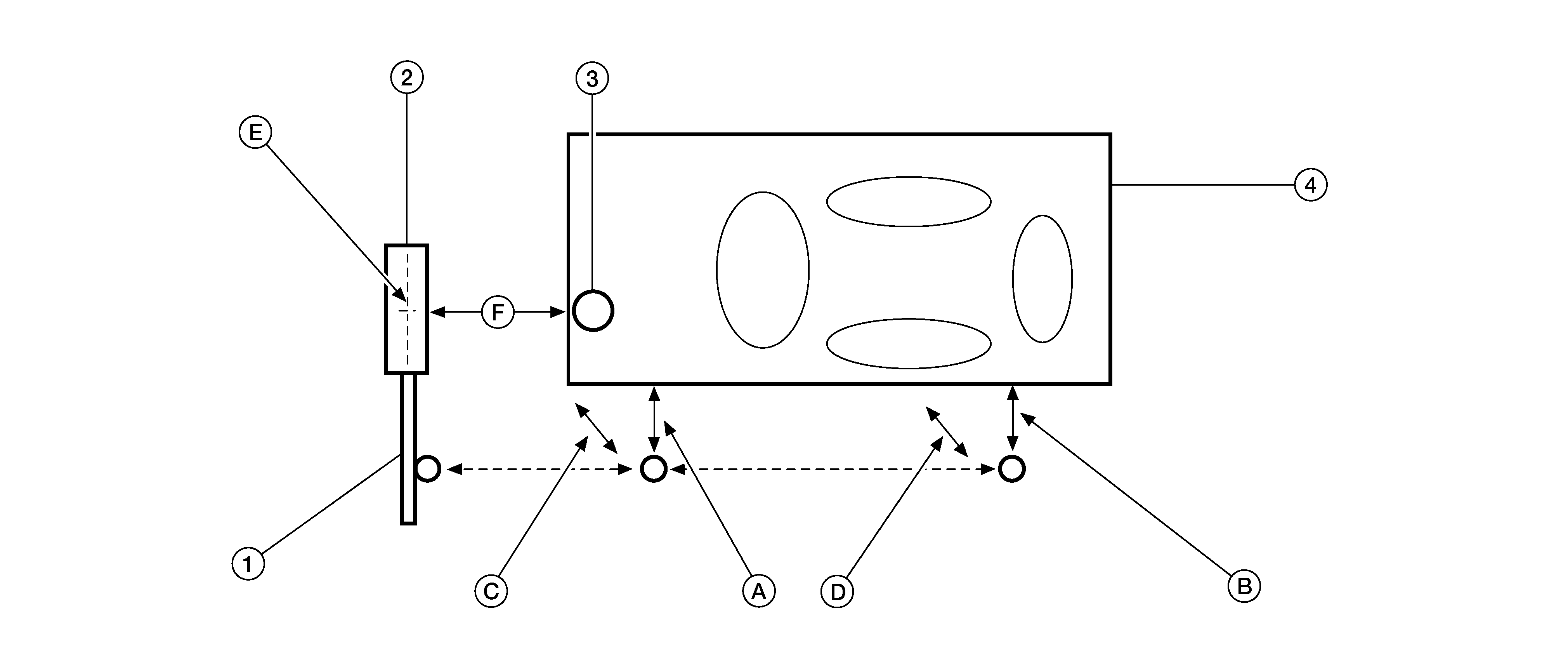

   Do not place anything other than the target board in the space shown in front of the vehicle (view from top).

   Courtesy of NISSAN NORTH AMERICA, INC.

   1.	Target board arm	2.	Target board	3.	Distance sensor (ICC sensor)
   4.	Vehicle	A .	Distance between front wheel and laser beam (D f)	B.	Distance between rear wheel and laser beam (D r)
   C.	Height between front laser beam and ground (H f)	D.	Height between rear laser beam and ground (H r)	E.	Target board center position (Position 2)
   L.	1 - 1.5 m (39.3 - 59 in.)

   Refer to Distance Sensor (ICC Sensor) Adjustment .
