Work Procedure

1. Turn ignition switch OFF.

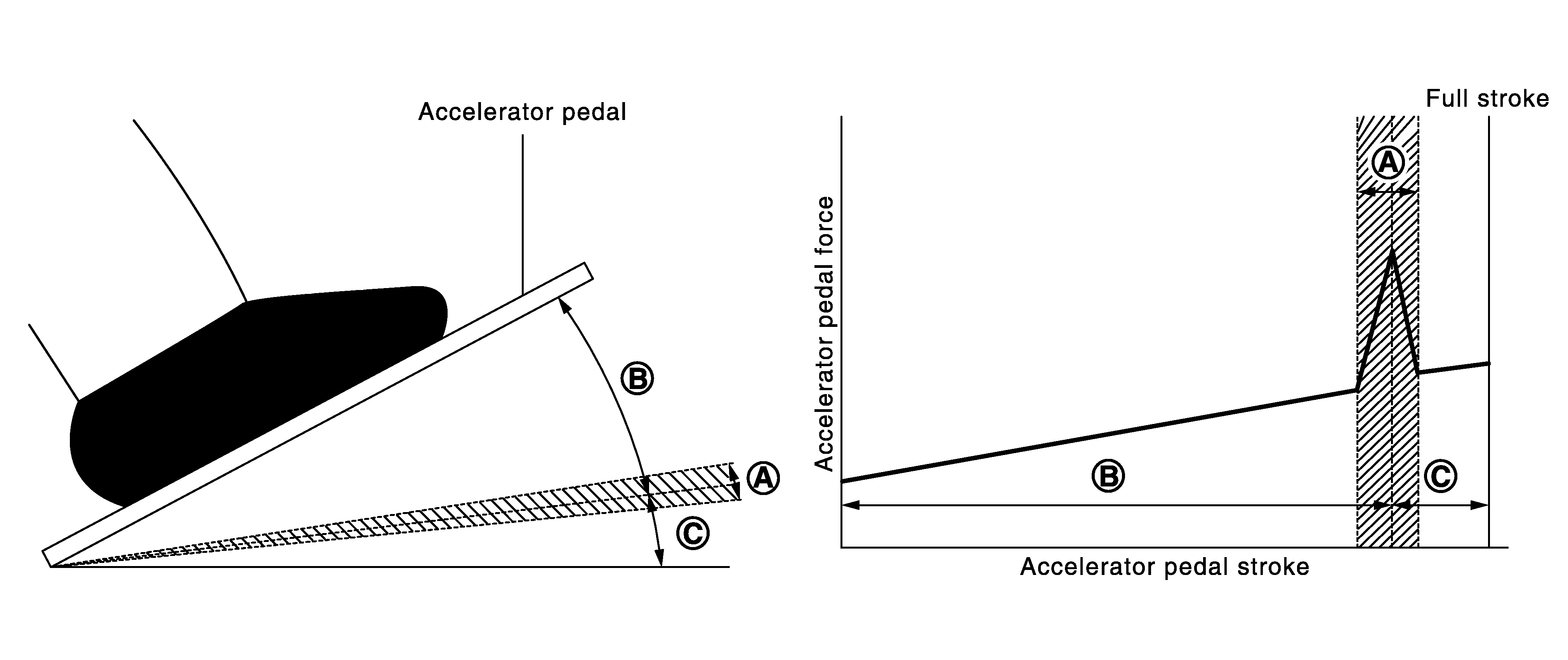

2. Depress the accelerator pedal and check if there is a specific point (A) in the pedal stroke where the pedal force increase as shown in the figure.

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

With CONSULT: GO TO 2 .

YES

Without CONSULT: GO TO 3 .

NO

Perform Accelerator Pedal Released Position Learning. Refer to Description .

With CONSULT

1. Turn ignition switch ON.
2. Select "KICKDOWN POS" in "DATA MONITOR" mode using CONSULT.
3. Check "KICKDOWN POS" indication under the following condition.

   Monitor item	Condition	Indication
   KICKDOWN POS	Depressing range of the accelerator pedal: Within (B) as indicated in the figure	OFF
   	Depressing range of the accelerator pedal: Within (C) as indicated in the figure	ON

Is the inspection result normal?

YES

INSPECTION END

NO

Perform Accelerator Pedal Released Position Learning. Refer to Description .

Without CONSULT

1. Turn ignition switch ON.
2. Check the voltage between ECM harness connector and ground under the following conditions.

   ECM			Condition	Voltage (Approx.)
   Connector	+	-
   	Terminal
   E17	150 (APP sensor 1)	151	Depressing range of the accelerator pedal: Within (C) as indicated in the figure	3.9 - 4.7 V
   	143 (APP sensor 2)	144		1.95 - 2.4 V

Is the inspection result normal?

YES

INSPECTION END

NO

Perform Accelerator Pedal Released Position Learning. Refer to Description .
