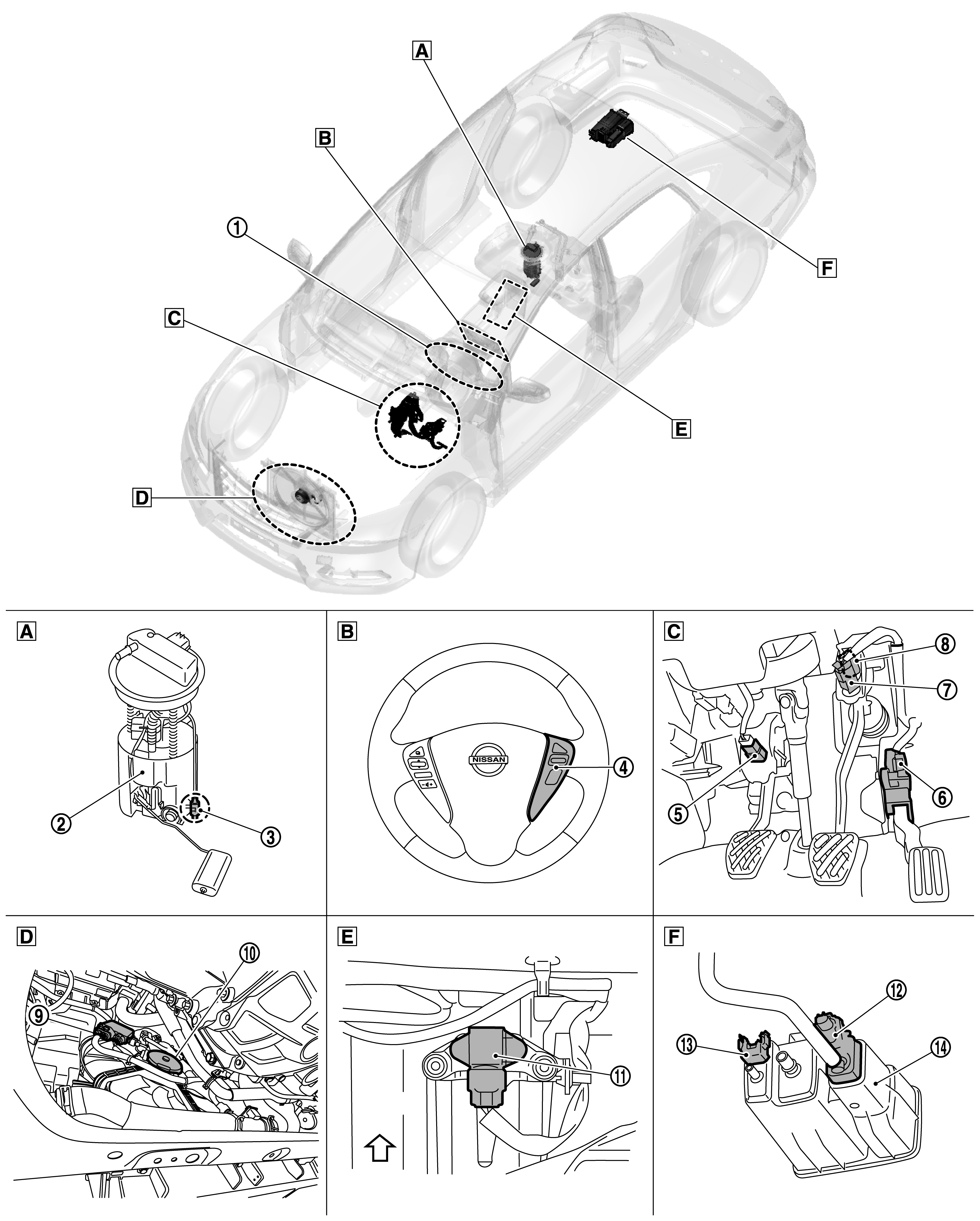

Body Compartment
|
|
Inside fuel tank |
|
Steering wheel |
|
Periphery of pedals |
|
|
Lower front side of engine compartment |
|
Under driver seat |
|
Right rear undercarriage area |
|
|
: Vehicle front |
|
No. |
Component |
Reference |
|
|
Combination meter |
Performs the ON/OFF control of the indicator lamp, warning lamp, and the information display, according to signals received from ECM via CAN communication. |
|
|
Fuel level sensor unit and fuel pump |
|
|
|
Fuel tank temperature sensor |
|
|
|
ASCD steering switch |
|
|
|
Clutch pedal position switch (M/T models) |
|
|
|
Accelerator pedal position sensor |
|
|
|
Stop lamp switch |
|
|
|
Brake pedal position switch |
|
|
|
Cooling fan control module |
|
|
|
Cooling fan motor |
|
|
|
G sensor |
|
|
|
EVAP canister vent control valve |
|
|
|
EVAP control system pressure sensor |
|
|
|
EVAP canister |
