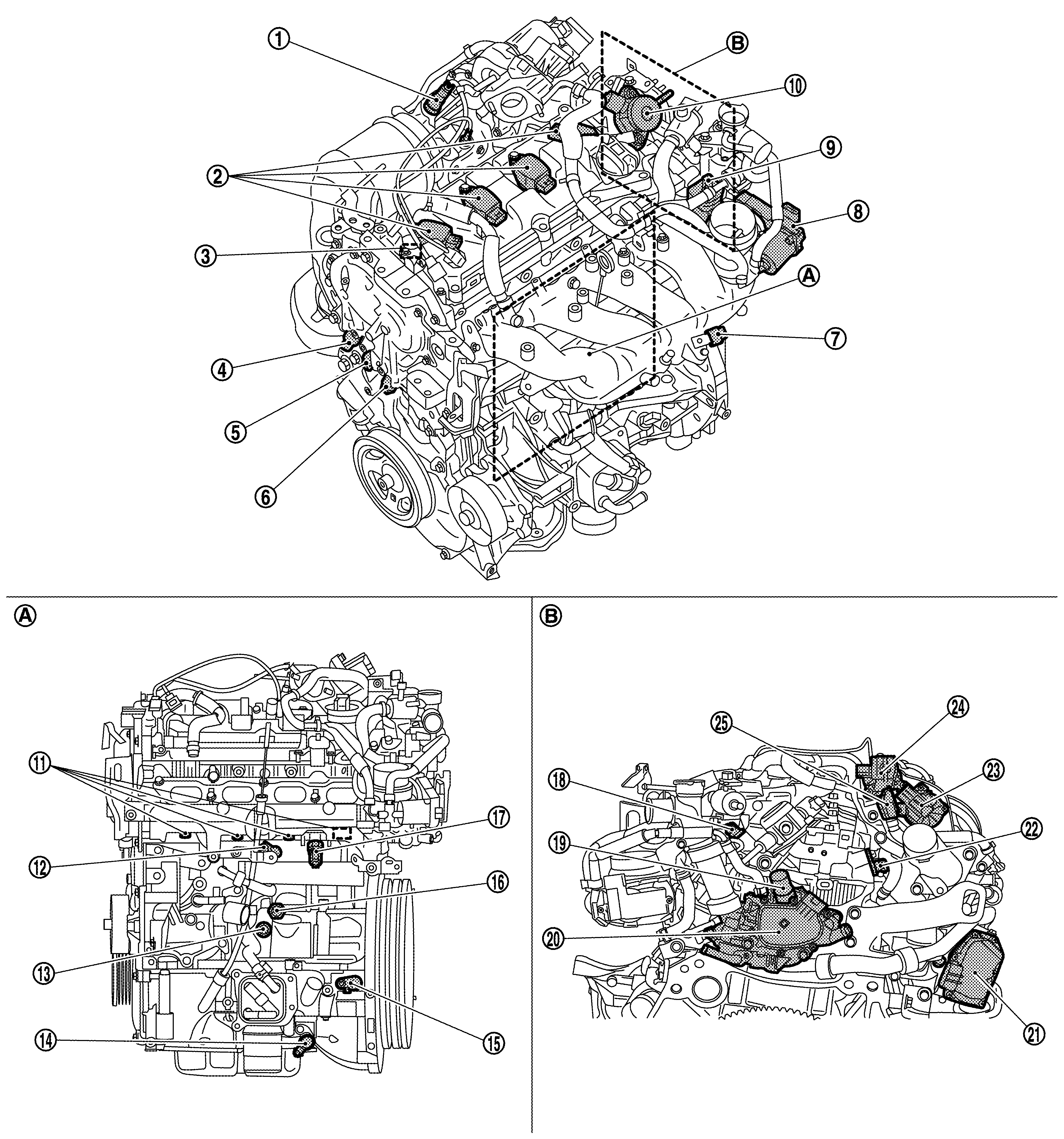

Engine Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

Cylinder block left side

Engine rear end

No.	Component	Function
	Air fuel ratio (A/F) sensor 1	Air Fuel Ratio (A/F) Sensor 1
	Ignition coil (with power transistor)	Ignition Coil With Power Transistor
	PCV valve	Positive Crankcase Ventilation
	Exhaust valve timing control solenoid valve	Exhaust Valve Timing Control Solenoid Valve
	Intake valve timing intermediate lock control solenoid valve	Intake Valve Timing Intermediate Lock Control Solenoid Valve
	Intake valve timing control solenoid valve	Intake Valve Timing Control Solenoid Valve
	Manifold absolute pressure sensor	Manifold Absolute Pressure Sensor
	Electric throttle control actuator	Electric Throttle Control Actuator
	Intake manifold runner control valve	Intake Manifold Runner Control Valve
	High pressure fuel pump	High Pressure Fuel Pump
	Fuel injector	Fuel Injector
	Knock sensor	Knock Sensor
	Engine oil temperature sensor	Engine Oil Temperature Sensor
	Engine oil pressure control solenoid valve	Engine Oil Pressure Control Solenoid Valve
	Crankshaft position sensor	Crankshaft Position Sensor (POS)
	Engine oil pressure sensor	Engine Oil Pressure Sensor
	Fuel rail pressure sensor	Fuel Rail Pressure Sensor
	Camshaft position sensor	Camshaft Position Sensor (PHASE)
	Engine coolant temperature sensor	Engine Coolant Temperature Sensor 1
	Multi-way control valve	Multi-way Control Valve
	EGR volume control valve	EGR Volume Control Valve
	Exhaust valve timing control position sensor	Exhaust Valve Timing Control Position Sensor
	Electric wastegate control actuator	Turbocharger
	Turbocharger bypass control valve	Turbocharger
	EGR pressure sensor	EGR Pressure Sensor
