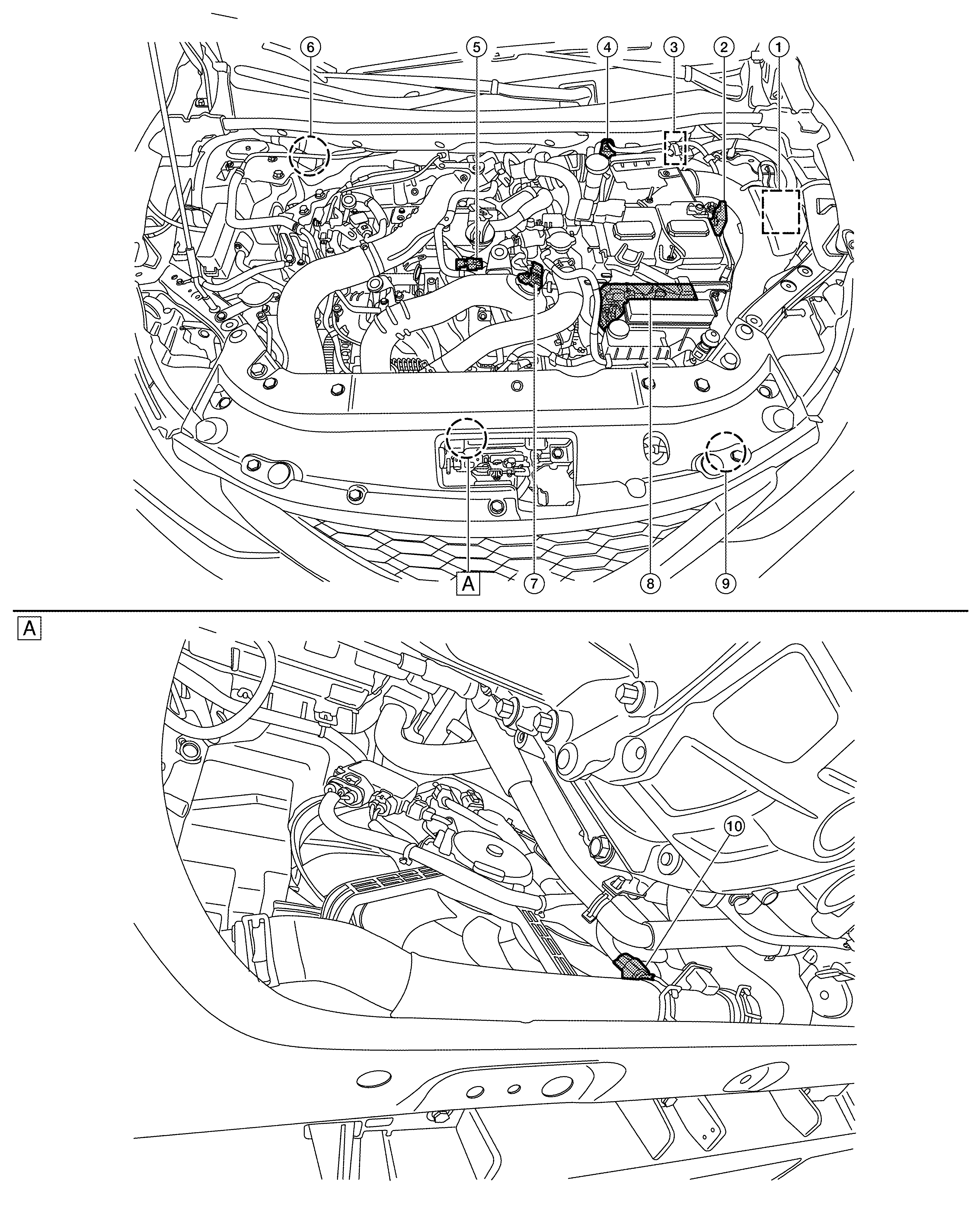

Engine Room Compartment
|
|
Lower front side of engine compartment |
|
No. |
Component |
Function |
|
|
IPDM E/R |
System Description (With I-key) System Description (Without I-key) |
|
|
Battery current sensor |
|
|
|
TCM (CVT control module) |
|
|
|
Mass air flow sensor |
|
|
|
EVAP canister purge volume control solenoid valve |
|
|
|
ABS actuator and electric unit (control unit) |
ABS Actuator and Electric Unit (Control Unit) (without ICC) |
|
|
Turbocharger boost sensor |
Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) |
|
|
ECM |
|
|
|
Refrigerant pressure sensor |
|
|
|
Engine coolant temperature sensor 2 |
