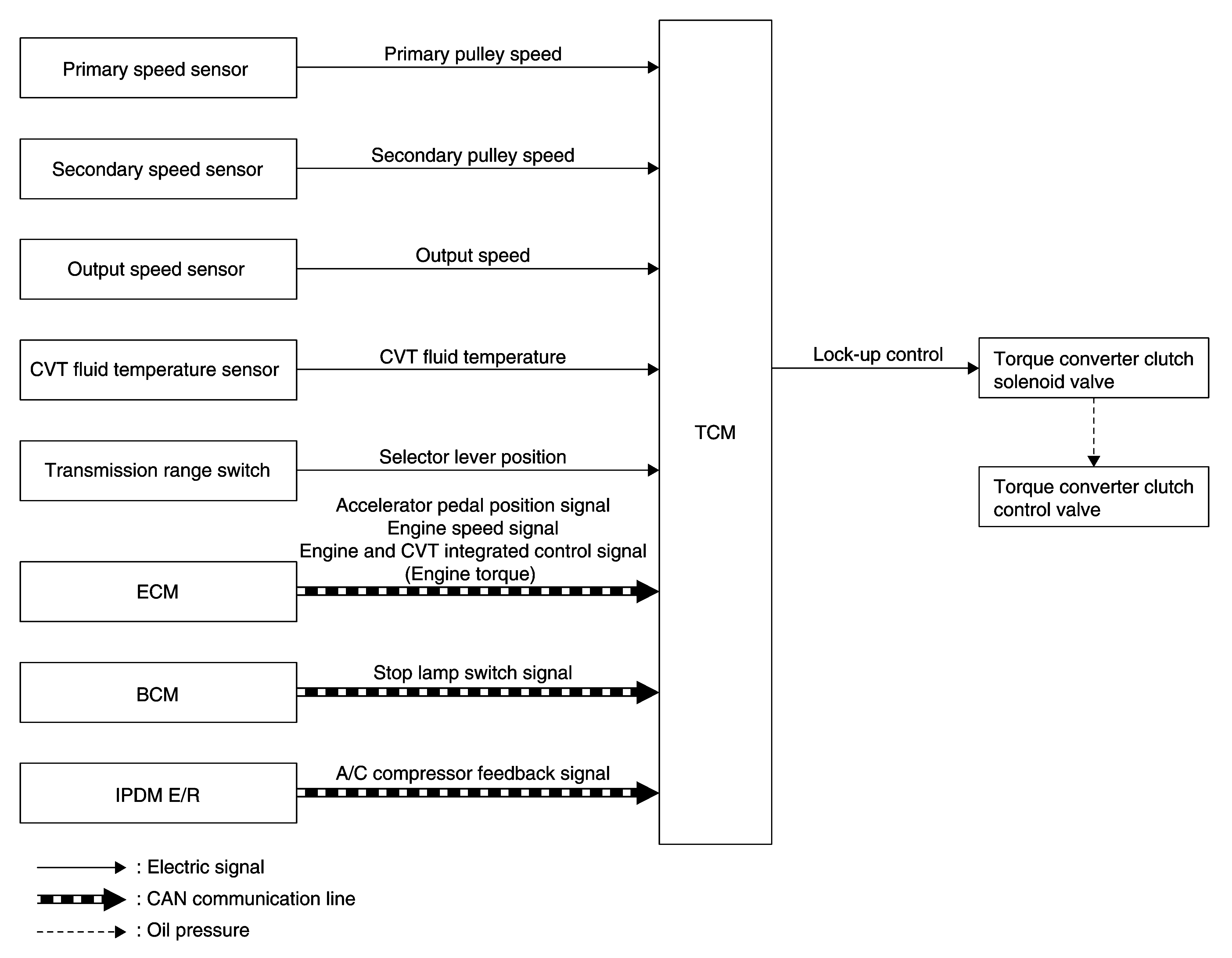

Home >> Nissan-Datsun >> 2019 >> Sentra SR >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Automatic Transmission (Introduction And Basic Inspection) (Re0F11A) >> System Description >> System >> Lock-Up Control >> System Description >> System Diagram
