Exploded View: MR16DDT

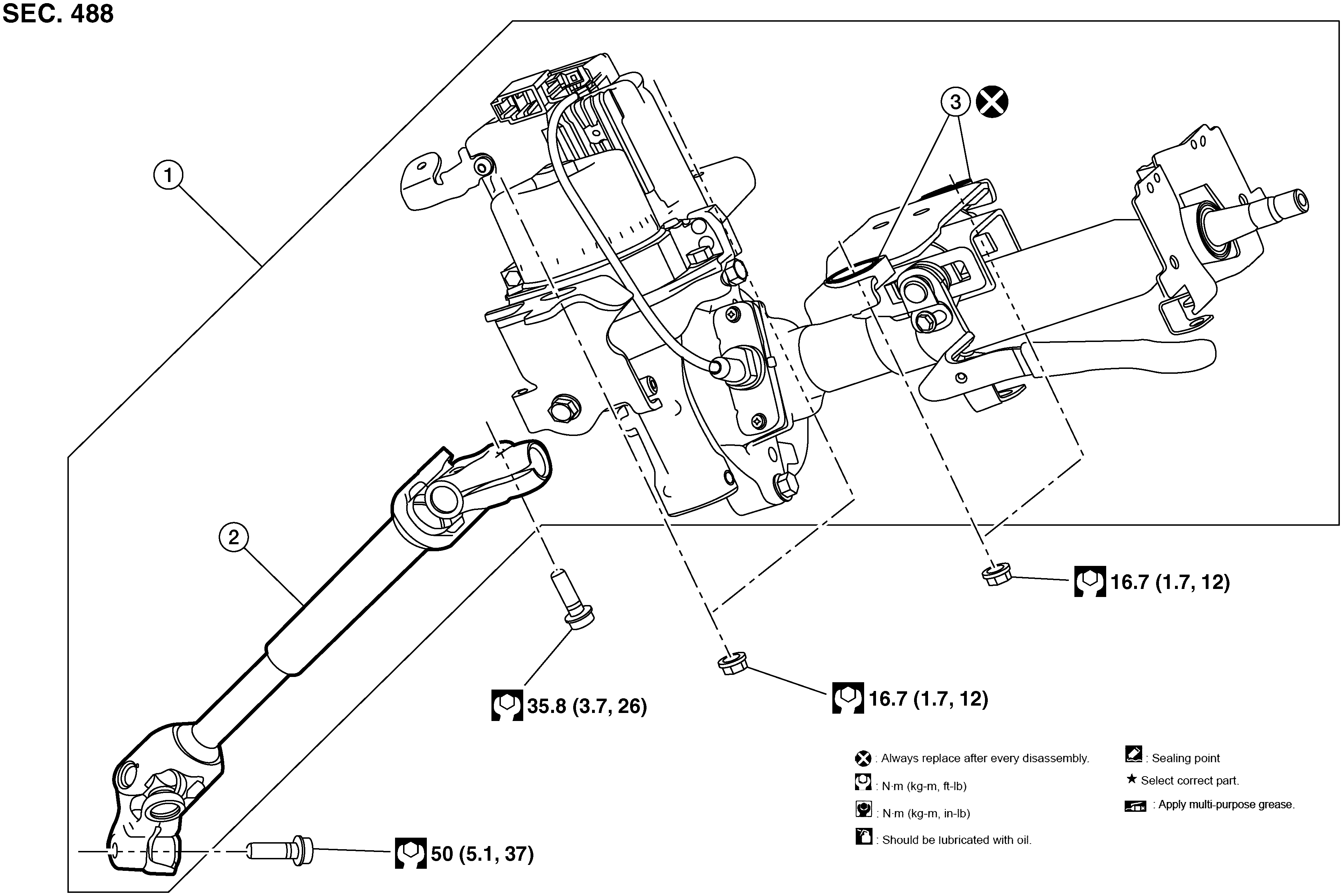

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (MR16DDT)
GNSALGIA0116Z-116Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Lower joint

3.

Slide plates
