Auto Active Test
Description

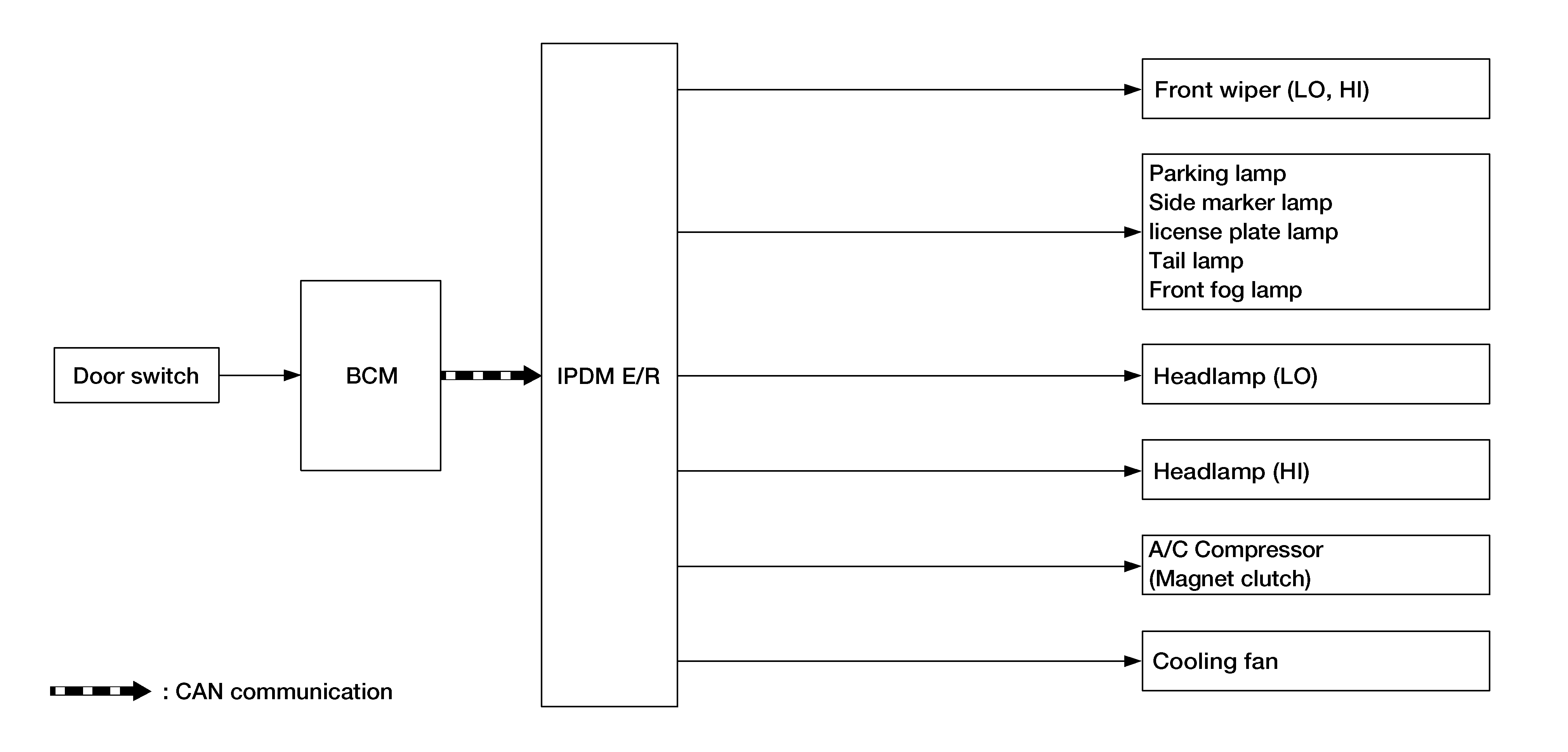

In auto active test, the IPDM E/R sends a drive signal to the following systems to check their operation:
- Front wiper (LO, HI)
- Parking lamp
- Side marker lamp
- License plate lamp
- Tail lamp
- Front fog lamp (if equipped)
- Headlamp (LO, HI)
- A/C compressor (magnet clutch)
- Cooling fan
Operation Procedure
- Passenger door is open
- CONSULT is connected
- Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper operation)NOTE: When auto active test is performed with hood opened, sprinkle water on windshield beforehand.
- Turn the ignition switch OFF.
- Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the ignition switch OFF.
- Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test starts.
- After a series of the following operations is repeated 3 times, auto active test is completed.
- When auto active test has to be cancelled halfway through test, turn the ignition switch OFF.
- When auto active test is not activated, door switch may be the cause. Check door switch. Refer to Component Function Check (with Intelligent Key system) or Component Function Check (without Intelligent Key system).
Inspection in Auto Active Test
When auto active test is actuated, the following operation sequence is repeated 3 times.
|
Operation sequence |
Inspection location |
Operation |
|
1 |
Front wiper |
LO for 5 seconds → HI for 5 seconds |
|
2 |
|
10 seconds |
|
3 |
Headlamp |
LO for 10 seconds → HI ON → OFF 5 times |
|
4 |
A/C compressor (magnet clutch) |
ON → OFF 5 times |
|
5 |
Cooling fan |
LO for 5 seconds → MID for 3 seconds → HI for 2 seconds |
Concept of Auto Active Test
- IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communication. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto active test starts successfully.
- The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.
Diagnosis Chart in Auto Active Test
|
Symptom |
Inspection contents |
Possible cause |
|
|
Any of the following components do not operate
|
Perform auto active test. Does the applicable system operate? |
YES |
BCM signal input circuit |
|
NO |
|
||
|
A/C compressor does not operate |
Perform auto active test. Does the magnet clutch operate? |
YES |
|
|
NO |
|
||
|
Cooling fan does not operate |
Perform auto active test. Does the cooling fan operate? |
YES |
|
|
NO |
|
||
