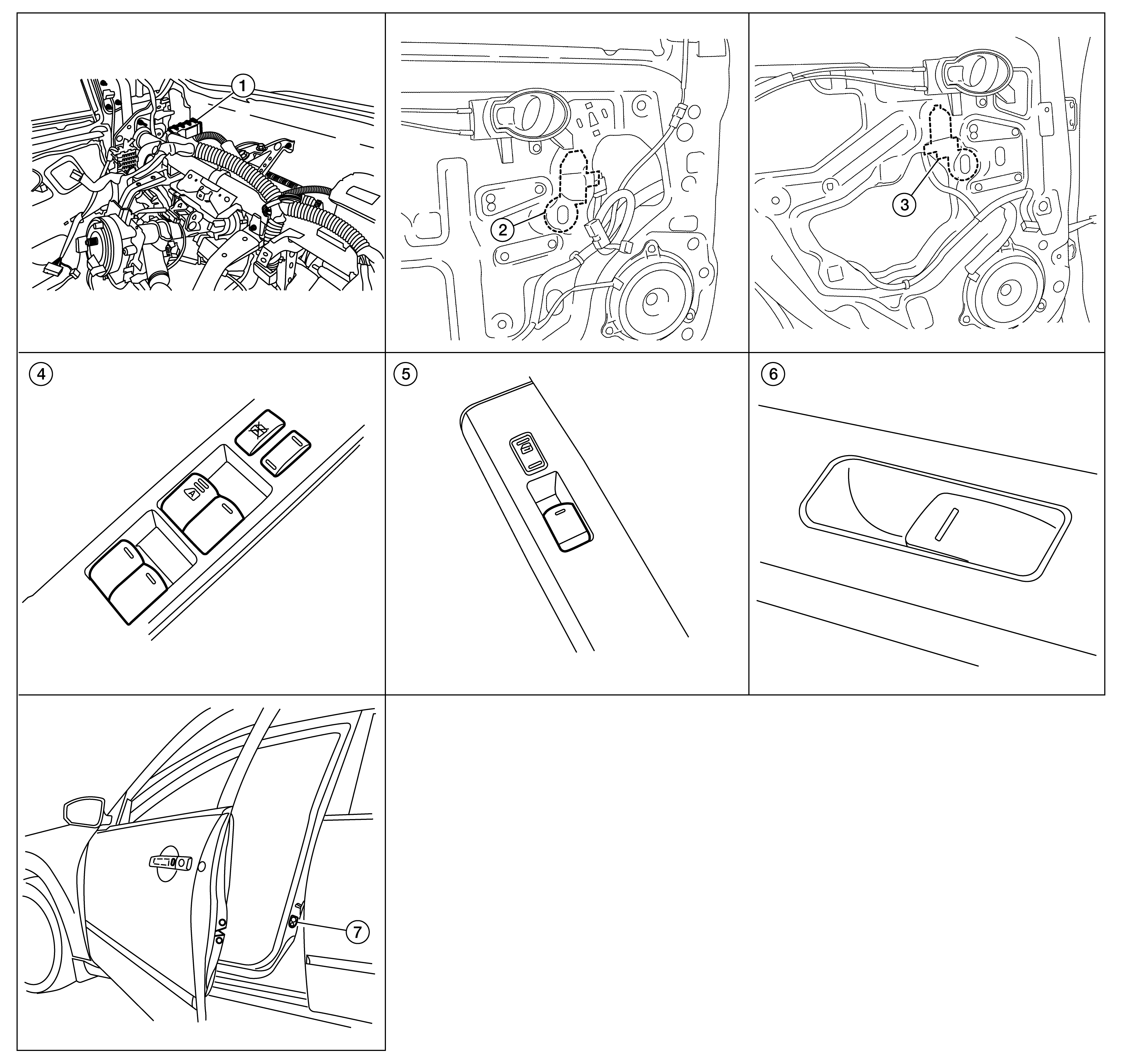

Component Parts: ComponentPartsLocation
|
1. |
BCM (view with instrument panel removed) |
2. |
Front power window motor (view with front door finisher removed) |
3. |
Rear power window motor (view with rear door finisher removed) |
|
4. |
Main power window and door lock/unlock switch |
5. |
Front power window and door lock/unlock switch RH |
6. |
Rear power window switch |
|
7. |
Front door switch LH (RH similar) |
