Exploded View

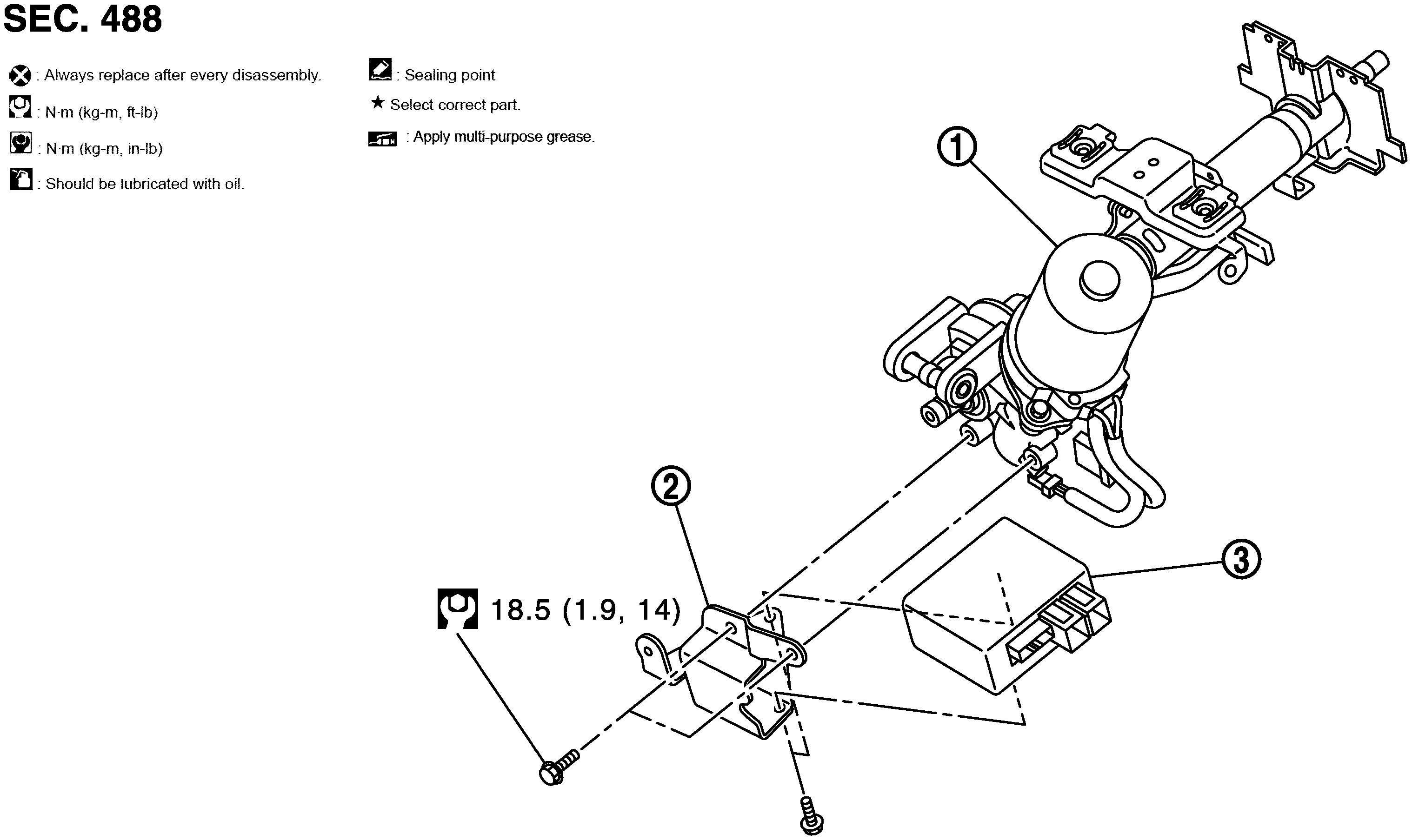

Fig 1: EPS Control Unit With Torque Specifications
GNSJPGIB04GB-004Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Bracket

3.

EPS control unit
