Back Door Lock Assembly

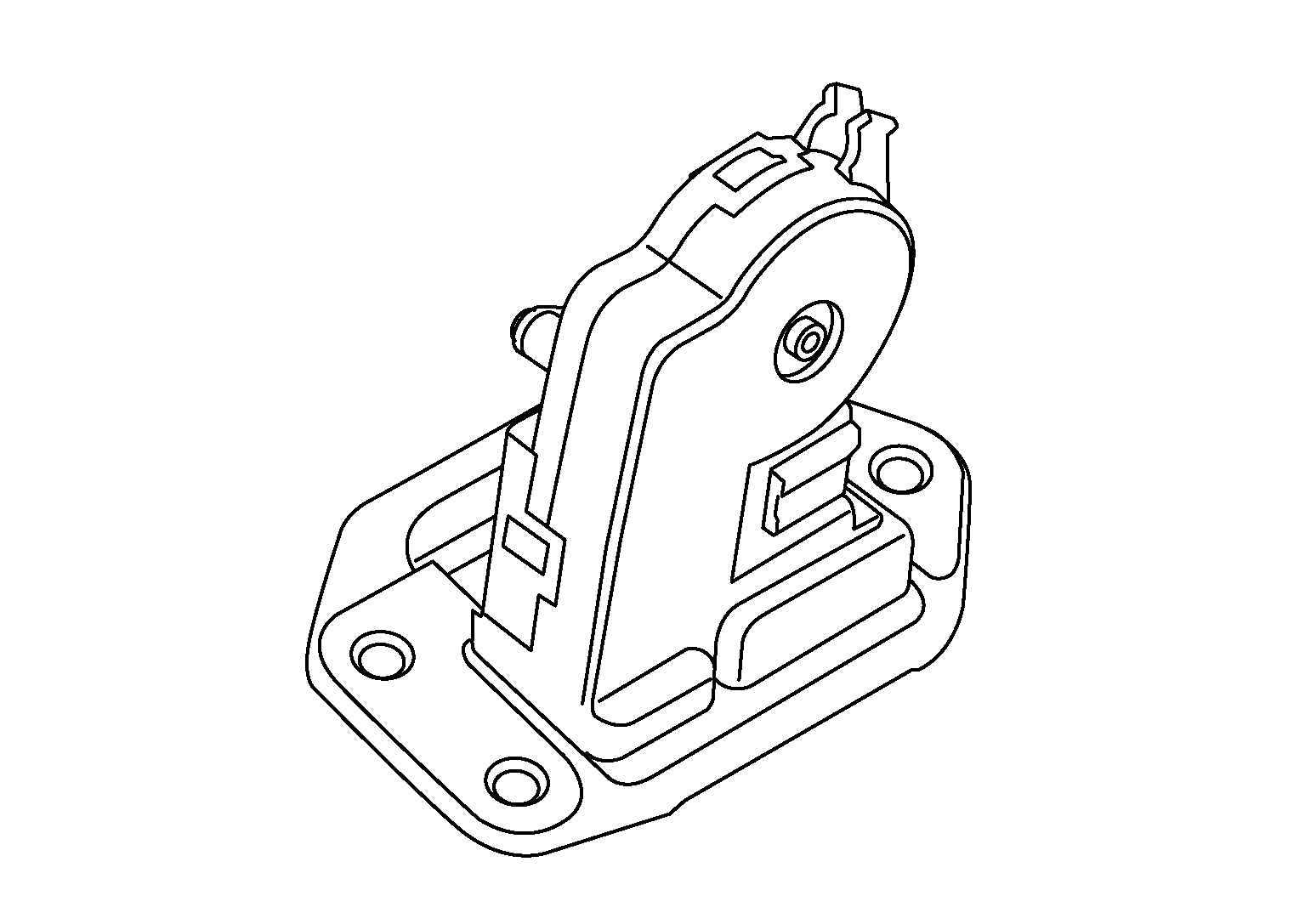

Back door lock assembly integrates door lock actuator and back door latch.
Courtesy of NISSAN NORTH AMERICA, INC.
Door lock actuator locks/unlocks the back door according to the door lock/unlock signal from BCM.
Courtesy of NISSAN NORTH AMERICA, INC.
