Exploded View

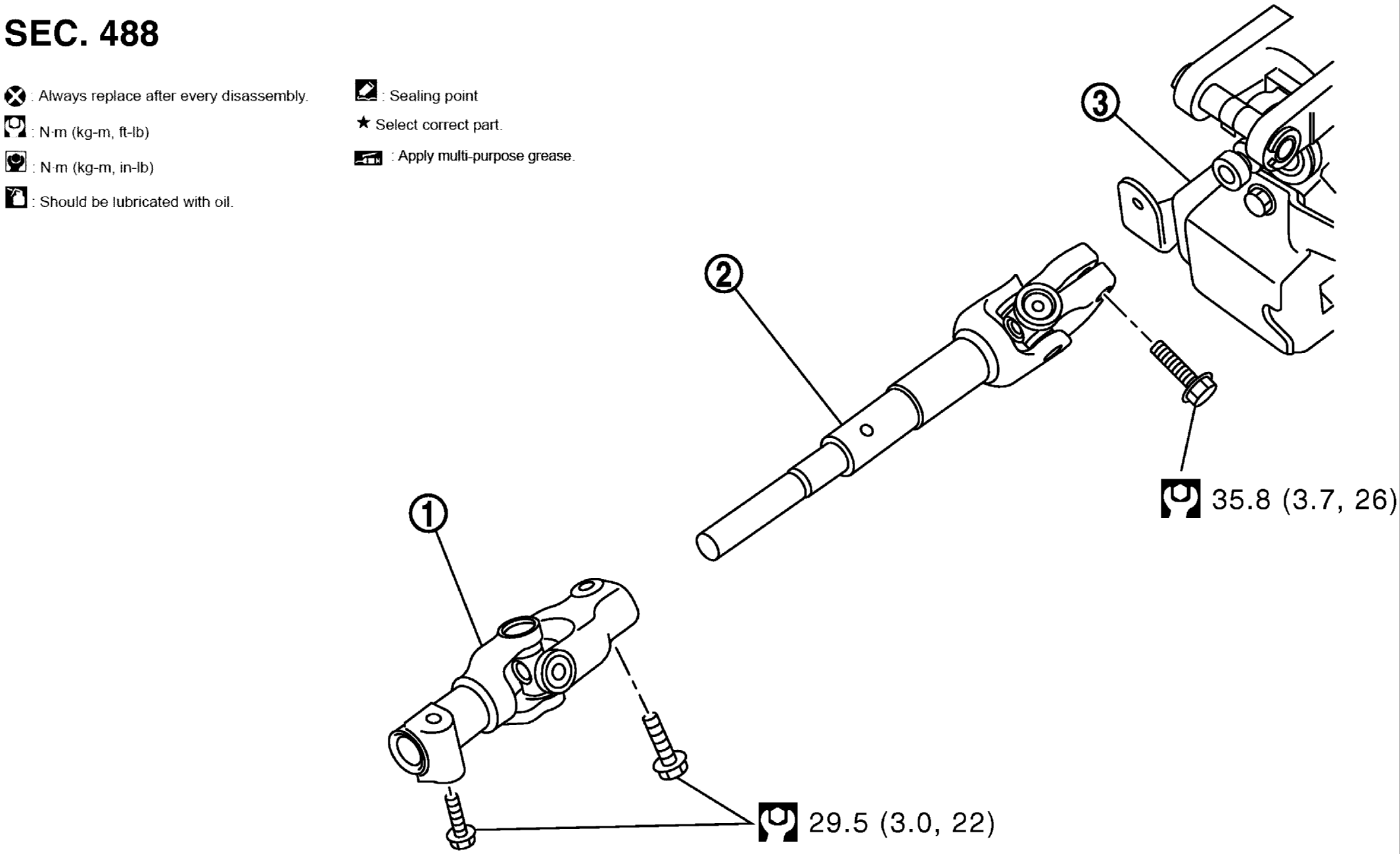

Fig 1: Steering Shaft With Torque Specifications
GNSJPGIA0112GB-112Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Steering intermediate shaft

3.

Steering column
