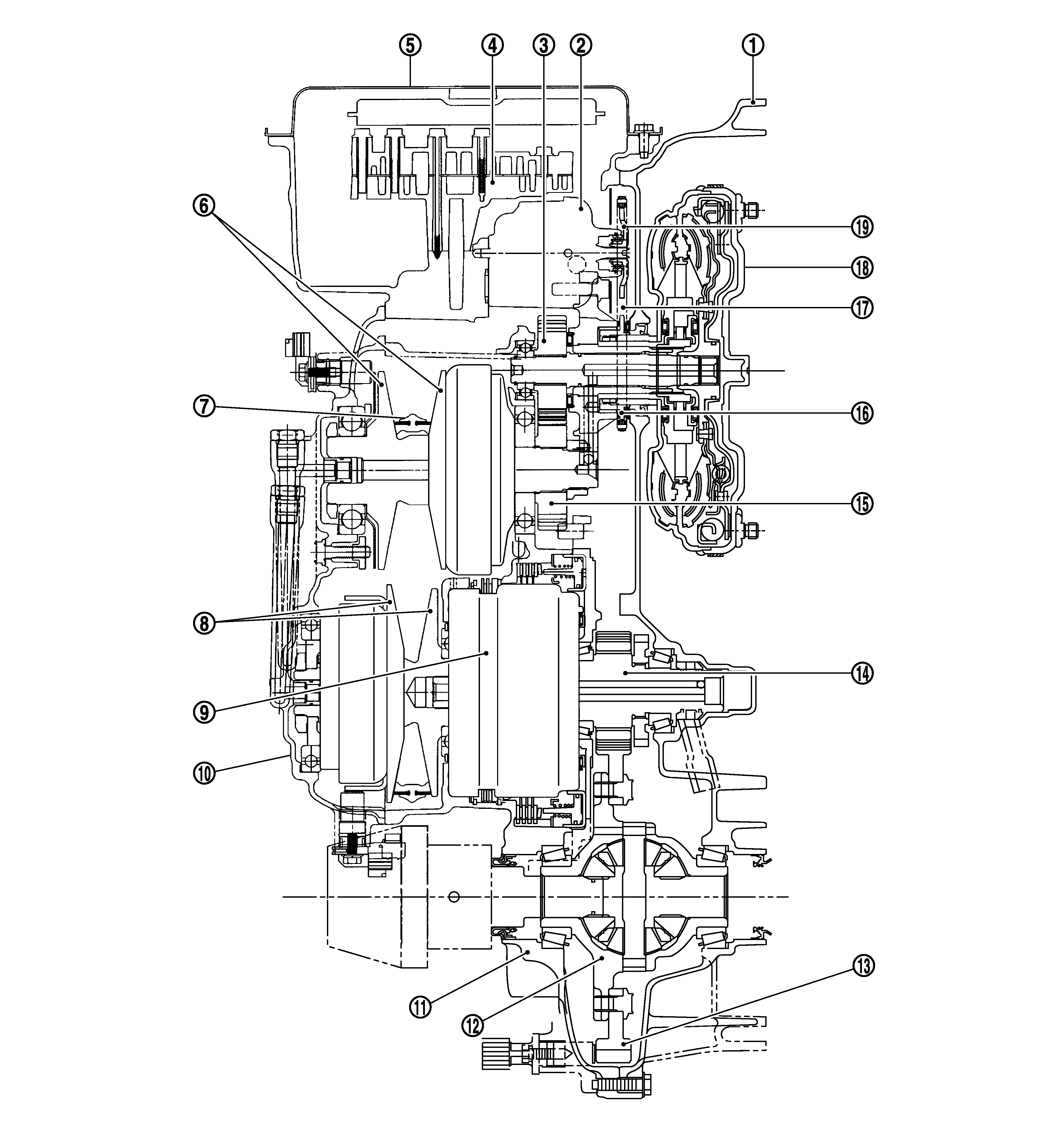

Cross-Sectional View
|
1. |
Converter housing |
2. |
Oil pump |
3. |
Counter drive gear |
|
4. |
Control valve |
5. |
Oil pan |
6. |
Primary pulley |
|
7. |
Steel belt |
8. |
Secondary pulley |
9. |
Planetary gear (auxiliary gearbox) |
|
10. |
Side cover |
11. |
Transaxle case |
12. |
Differential case |
|
13. |
Final gear |
14. |
Reduction gear |
15. |
Counter driven gear |
|
16. |
Drive sprocket |
17. |
Oil pump chain |
18. |
Torque converter |
|
19. |
Driven sprocket |
