Exploded View

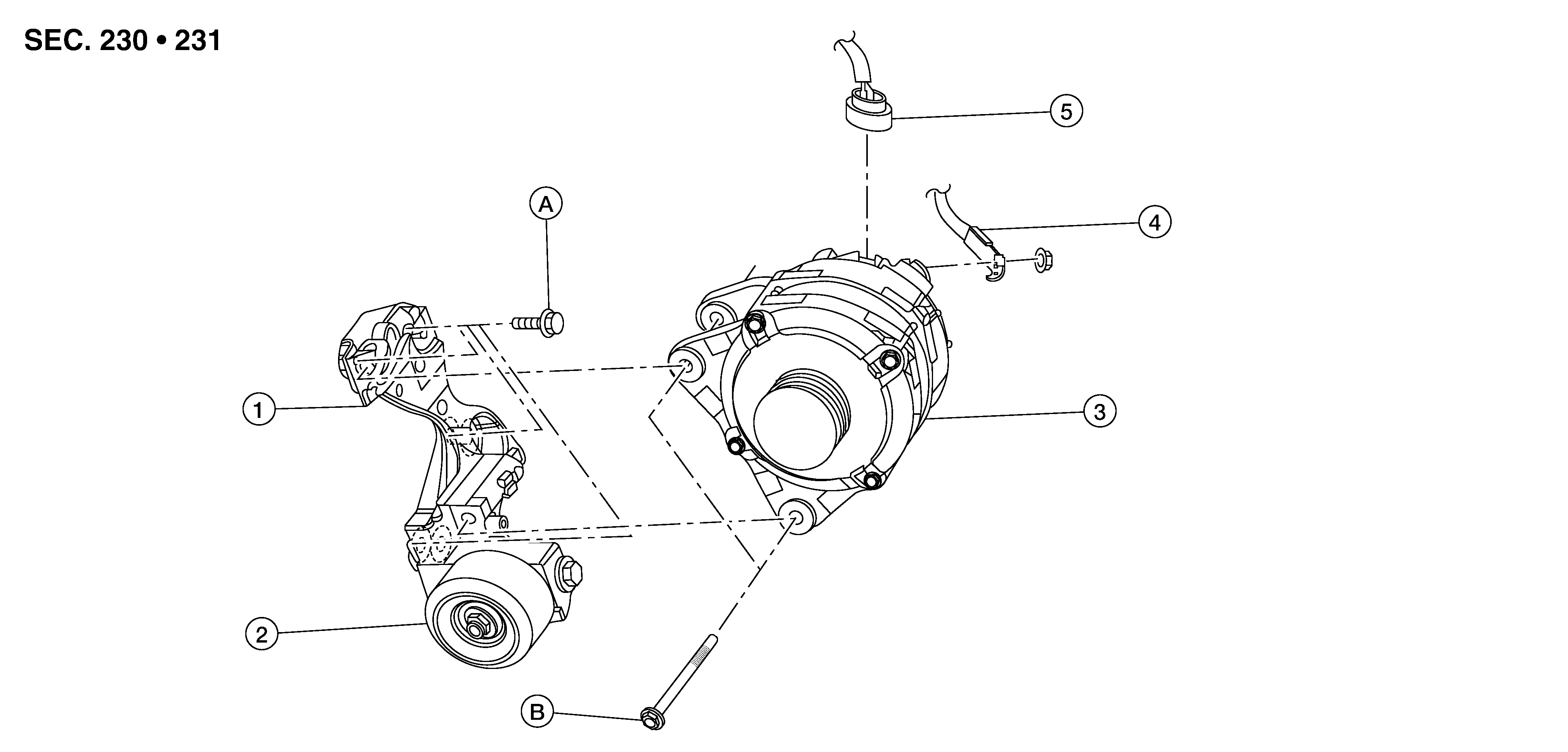

GNSAWMIA0056Z-056Courtesy of NISSAN NORTH AMERICA, INC.

1.

Generator bracket

2.

Tensioner Idler pulley

3.

Generator

4.

"B" terminal harness

5.

Generator harness connector

A.

Refer to Installation

B.

Refer to Installation
