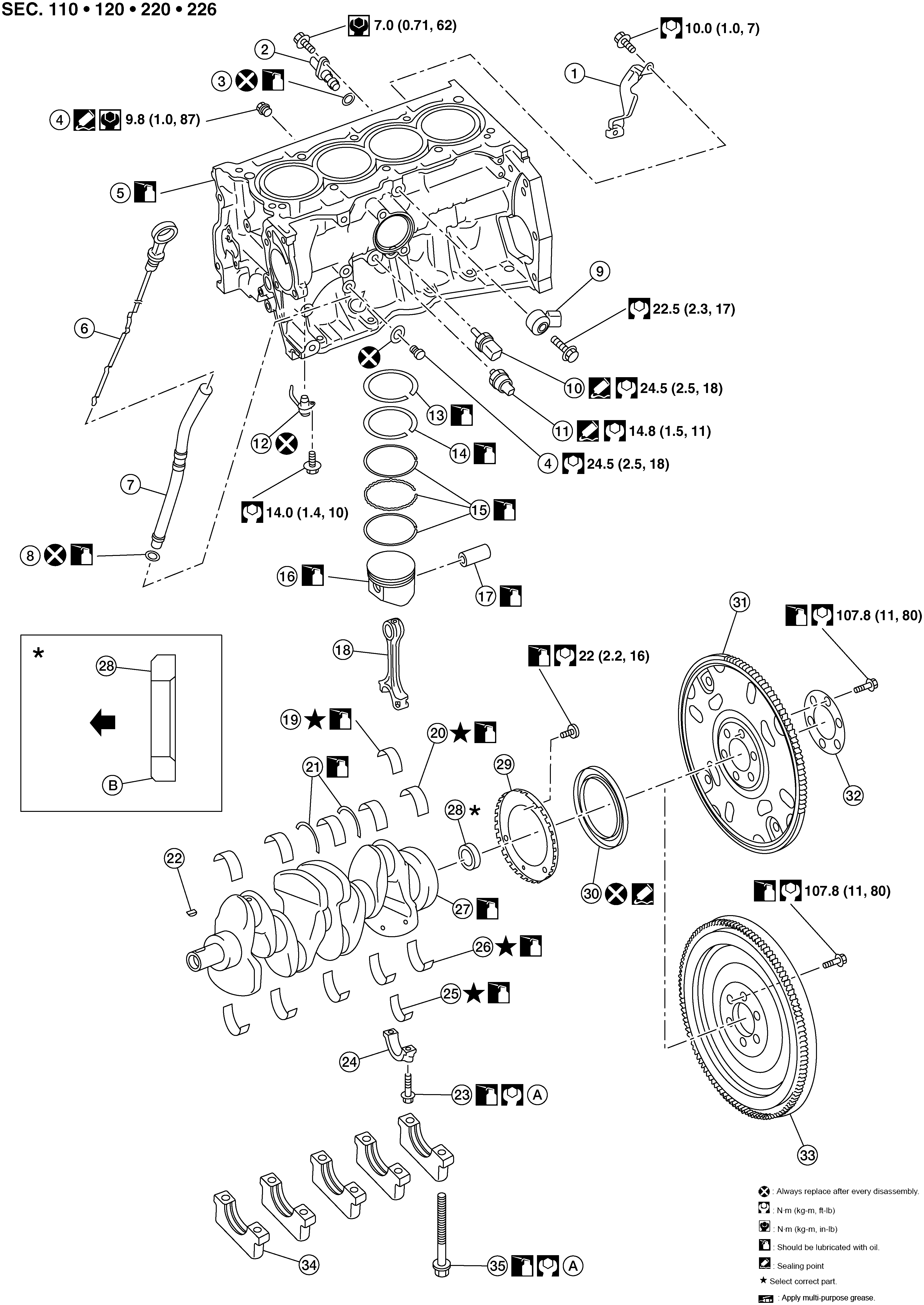

Exploded View
|
1. |
Crankshaft position sensor cover |
2. |
Crankshaft position sensor (POS) |
3. |
O-ring |
|
4. |
Drain plug |
5. |
Cylinder block |
6. |
Oil level gauge |
|
7. |
Oil level gauge guide |
8. |
O-ring |
9. |
Knock sensor |
|
10. |
Oil temperature sensor |
11. |
Oil pressure sensor |
12. |
Oil jet |
|
13. |
Top ring |
14. |
Second ring |
15. |
Oil rings |
|
16. |
Piston |
17. |
Piston pin |
18. |
Connecting rod |
|
19. |
Connecting rod bearing (upper) |
20. |
Main bearing (upper) |
21. |
Thrust bearing |
|
22. |
Crankshaft key |
23. |
Connecting rod bolt |
24. |
Connecting rod cap |
|
25. |
Connecting rod bearing (lower) |
26. |
Main bearing (lower) |
27. |
Crankshaft |
|
28. |
Pilot converter (CVT models) |
29. |
Signal plate |
30. |
Rear oil seal |
|
31. |
Drive plate (CVT models) |
32. |
Reinforce plate (CVT models) |
33. |
Flywheel (M/T models) |
|
34. |
Main bearing cap |
35. |
Main bearing cap bolt |
A. |
Refer to ASSEMBLY |
|
B. |
Chamfered |
|
Crankshaft side |
