Removal And Installation: Removal

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to DESCRIPTION .

  1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to REMOVAL AND INSTALLATION (BATTERY) .
  2. Remove instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .

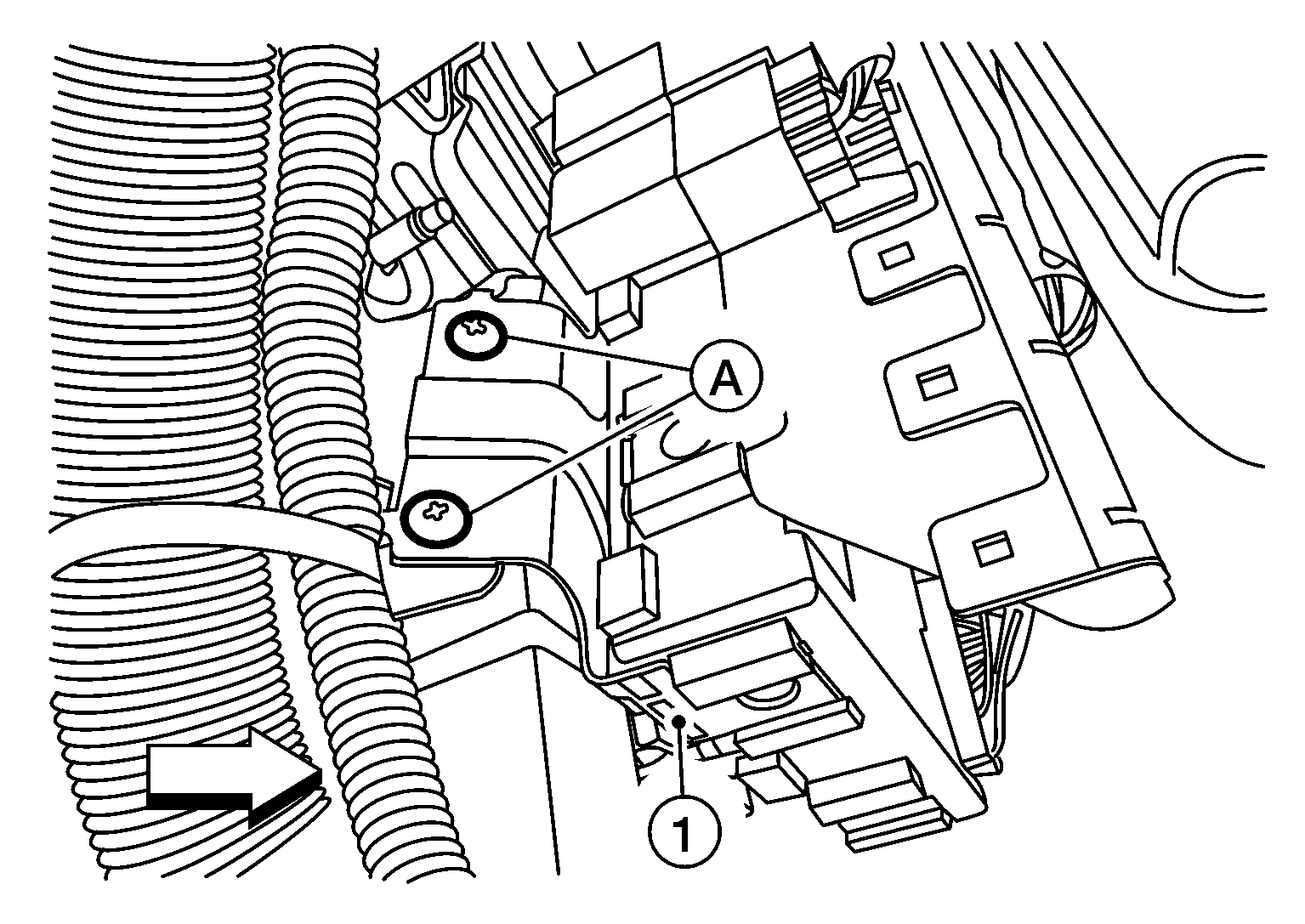

  3. Remove screws (A) and remove the BCM (1) from the steering member and position aside.
    G09604998Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

  4. Disconnect the harness connectors from the BCM.
  5. Remove relays from relay bracket.
  6. Remove relay bracket from BCM to transfer to new BCM.
