Consult/GST Checking System: Description

NOTE: This vehicle is diagnosed using the CONSULT-III plus.

When CONSULT is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

Courtesy of NISSAN NORTH AMERICA, INC.

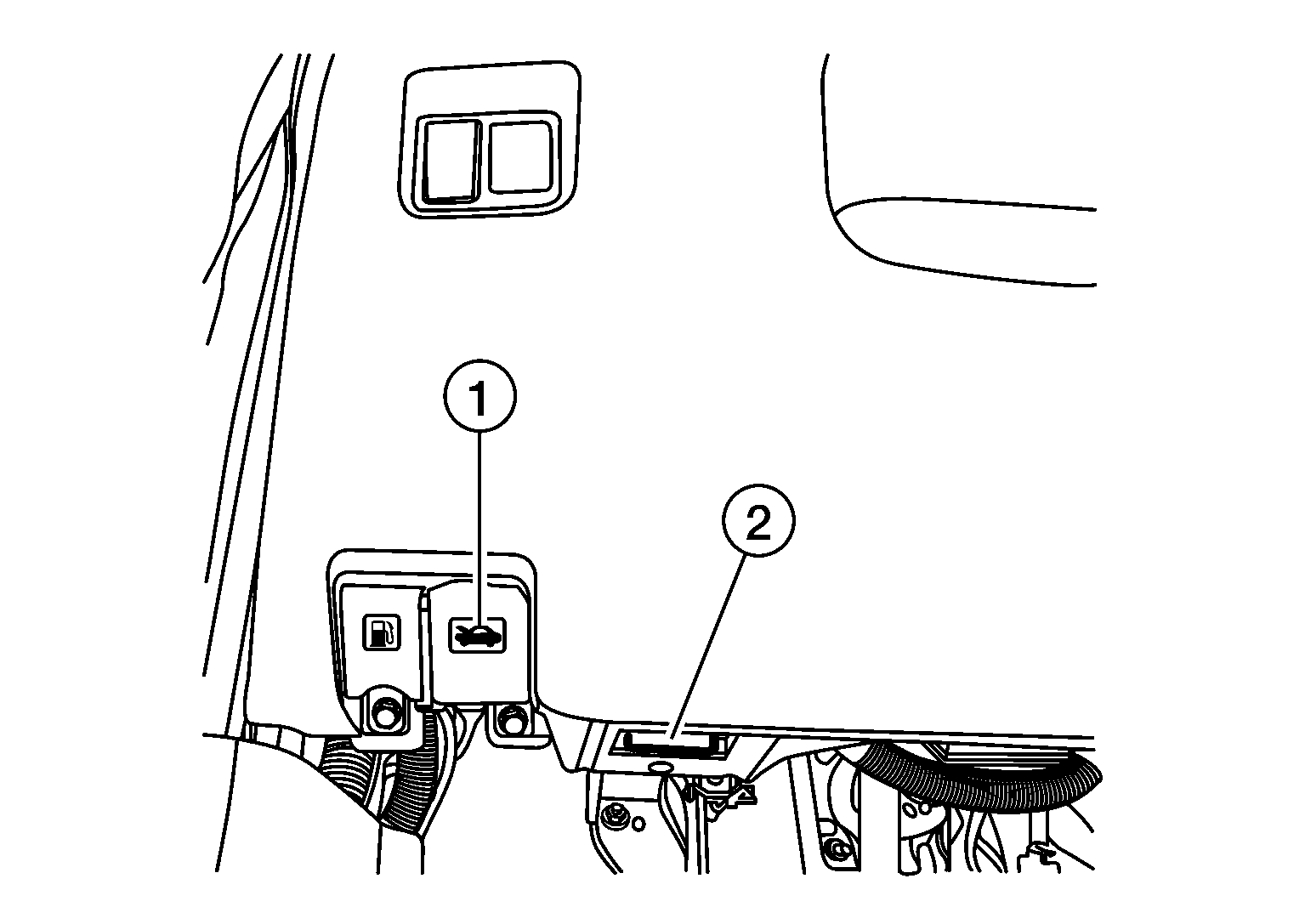

1	: Hood release handle
2	: Data link connector

Refer to "CONSULT-III plus Operation Manual" for more information.
