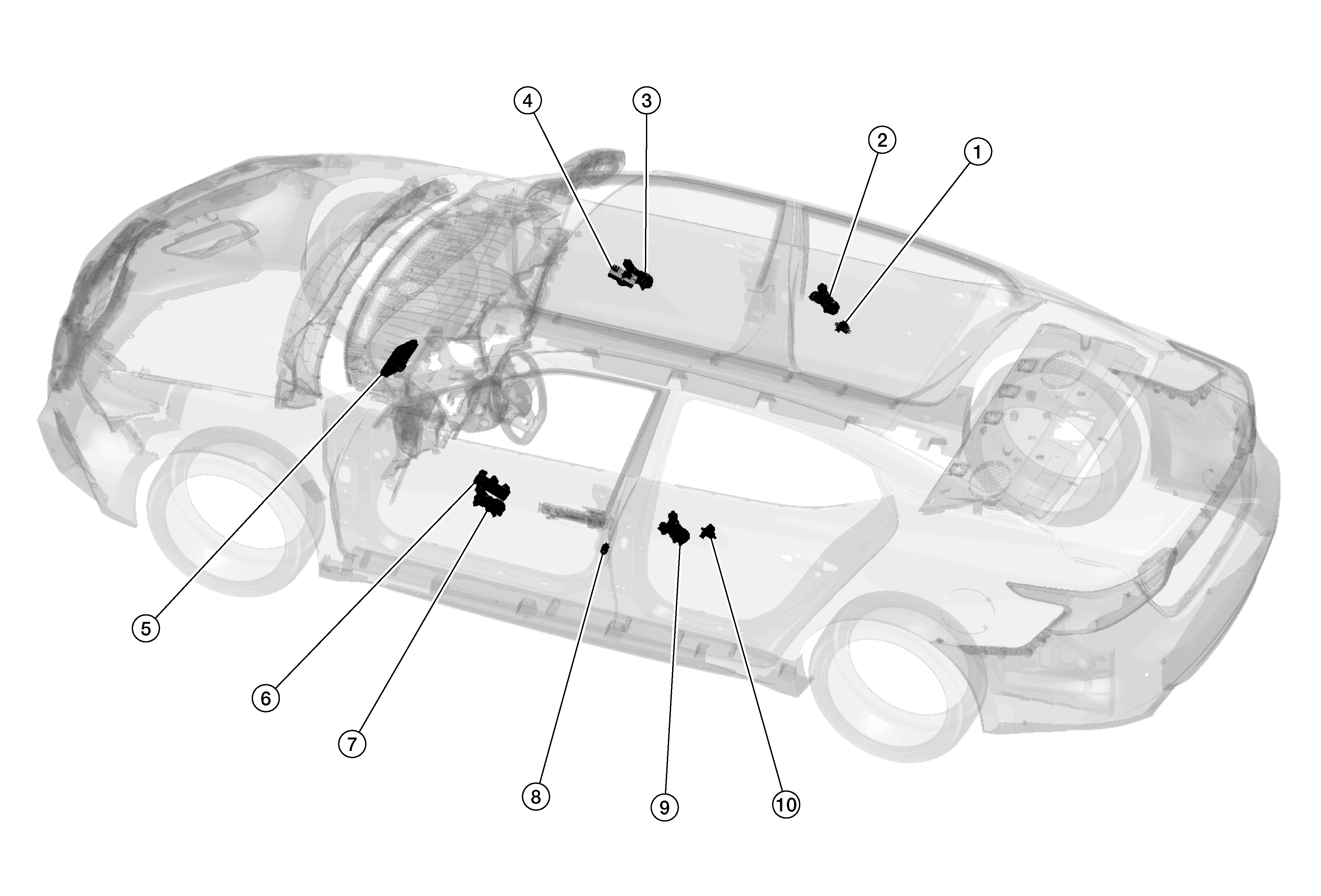

Component Parts Location

No.

Part

Function

1.

Rear power window switch RH

Refer to Rear Power Window Switch .

2.

Rear power window motor RH

Refer to Power Window Motor .

3.

Front power window motor RH

Refer to Power Window Motor .

4.

Power window and door lock/unlock switch RH

Refer to Power Window and Door Lock/Unlock Switch RH .

5.

BCM

• Supplies power to the window switches.
• Controls retained power.
• Refer to Component Parts Location for detailed installation location.

6.

Main power window and door lock/unlock switch

Refer to Main Power Window and Door Lock/Unlock Switch .

7.

Front power window motor LH

Refer to Power Window Motor .

8.

Front door switch LH

• Detects door open/close condition and transmits to BCM.
• Refer to Front Door Switch .

9.

Rear power window motor LH

Refer to Power Window Motor .

10.

Rear power window switch LH

Refer to Rear Power Window Switch .
