Removal and Installation: Removal

  1. Remove front air duct. Refer to Removal and Installation .
  2. Remove battery. Refer to Removal and Installation (Battery) .
  3. Disconnect the harness connectors from the ECM. Refer to Harness Connector .

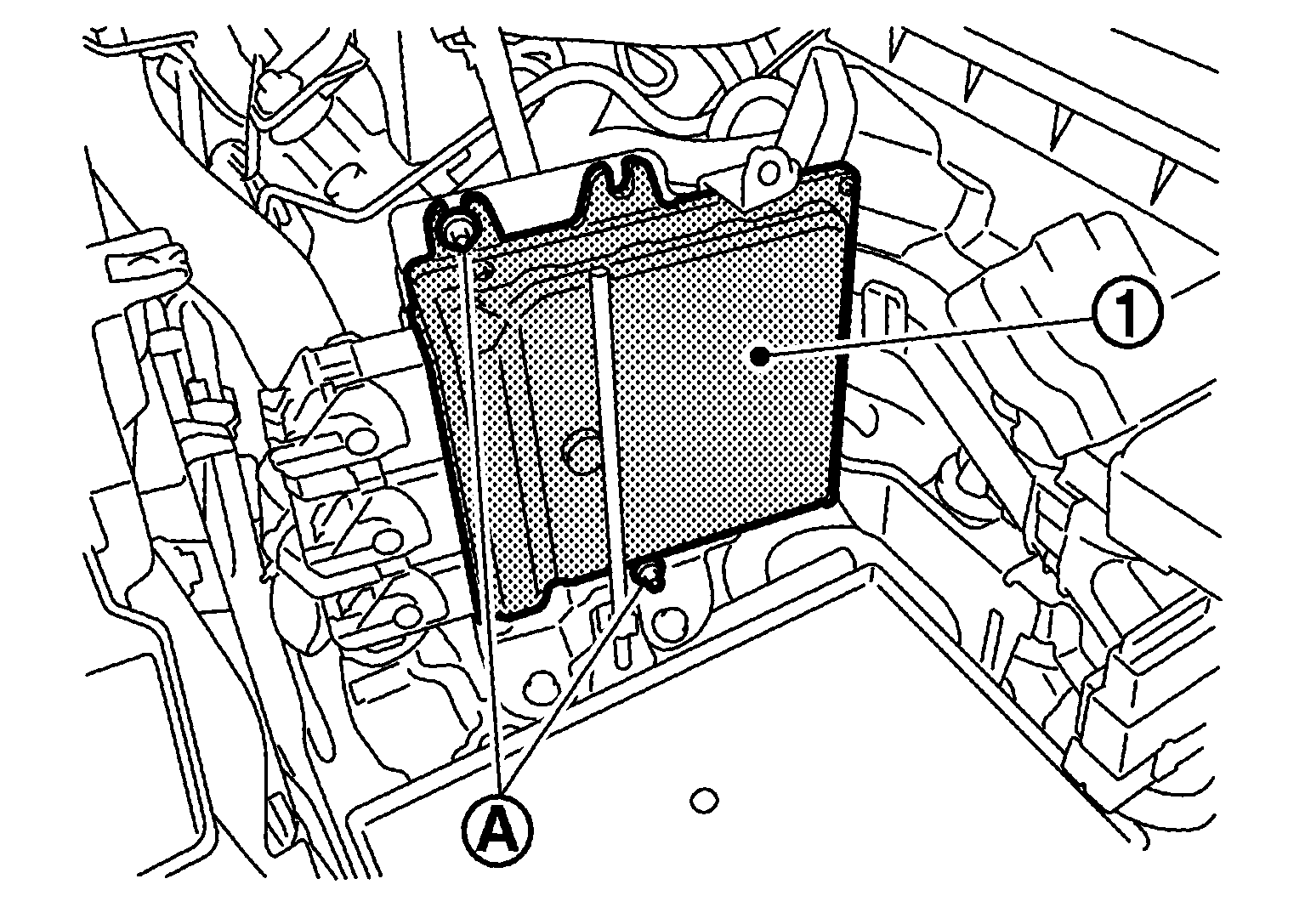

  4. Remove ECM nuts (A), and then remove ECM (1).
    G07051302Courtesy of NISSAN NORTH AMERICA, INC.
