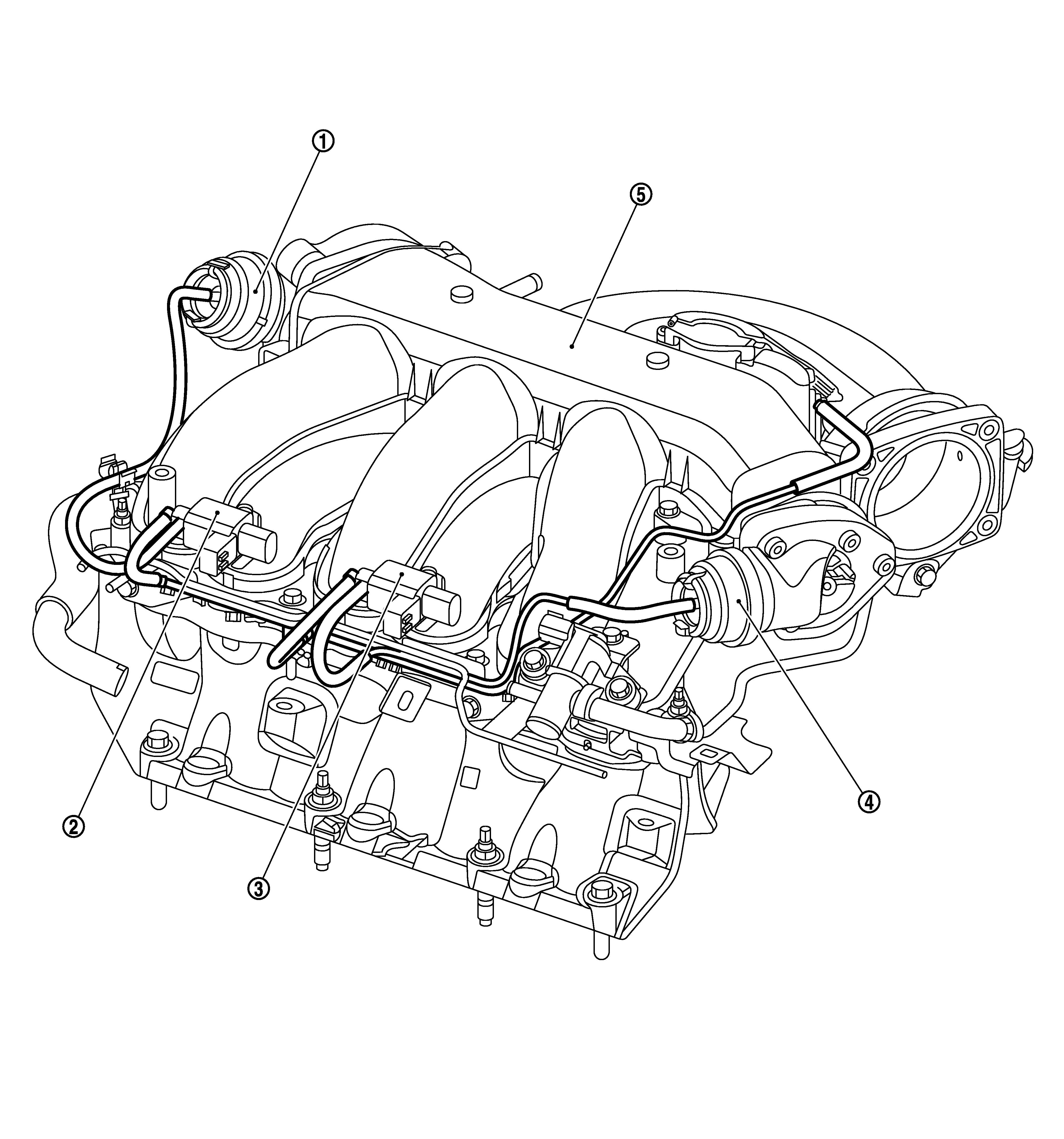

Vacuum Hose Drawing

GNSJMBIA0172Z-172Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Power valve actuator 1

SYMBOL

VIAS control solenoid valve 1

SYMBOL

VIAS control solenoid valve 2

SYMBOL

Power valve actuator 2

SYMBOL

Intake manifold collector
