Component Location

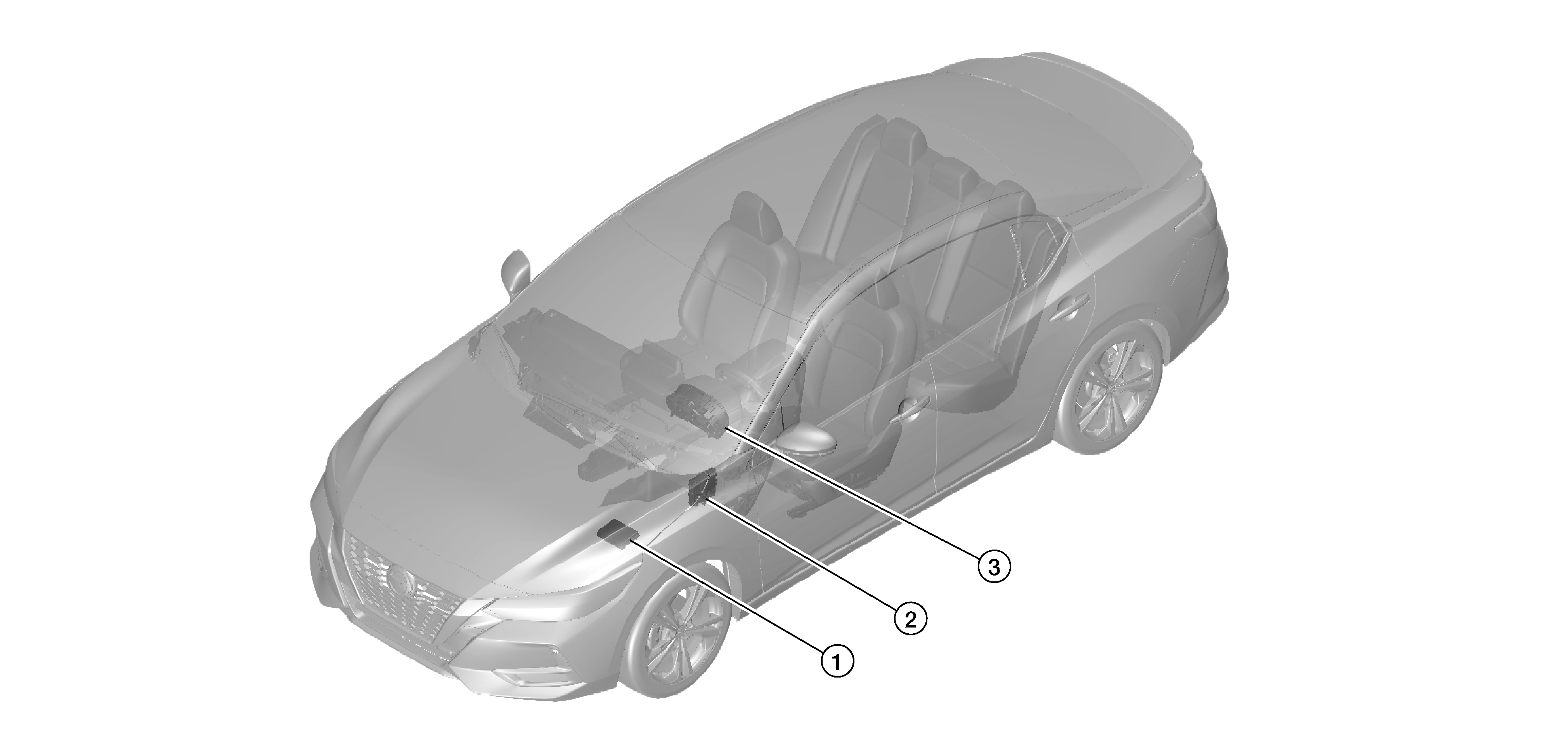

GNSALMIA0343Z-343Courtesy of NISSAN NORTH AMERICA, INC.


No.

Component

Description

1.

IPDM E/R

Refer to System Description .

2.

BCM

Refer to System Description .

3.

Combination meter

Refer to System Description (type A meter) or System Description (type B meter).
