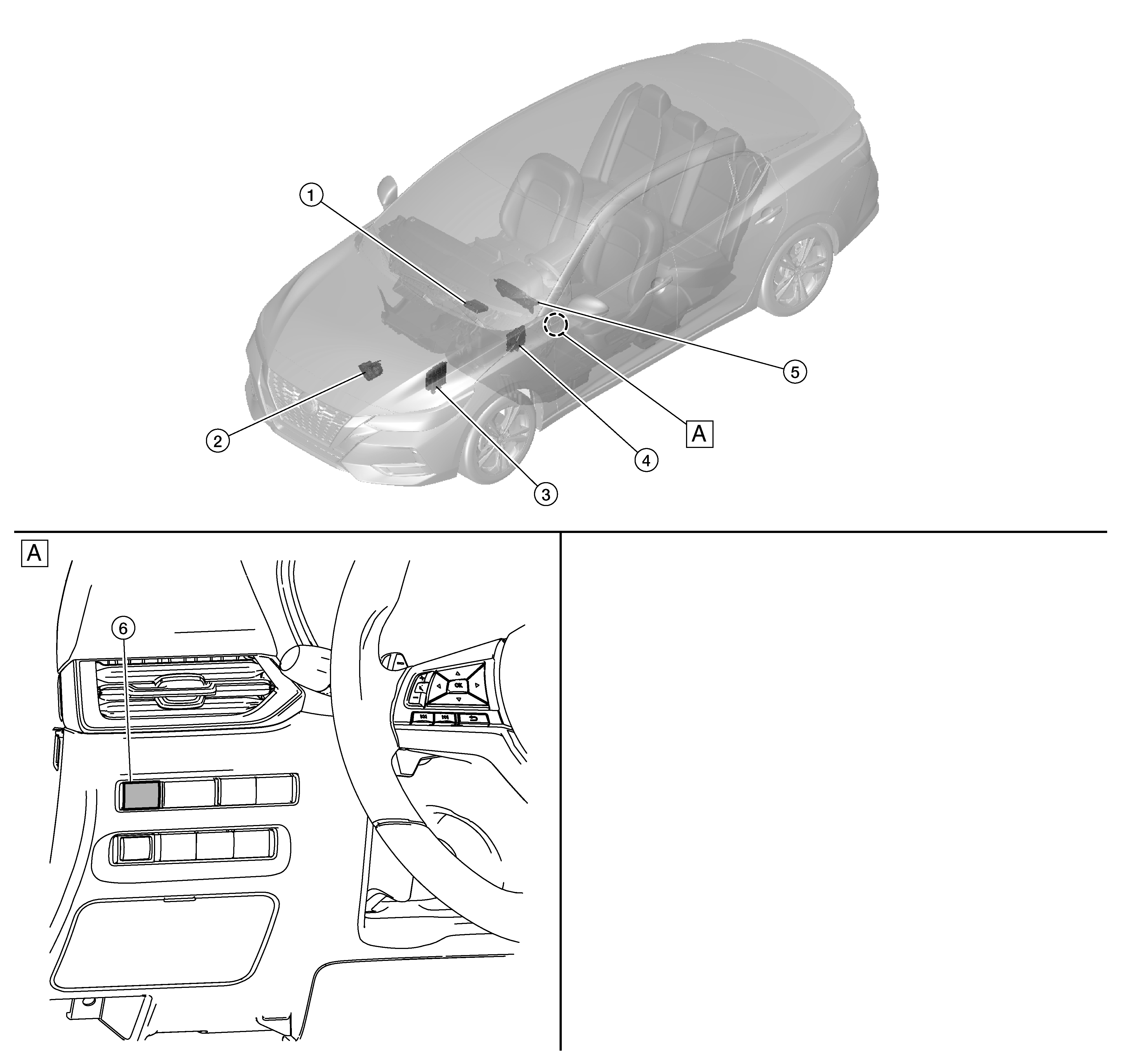

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Instrument lower panel LH

No.	Component	Function
1.	A/C auto amp.	The A/C auto amp. receives the ECO mode signal from the BCM via CAN communication. For detailed component location, refer to Component Location .
2.	Electric throttle control actuator	Refer to Component Description .
3.	ECM	The ECM receives the ECO mode signal from the BCM via CAN communication. For detailed component location, refer to Component Location .
4.	BCM	The BCM transmits the ECO mode indicator signal to the combination meter via CAN communication. The BCM transmits the ECO mode signal to the ECM and A/C auto amp. via CAN communication. For detailed component location, refer to Component Location
5.	Combination meter	The combination meter receives the ECO mode indicator signal via CAN communication from the BCM. For detailed component location. Refer to Component Location (with Type A meter) or Component Location (with Type B meter).
6.	ECO mode switch	Refer to Component Description .
