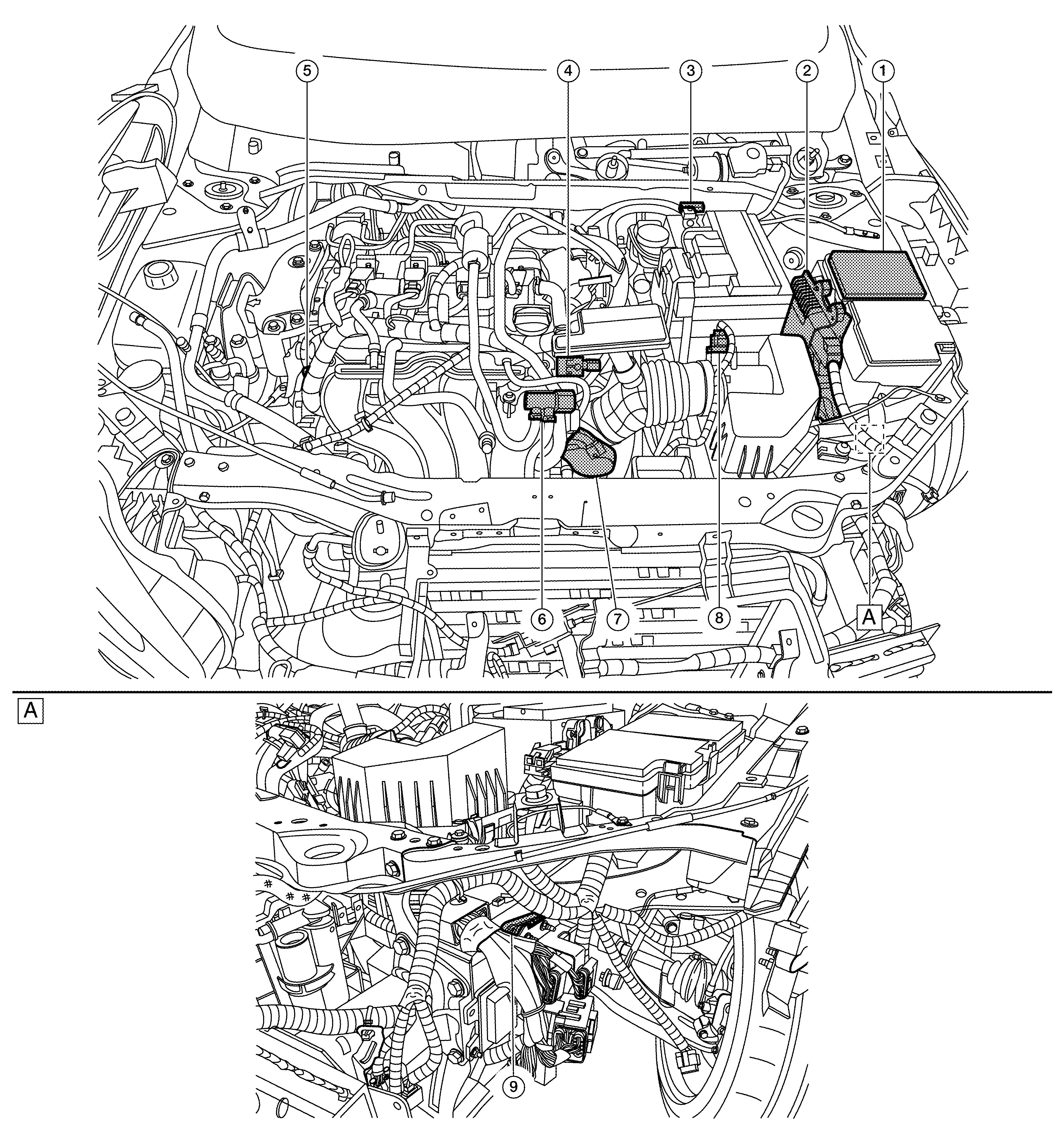

Engine Room Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

Area behind left head lamp

No.	Component	Function
	IPDM E/R	IPDM E/R control the internal relays and the actuators. And when CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. Refer to System Description . Refer to Fail-safe . Refer to System Description .
	ECM	Component Description
	Battery current sensor^*
	Intake manifold runner control valve motor	Component Description .
	Intake manifold runner control valve position sensor	Component Description
	EVAP canister purge volume control solenoid valve	Component Description
	Electric throttle control actuator (with built in throttle position sensor and throttle control motor)	Component Description
	Mass air flow sensor (with intake air temperature sensor)	Component Description
	Electric intake valve timing control module	Component Description

*: Not applicable
