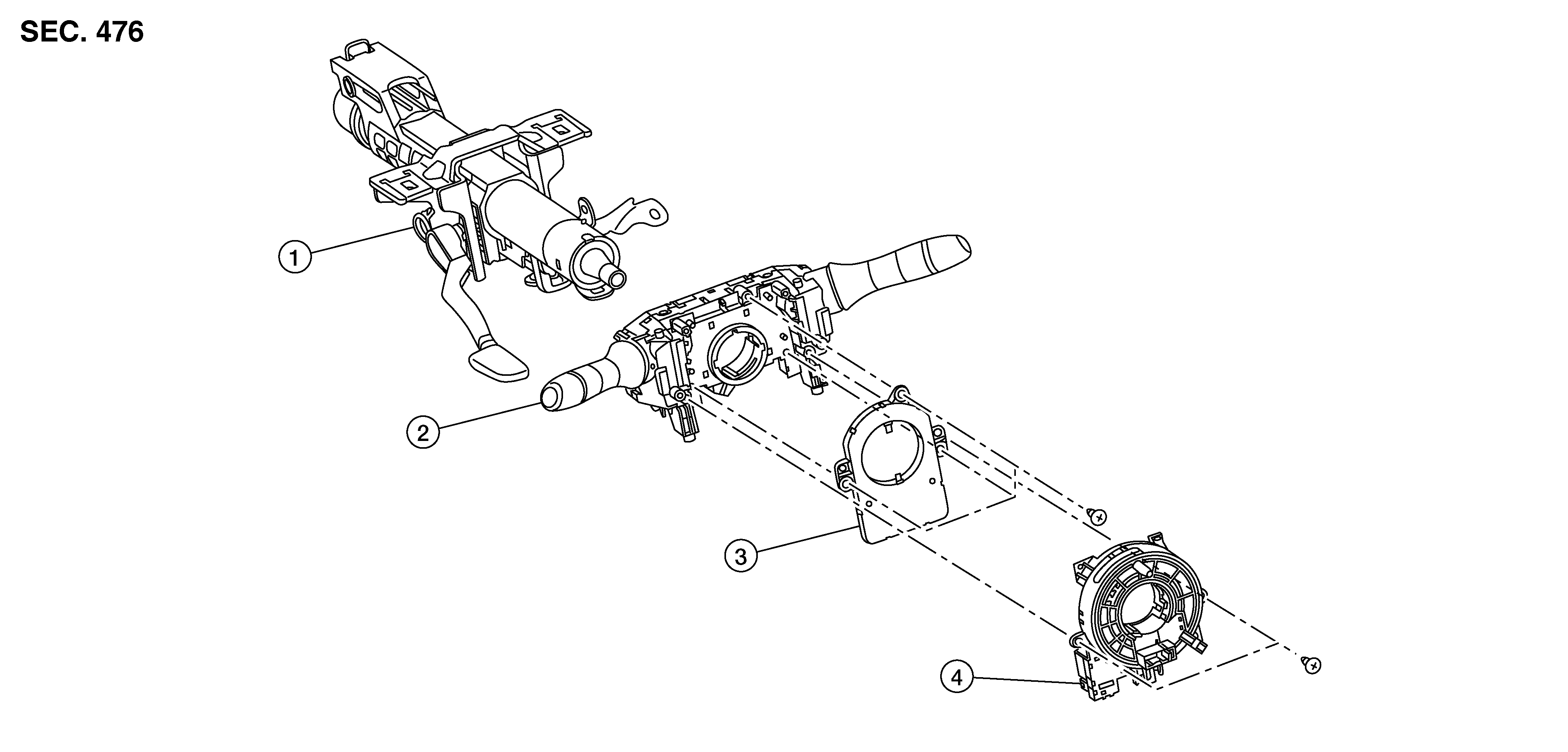

COMBINATION SWITCH : Exploded View

GNSDB123114Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Combination switch

3.

Chassis control module (with built in steering angle sensor)

4.

Spiral cable
