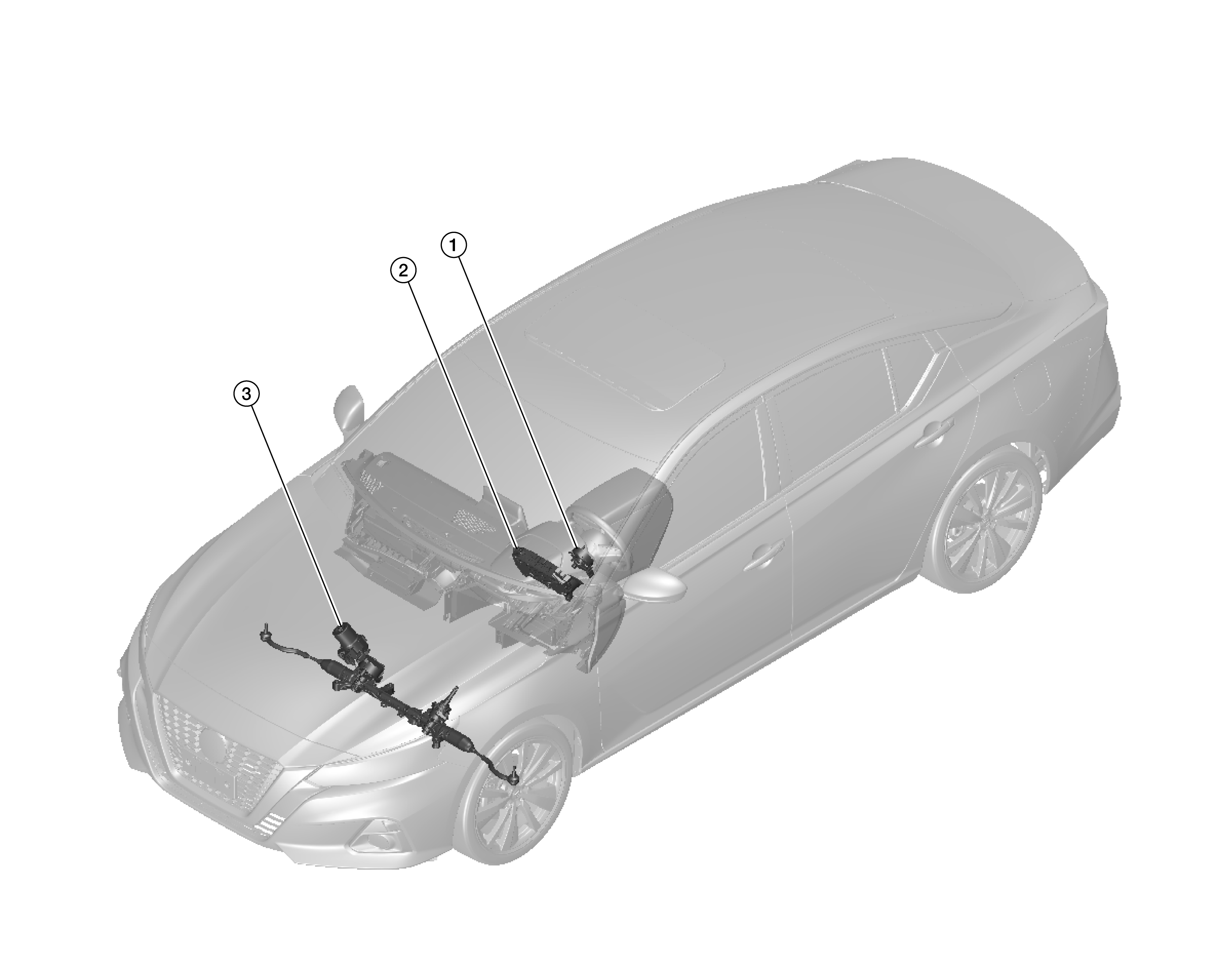

Component Location

No.

Component

Function

1.

Chassis control module (with built in steering angle sensor)

(With automatic brake hold)

• Transmits the steering angle sensor signal to EPS control unit via CAN communication.

Refer to Component Location for detailed component location.

Steering angle sensor

(Without automatic brake hold)

• Transmits the steering angle sensor signal to EPS control unit via CAN communication.

Refer to Component Location for detailed component location.

2.

Combination meter

(Power steering warning lamp)

• Transmits the vehicle speed signal (Meter) to EPS control unit via CAN communication.

Refer to Component Location (Type A) or Component Location (Type B) for detailed component location.

• Turns ON the power steering warning lamp according to the signal from the EPS control unit via CAN communication.

For power steering warning lamp, refer to Warning / Indicator / Chime List .

3.

EPS control unit

Refer to Component Description .
