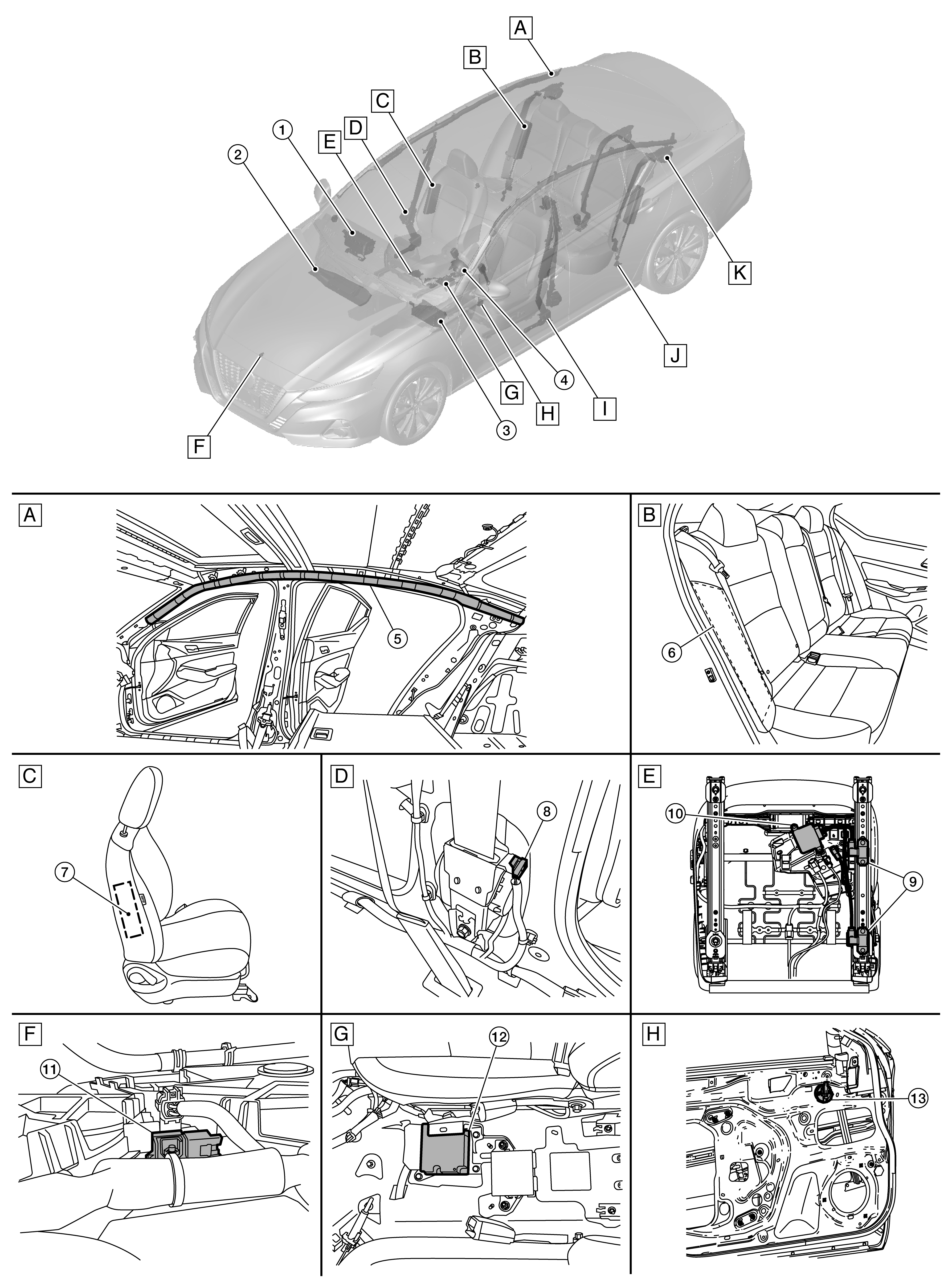

Component Location
|
A. |
Right side of roof line (view with headliner removed) |
B. |
RH rear passenger seat |
C. |
RH front passenger seat |
|
D. |
Right of front passenger seat (view with lower B-pillar finisher removed) |
E. |
Bottom of front passenger seat (view with front passenger seat removed) |
F. |
Radiator core support assembly |
|
G. |
Between driver and front passenger seat (view with center console removed) |
H. |
Driver door area (view with driver's door finisher removed) |
I. |

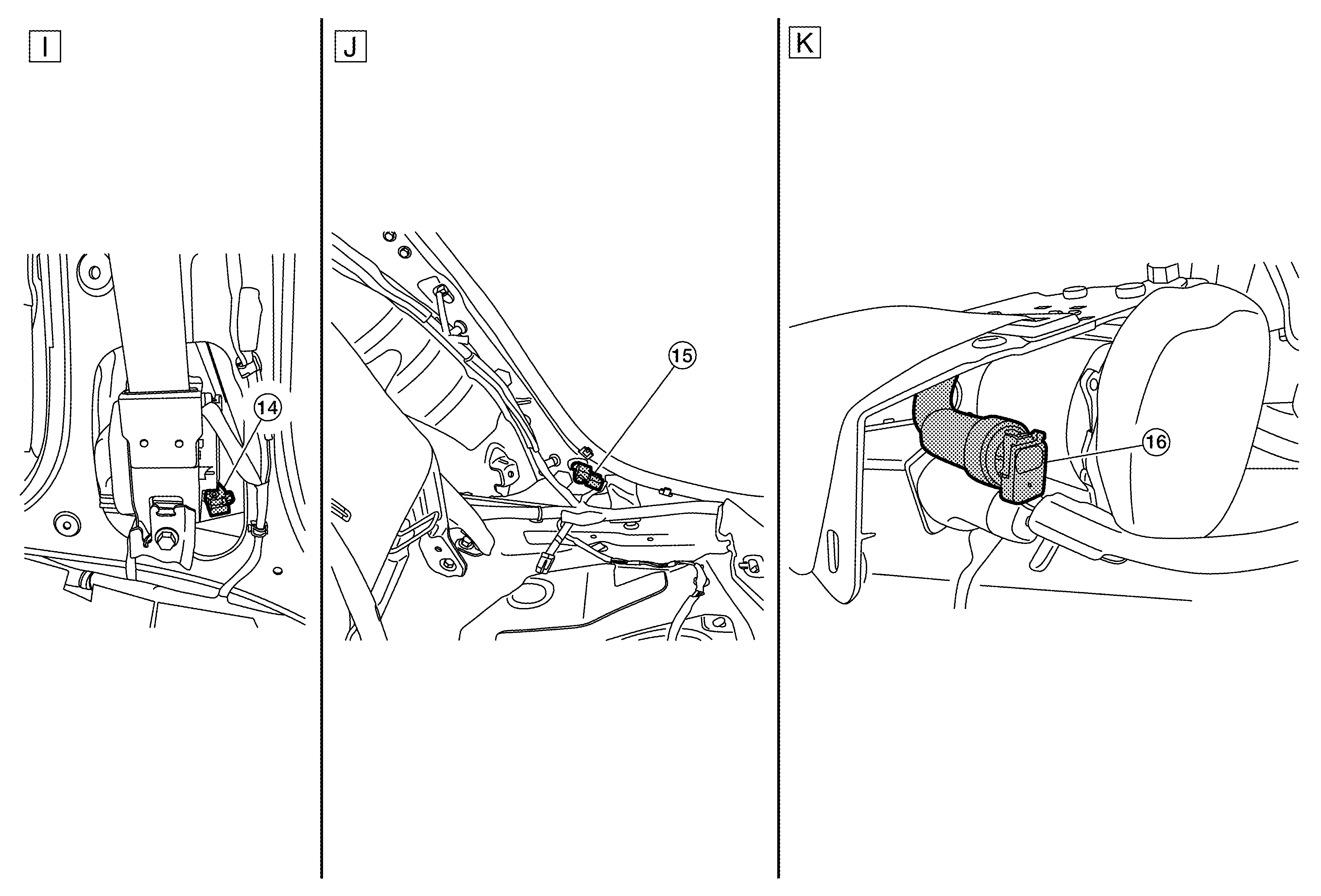

Left of driver seat (view with lower B-pillar finisher removed) |
|
J. |
Left of rear passenger seat (view with lower C-pillar finisher removed) |
K. |
Left of luggage room (view with LH luggage side lower finisher removed) |
||
|
No. |
Component |
Function |
|
1. |
Front passenger air bag module |
Refer to Component Description . |
|
2. |
Right knee air bag module |
Refer to Component Description . |
|
3. |
Left knee air bag module |
Refer to Component Description . |
|
4. |
Driver air bag module |
Refer to Component Description . |
|
5. |
RH side curtain air bag module (LH similar) |
Refer to Component Description . |
|
6. |
Rear RH side air bag module (LH similar) |
Refer to Component Description . |
|
7. |
Front RH side air bag module (LH similar) |
Refer to Component Description . |
|
8. |
Front RH seat belt pre-tensioner (LH similar) |
Refer to Component Description . |
|
9. |
Occupant classification system sensors |
Refer to System Description . |
|
10. |
Occupant classification system control unit |
Refer to System Description . |
|
11. |
Crash zone sensor |
Refer to Component Description . |
|
12. |
Air bag diagnosis sensor unit |
The air bag diagnosis sensor unit is located under the center console assembly. The air bag diagnosis sensor unit receives signals from multiple SRS sensors and controls the deployment of the air bags. The deployment of the air bags depends on the type and severity of the collision. The air bag diagnosis sensor unit has self-diagnosis capability through the use of CONSULT. |
|
13. |
Front door satellite sensor LH (RH similar) |
Refer to Component Description . |
|
14. |
Front side air bag satellite sensor LH (RH similar) |
Refer to Component Description . |
|
15. |
Rear side air bag satellite sensor LH (RH similar) |
Refer to Component Description . |
|
16. |
Rear LH seat belt pre-tensioner (RH similar) |
Refer to Component Description . |
