Component Location - Crew Cab

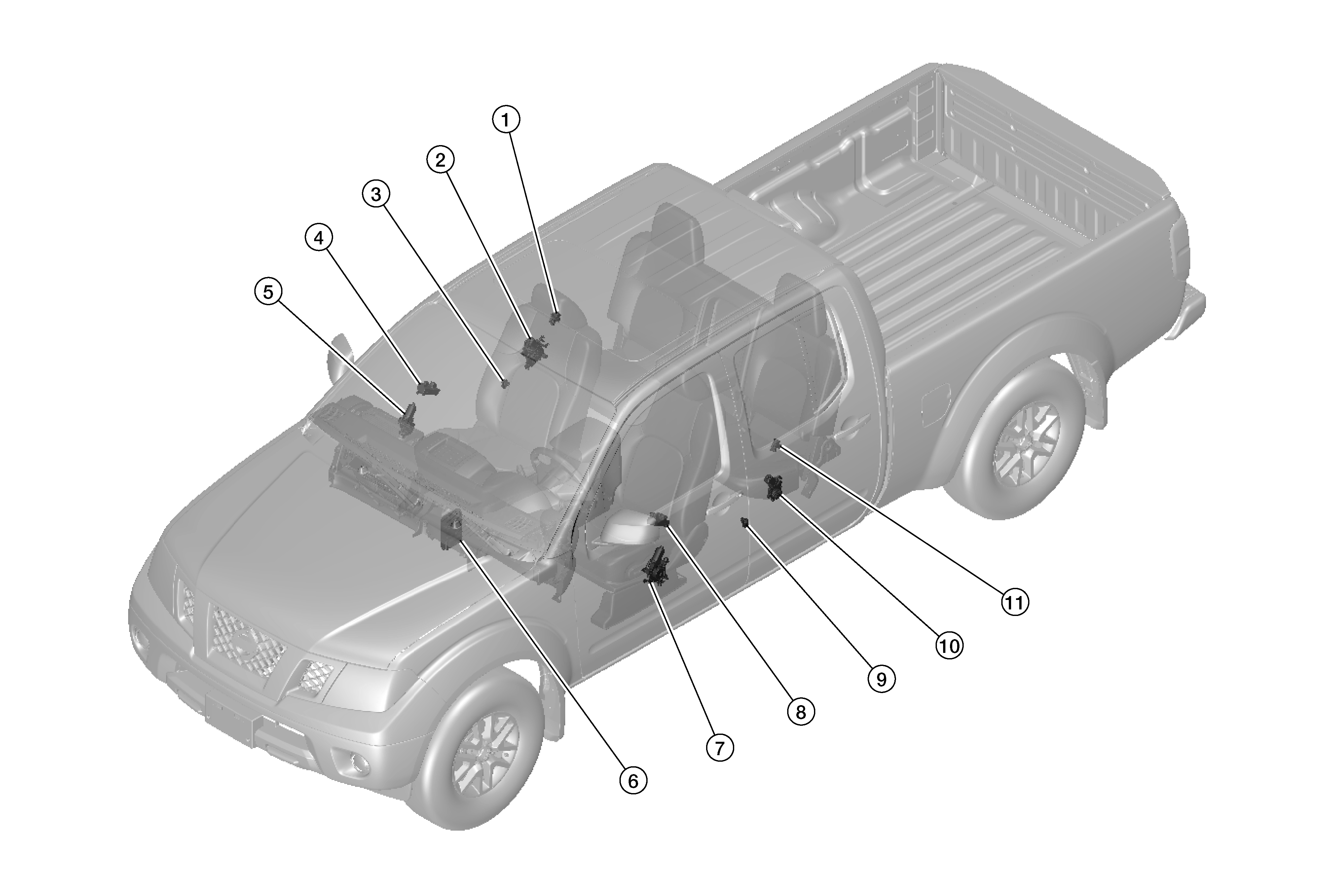

GNSAWKIA0728Z-728Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

1.

Rear power window switch RH

Refer to Door Switch .

2.

Rear power window motor RH

Refer to Rear Power Window Motor .

3.

Front power window switch RH

Refer to Door Switch .

4.

Power window and door lock/unlock switch RH

Refer to Power Window And Door Lock/Unlock Switch RH .

5.

Front power window motor RH

Refer to Front Power Window Motor .

6.

BCM

  • Supplies power to the window switches.
  • Controls retained power.

Refer to Component Location for detailed component location.

7.

Front power window motor LH

Refer to Front Power Window Motor .

8.

Main power window and door lock/unlock switch

Refer to Main Power Window and Door Lock/unlock Switch .

9.

Front power window switch LH

Refer to Door Switch .

10.

Rear power window motor LH

Refer to Rear Power Window Motor .

11.

Rear power window switch LH

Refer to Door Switch .
