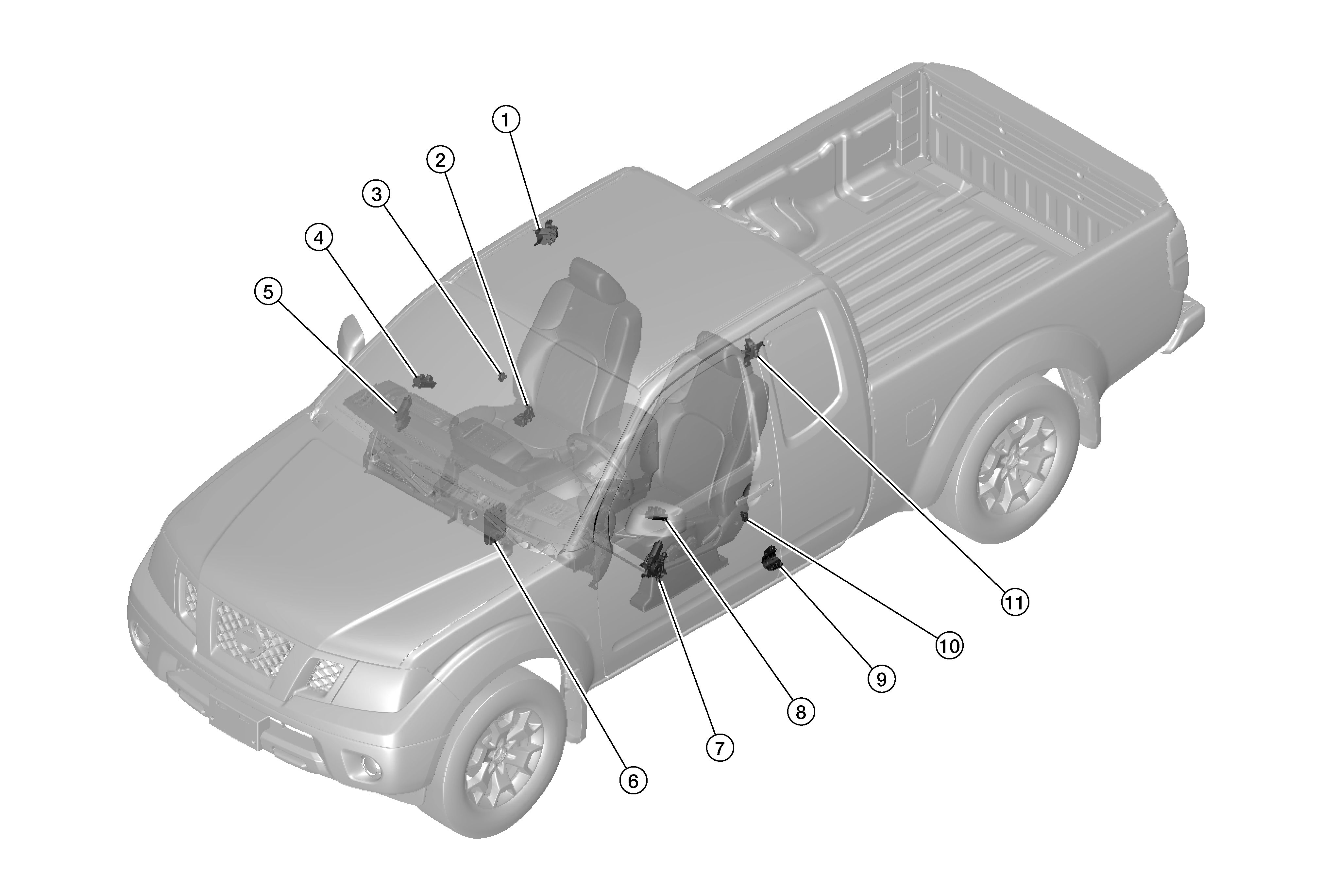

Component Location - King Cab

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Rear door switch upper RH	Refer to Rear Door Switch Upper RH .
2.	Rear door switch lower RH	Refer to Rear Door Switch Lower RH .
3.	Front door switch RH	Refer to Door Switch .
4.	Power window and door lock/unlock switch RH	Refer to Power Window And Door Lock/Unlock Switch RH .
5.	Front power window motor RH	Refer to Front Power Window Motor .
6.	BCM	Supplies power to the window switches. Controls retained power. Refer to Component Location for detailed component location.
7.	Front power window motor LH	Refer to Front Power Window Motor .
8.	Main power window and door lock/unlock switch	Refer to Main Power Window and Door Lock/unlock Switch .
9.	Rear door switch lower LH	Refer to Rear Door Switch Lower LH .
10.	Front door switch LH	Refer to Door Switch .
11.	Rear door switch upper LH	Refer to Rear Door Switch Upper LH .
