Exploded View

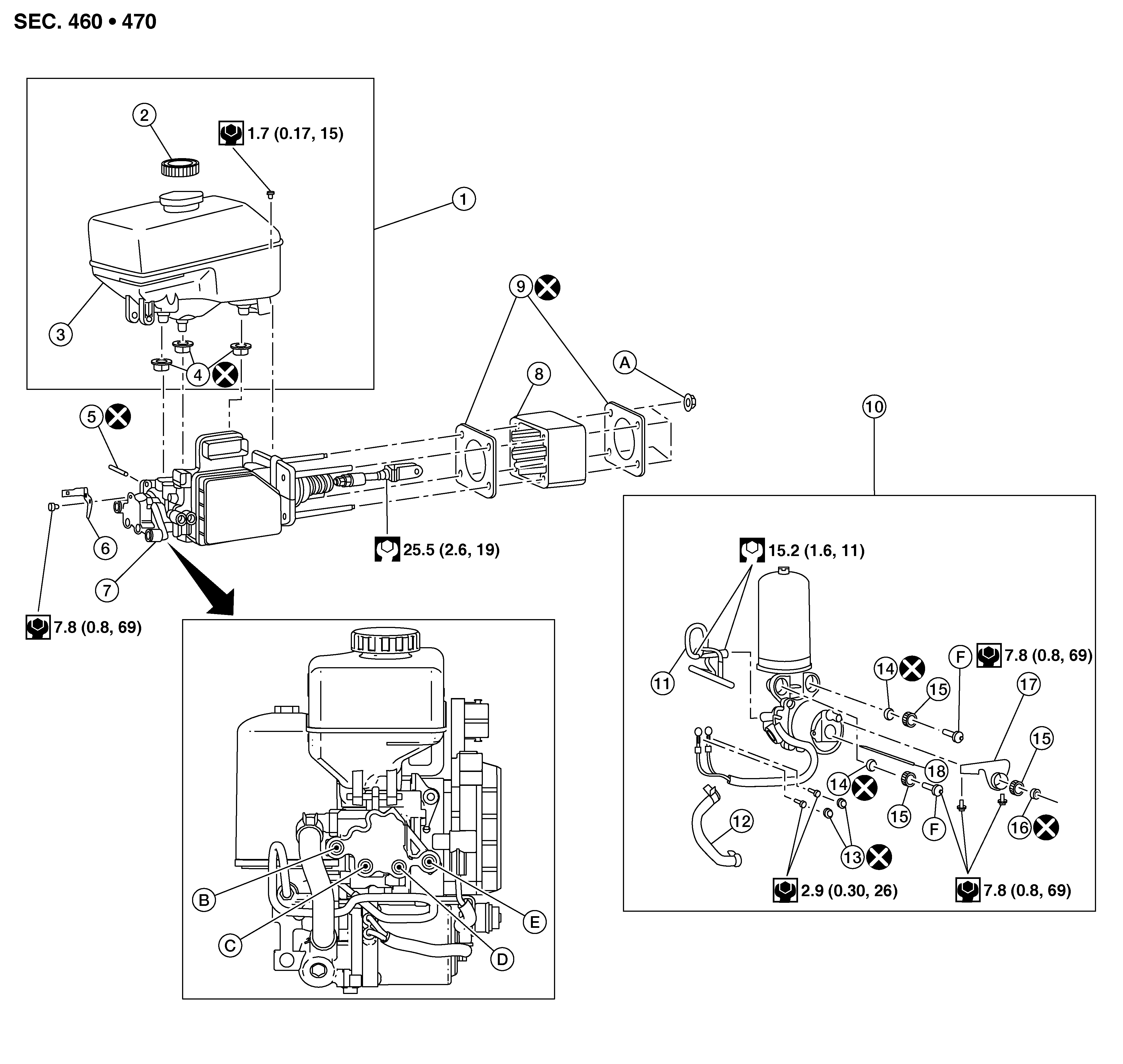

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank assembly	2.	Reservoir cap	3.	Master cylinder reservoir tank
4.	Reservoir tank seals	5.	Stopper pin	6.	Reservoir tank connector bracket
7.	Master cylinder assembly	8.	Spacer	9.	Gaskets
10.	Hydraulic booster assembly	11.	Brake tube	12.	Brake hose
13.	Grommets	14.	Collars	15.	Bushings
16.	Cap	17.	Brake booster bracket	18.	Pin
A.	Nut. Refer to Exploded View .	B.	To rear (RH) brake caliper. Refer to Hydraulic Circuit .	C.	To front (RH) brake caliper. Refer to Hydraulic Circuit .
D.	To front (LH) brake caliper. Refer to Hydraulic Circuit .	E.	To rear (LH) brake caliper. Refer to Hydraulic Circuit .	F.	Pin
