Removal and Installation: Notes

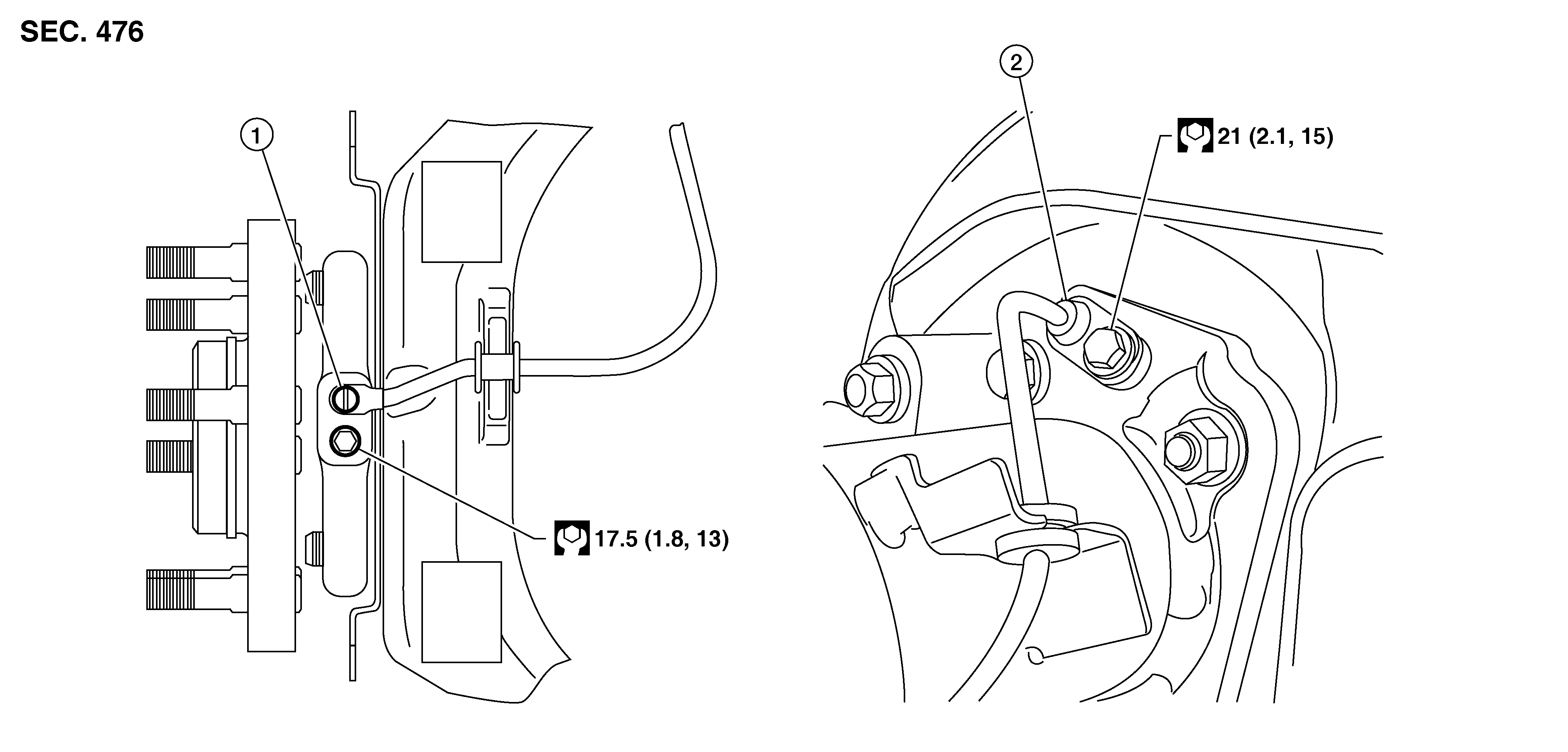

Fig 1: Wheel Sensor With Torque Specifications
GNSAWFIA0166Z-166Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front wheel sensor

2.

Rear wheel sensor
