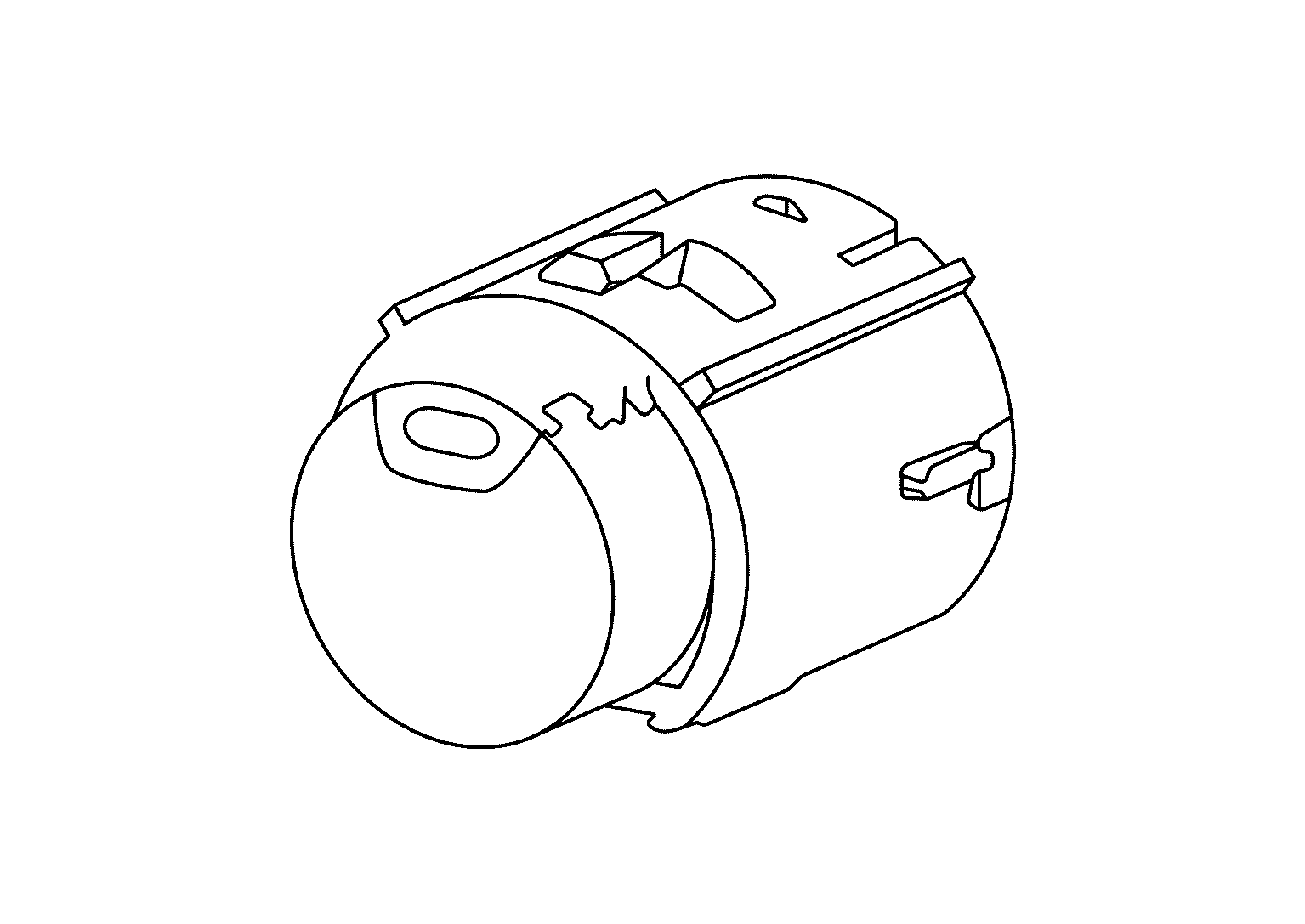

Push-button Ignition Switch

Push-button ignition switch is pressed, and transmits the status signal to BCM and IPDM E/R.

GNSJMMIA1374Z-374Courtesy of NISSAN NORTH AMERICA, INC.
