Exhaust Gas Temperature Sensor

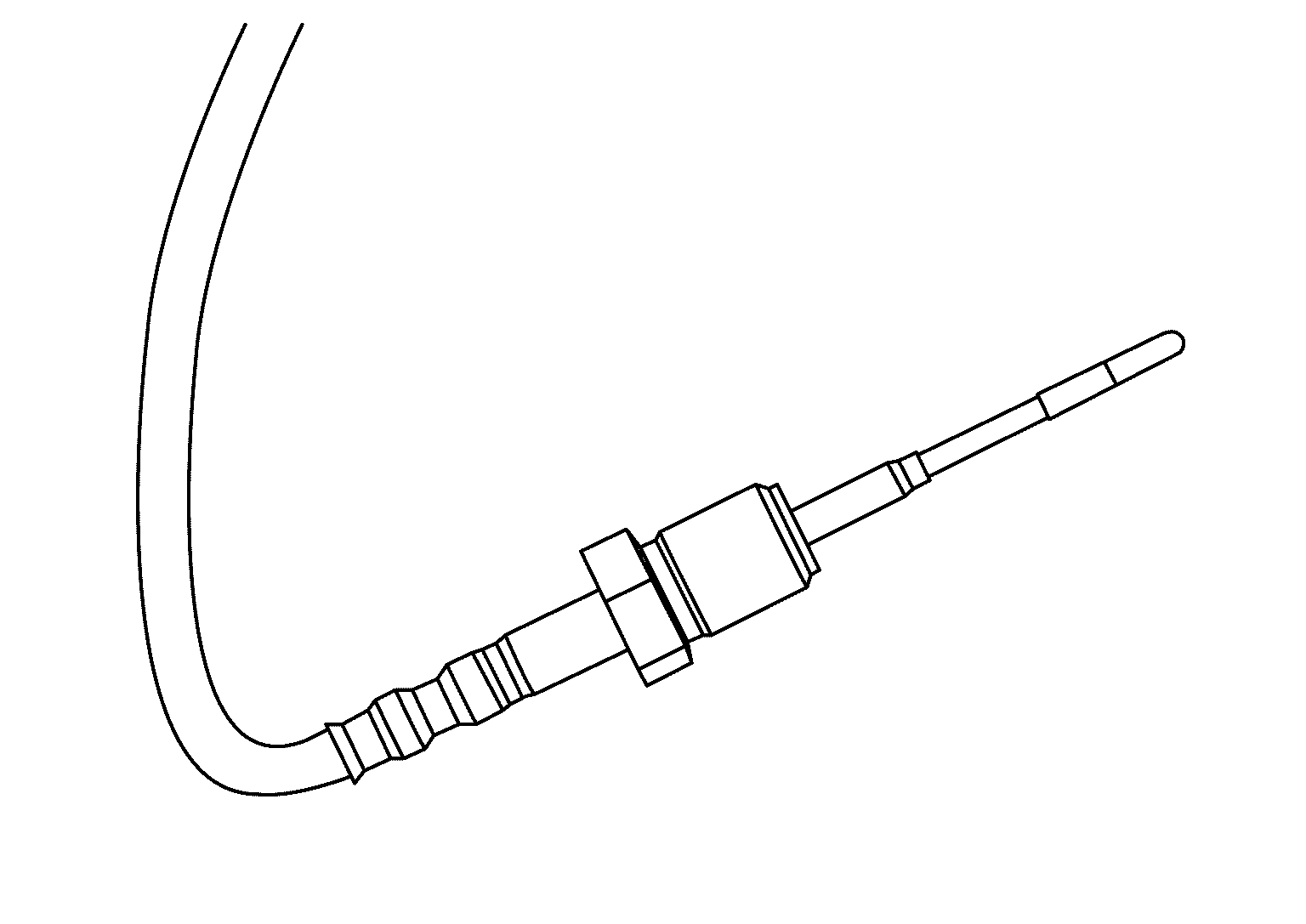

Exhaust gas temperature sensor (EGT sensor) is installed exhaust manifold. Exhaust gas temperature sensor uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rises.
|

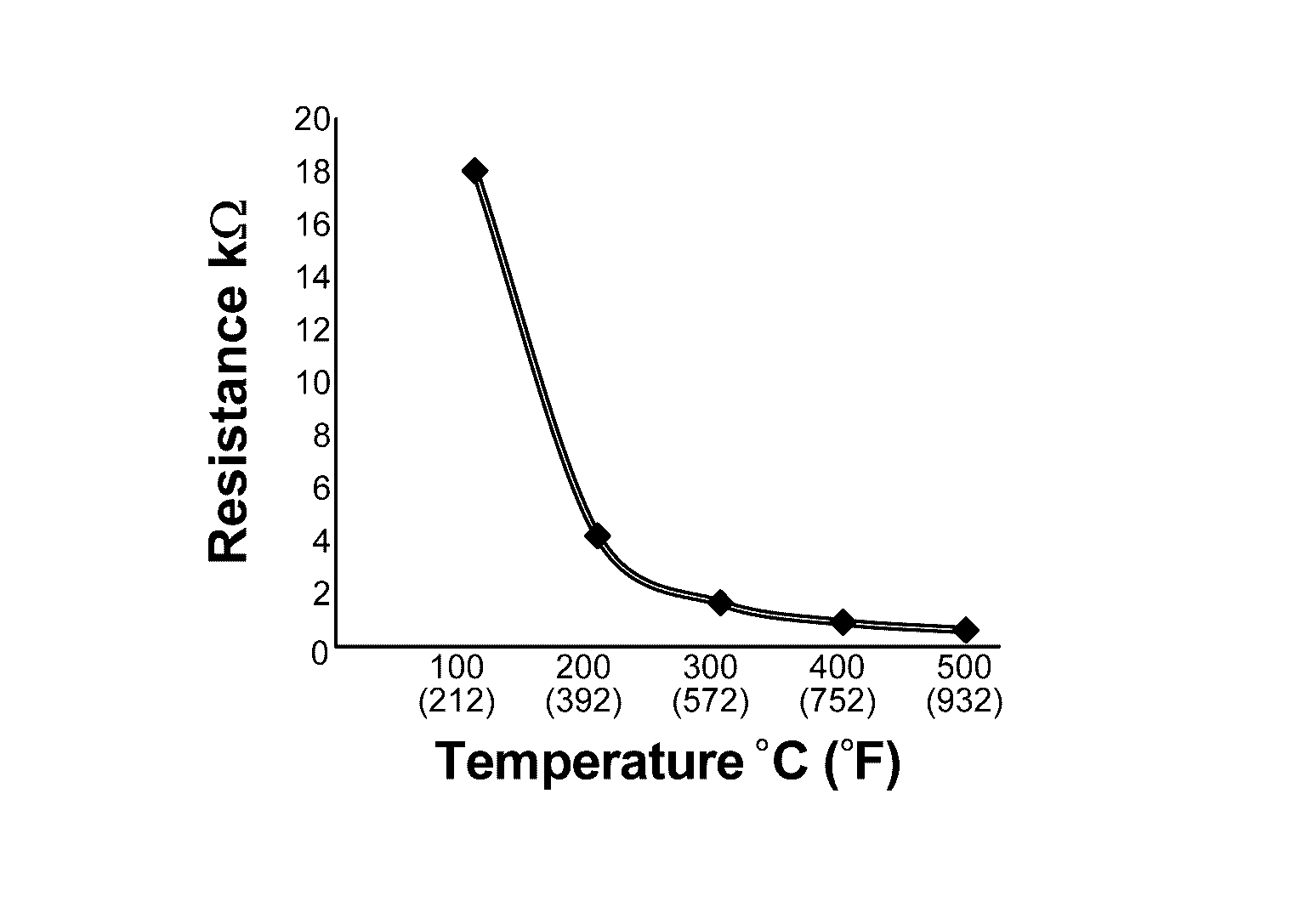

Fluid temperature [ deg. C (deg. F)] |
Resistance (kOhms) |
|
100 (212) |
18.2 |
|
200 (392) |
4.0 |
|
300 (572) |
1.4 |
|
400 (752) |
0.65 |
|
500 (932) |
0.35 |
