Intake Manifold Runner Control Valve Position Sensor

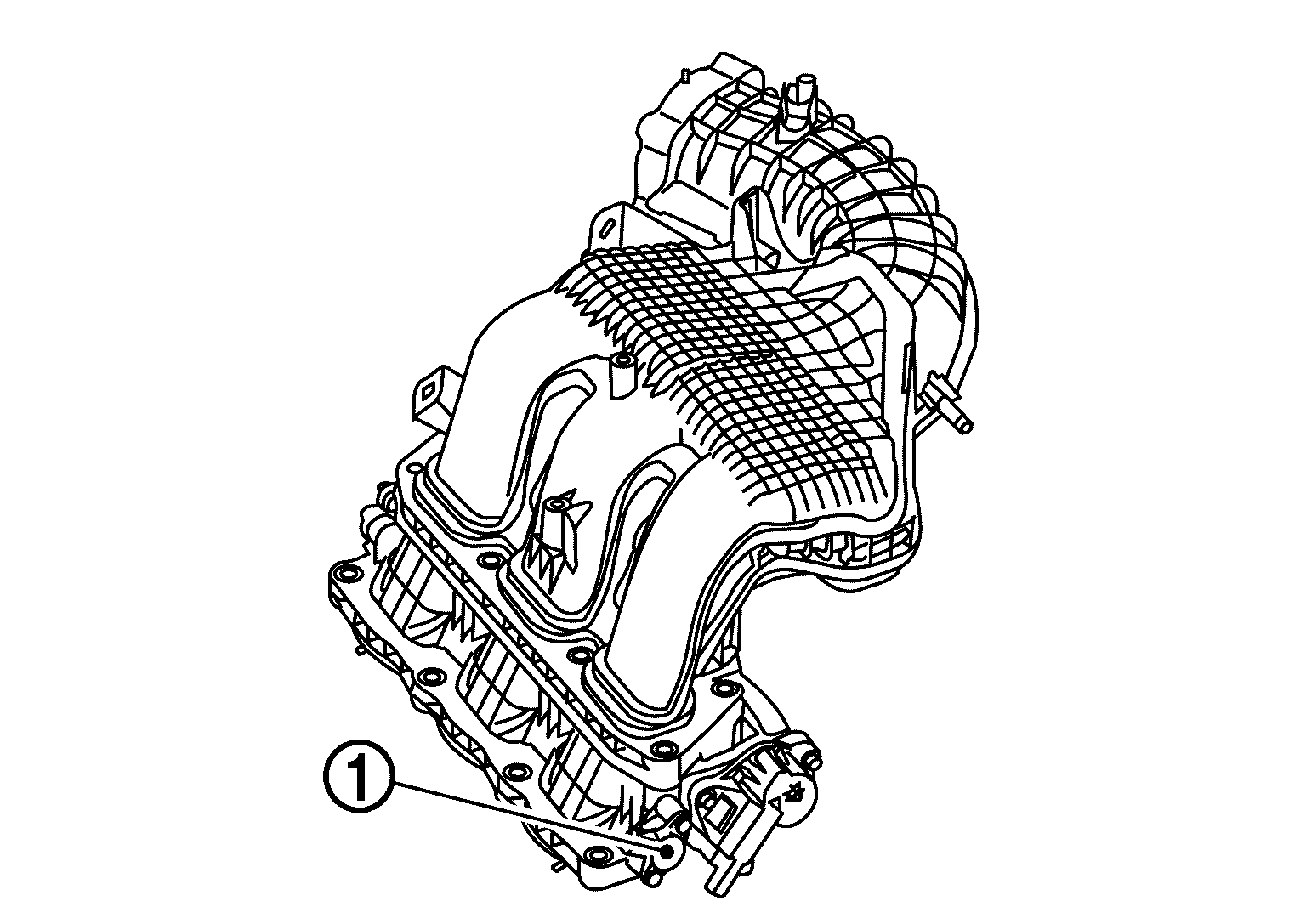

Intake manifold runner control valve position sensor is connected to the rear end of the valve shaft.

Courtesy of NISSAN NORTH AMERICA, INC.

The sensor consists of variable resister. It senses the valve shaft movement and feeds the voltage signals to the ECM.
