EVAP Leak Check: Inspection

With CONSULT

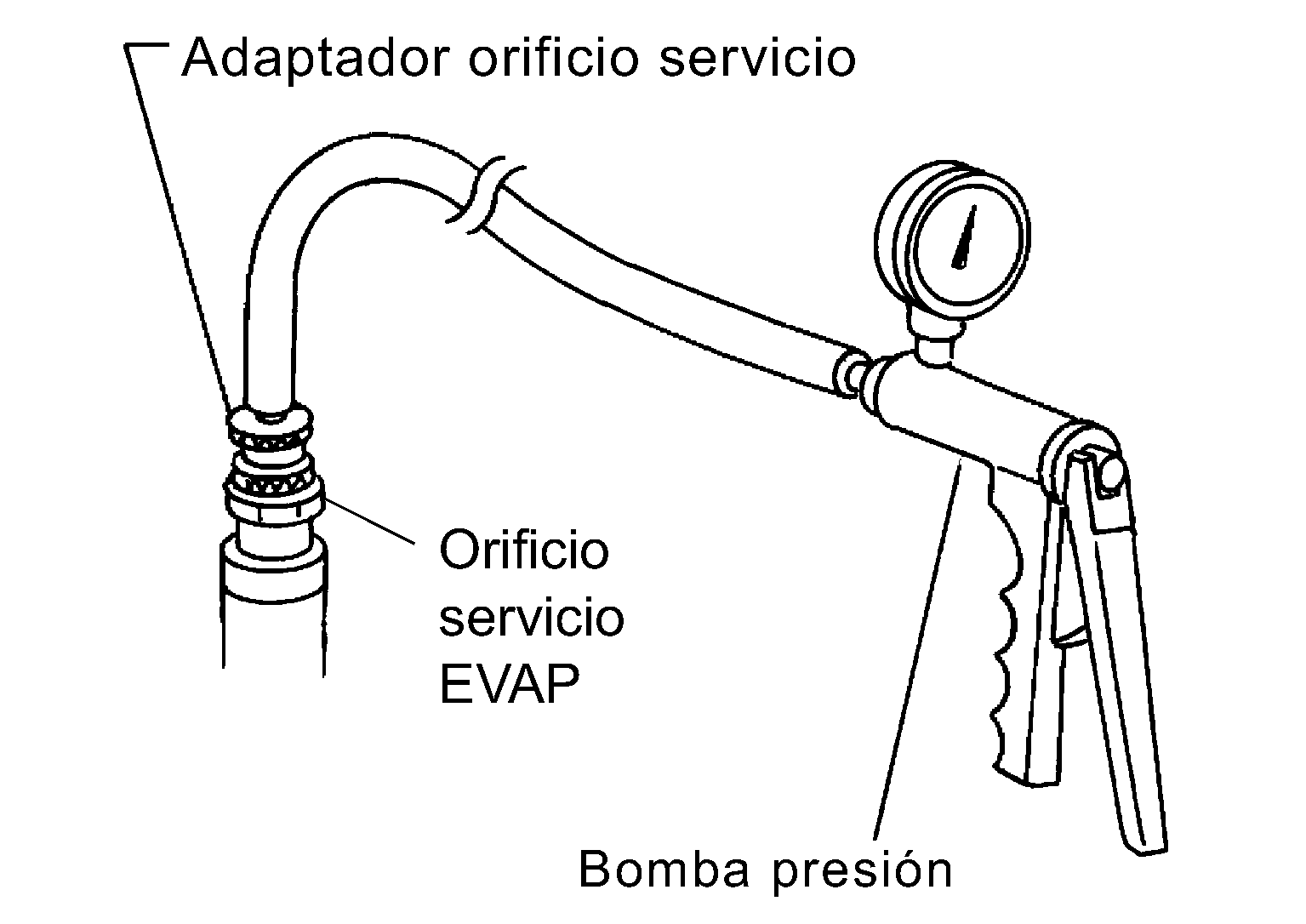

1. Install EVAP service port adapter [commercial service tool: (J-41413-OBD)] and pressure pump to EVAP service port.
   NOTE: If vacuum delay valve does not have EVAP service port, remove vacuum delay valve and install EVAP service port [commercial service tool: (Part No. 149393S500)] instead.

   Courtesy of NISSAN NORTH AMERICA, INC.

2. Turn ignition switch ON.
3. On CONSULT screen, select "ENGINE">>"Work support">>"EVAP SYSTEM CLOSE".
4. Touch "START". A bar graph (Pressure indicating display) will appear on the screen.
5. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar graph.
6. Remove EVAP service port adapter and hose with pressure pump.
7. Locate the leak using a leak detector. Refer to System Description .

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. Install EVAP service port adapter [commercial service tool: (J-41413-OBD)] and pressure pump to EVAP service port.
   NOTE: If vacuum delay valve does not have EVAP service port, remove vacuum delay valve and install EVAP service port [commercial service tool: (Part No. 149393S500)] instead.

   Courtesy of NISSAN NORTH AMERICA, INC.

2. Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP system.
3. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to 2.76 kPa (0.014 to 0.028 kg/cm2, 0.2 to 0.4 psi).
4. Remove EVAP service port adapter [commercial service tool: (J-41413-OBD)] and hose with pressure pump.

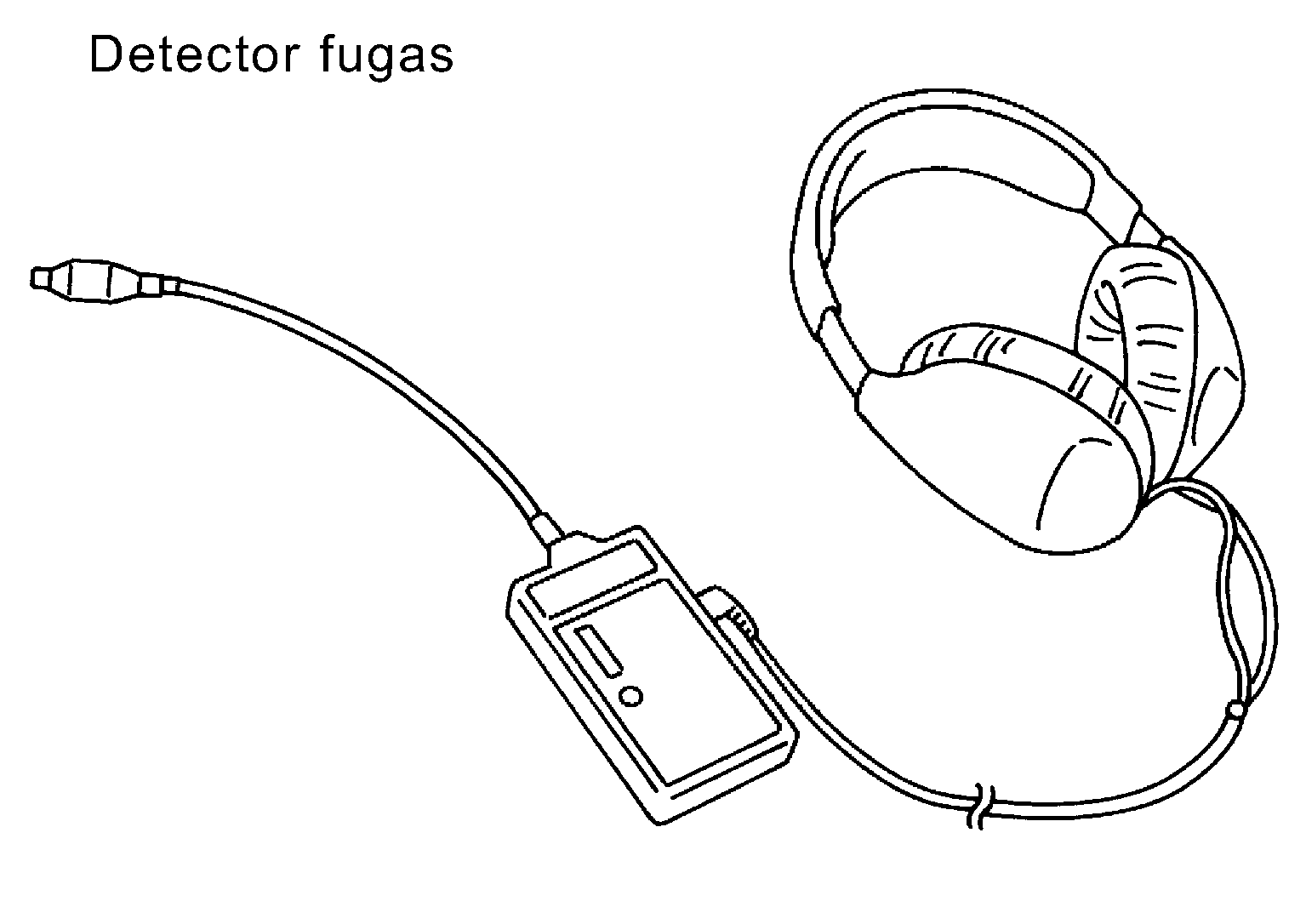

5. Locate the leak using a leak detector [commercial service tool: (J-41416)]. Refer to System Description .

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

GO TO 2

NO

Repair or replace malfunctioning part.

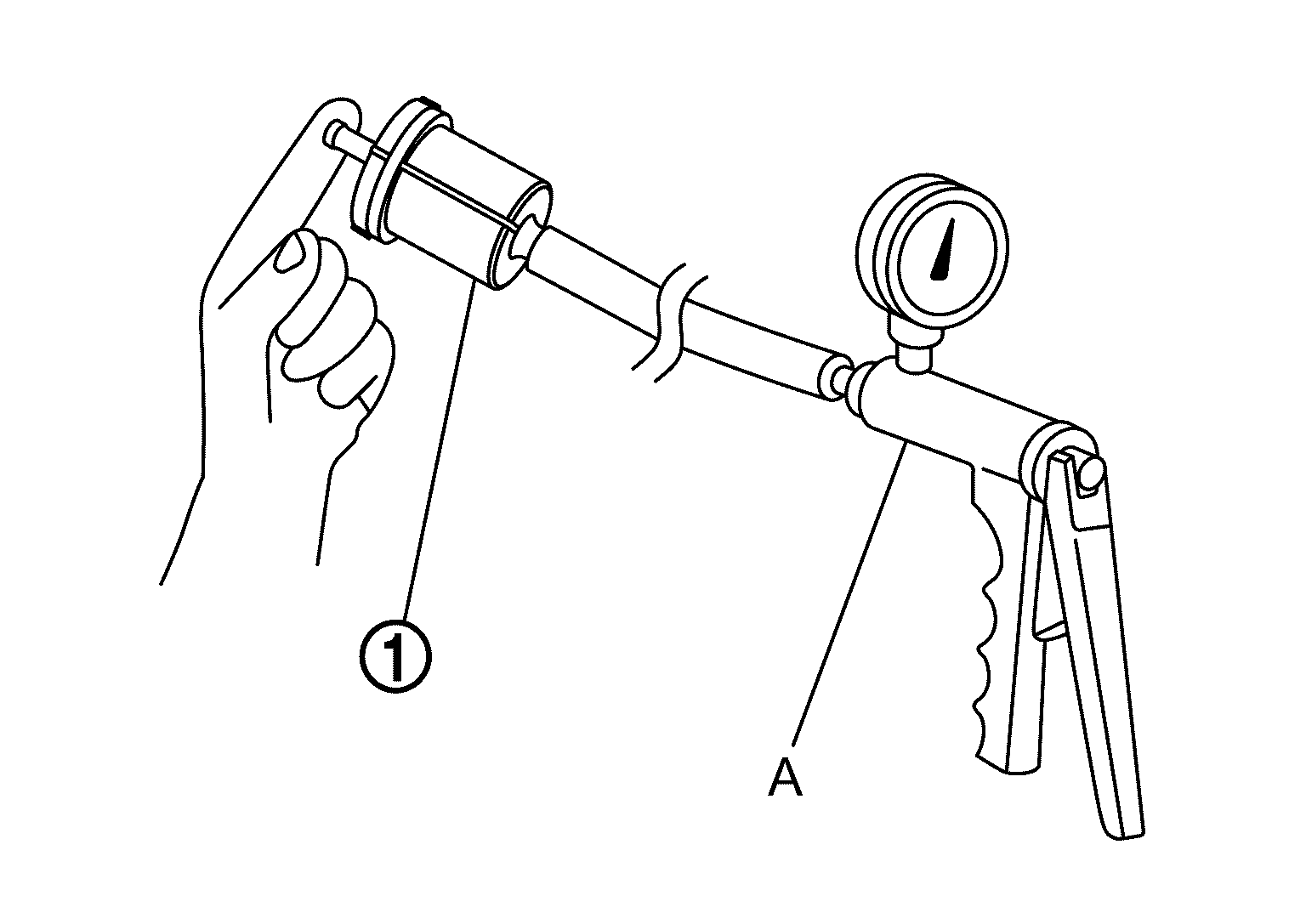

1. Connect pressure pump (A) to one of the ports of vacuum delay valve (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

2. Close the other port of vacuum delay valve with a finger.
3. Apply pressure to the vacuum delay valve.
   CAUTION: Never apply pressure more than 4.12 kPa (0.042 kg/cm2, 0.6 psi).
4. Check vacuum delay valve for leakage.

Is the inspection result normal?

YES

INSPECTION END

NO

Vacuum delay valve.
