Removal and Installation: Removal

  1. Disconnect the battery negative terminal. Refer to Removal and Installation .

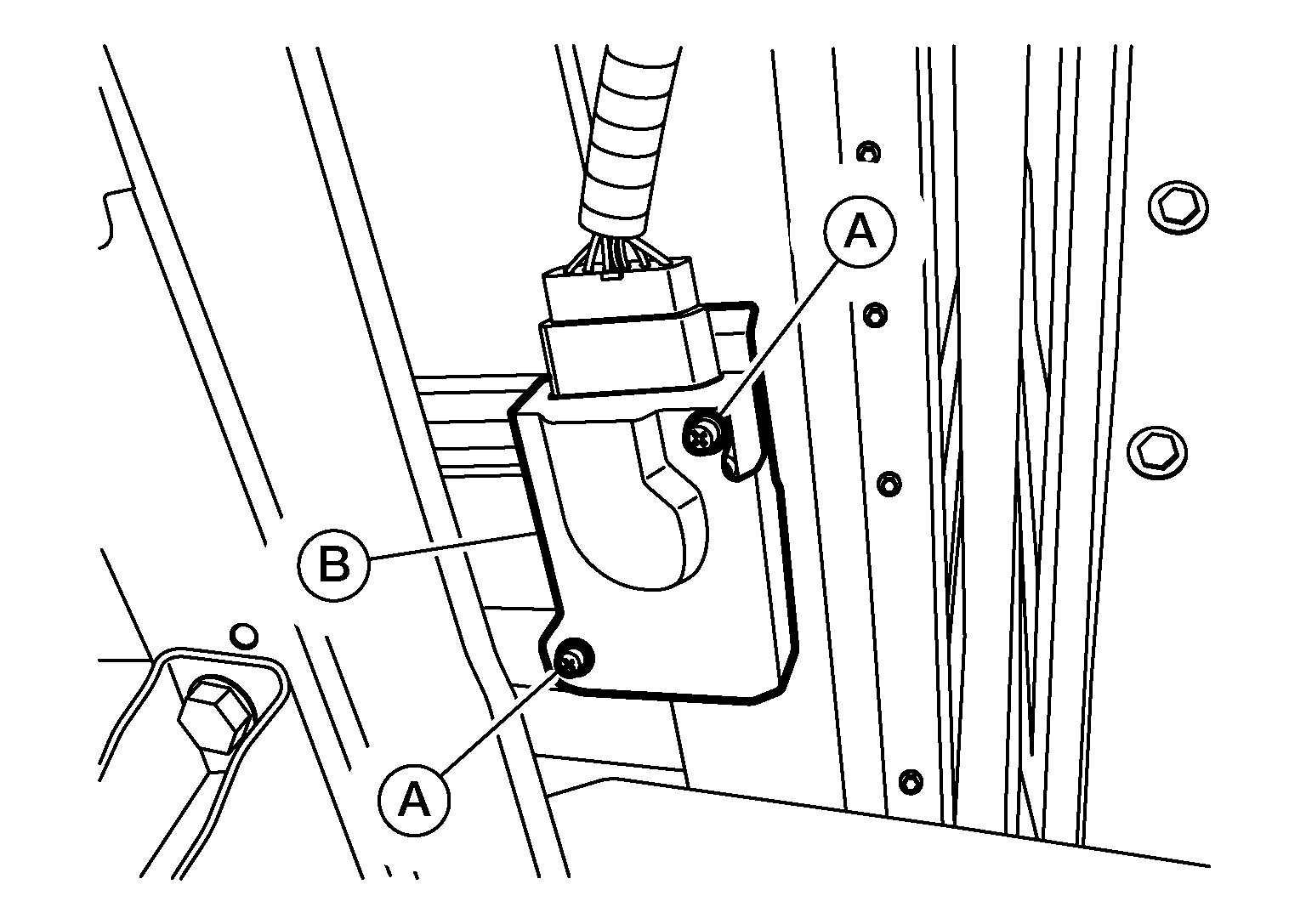

  2. Remove screws (A) from fuel pump control module cover (B).
    GNSAWBIA0454Z-454Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from fuel pump control module.

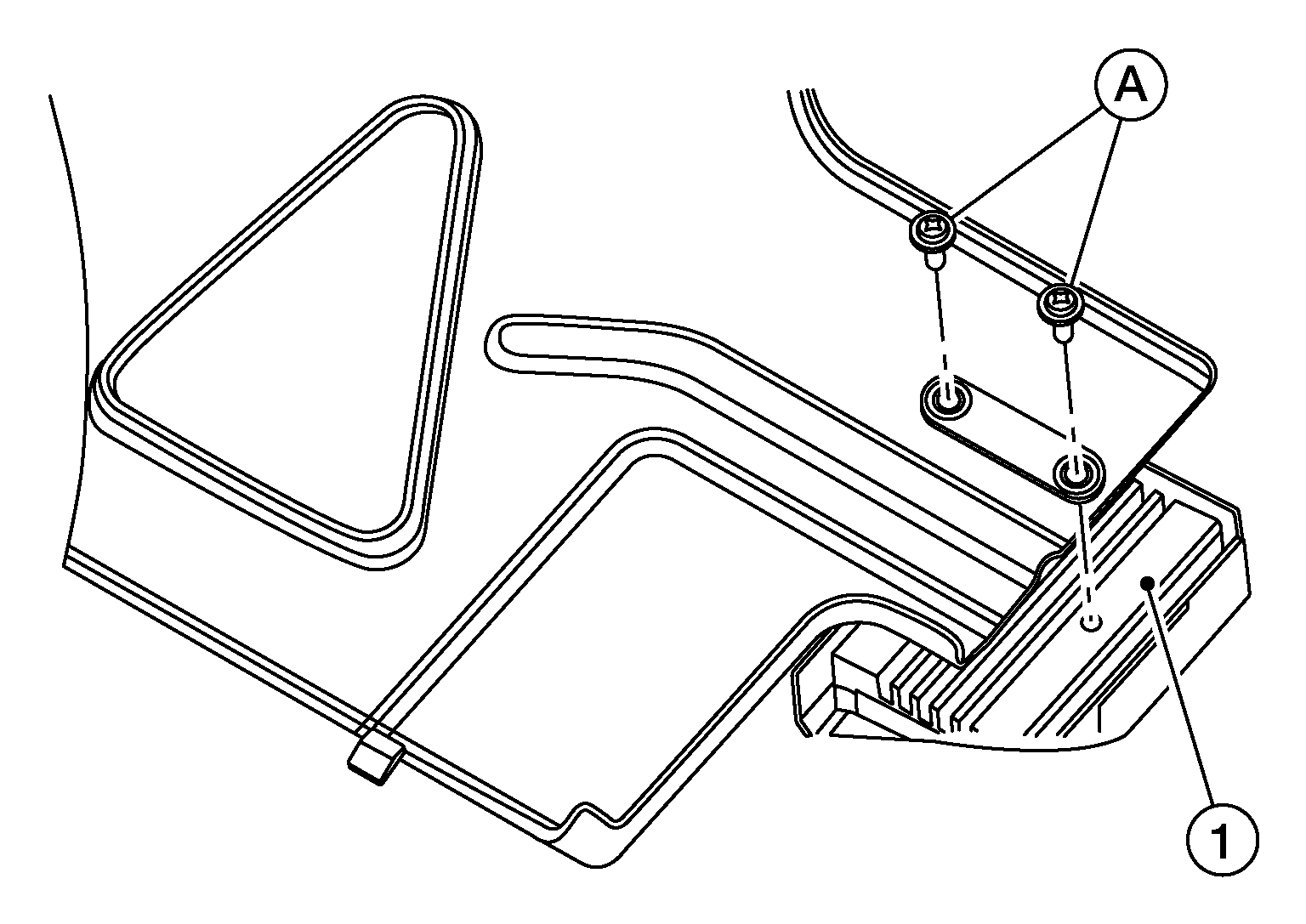

  4. Remove screws (A) and fuel pump control module (1).
    GNSAWBIA0455Z-455Courtesy of NISSAN NORTH AMERICA, INC.
