Exploded View

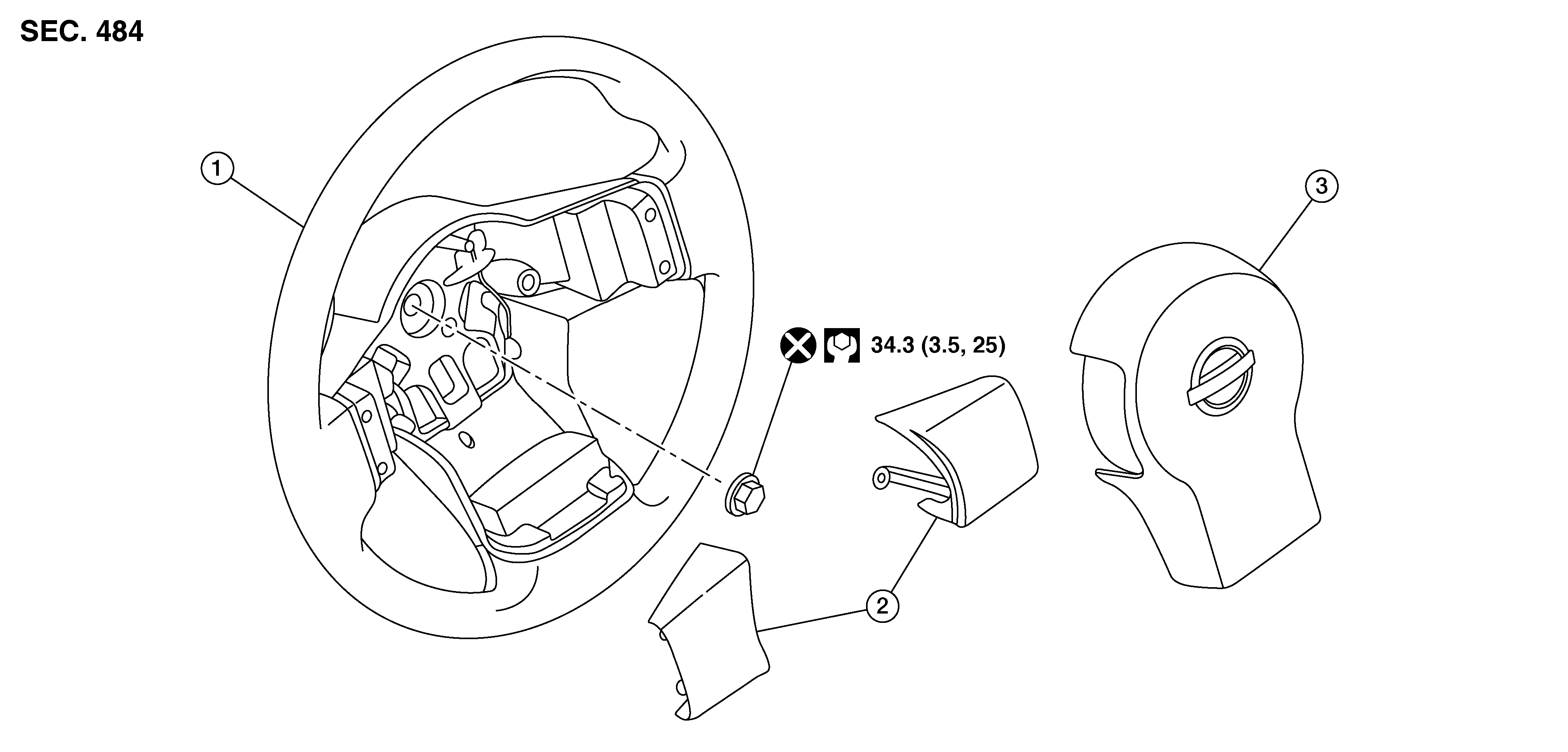

Fig 1: Steering Wheel Components With Torque Specifications
GNSAWGIA0114Z-114Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Steering wheel audio control switches

3.

Driver air bag module
