Disassembly and Assembly: Notes

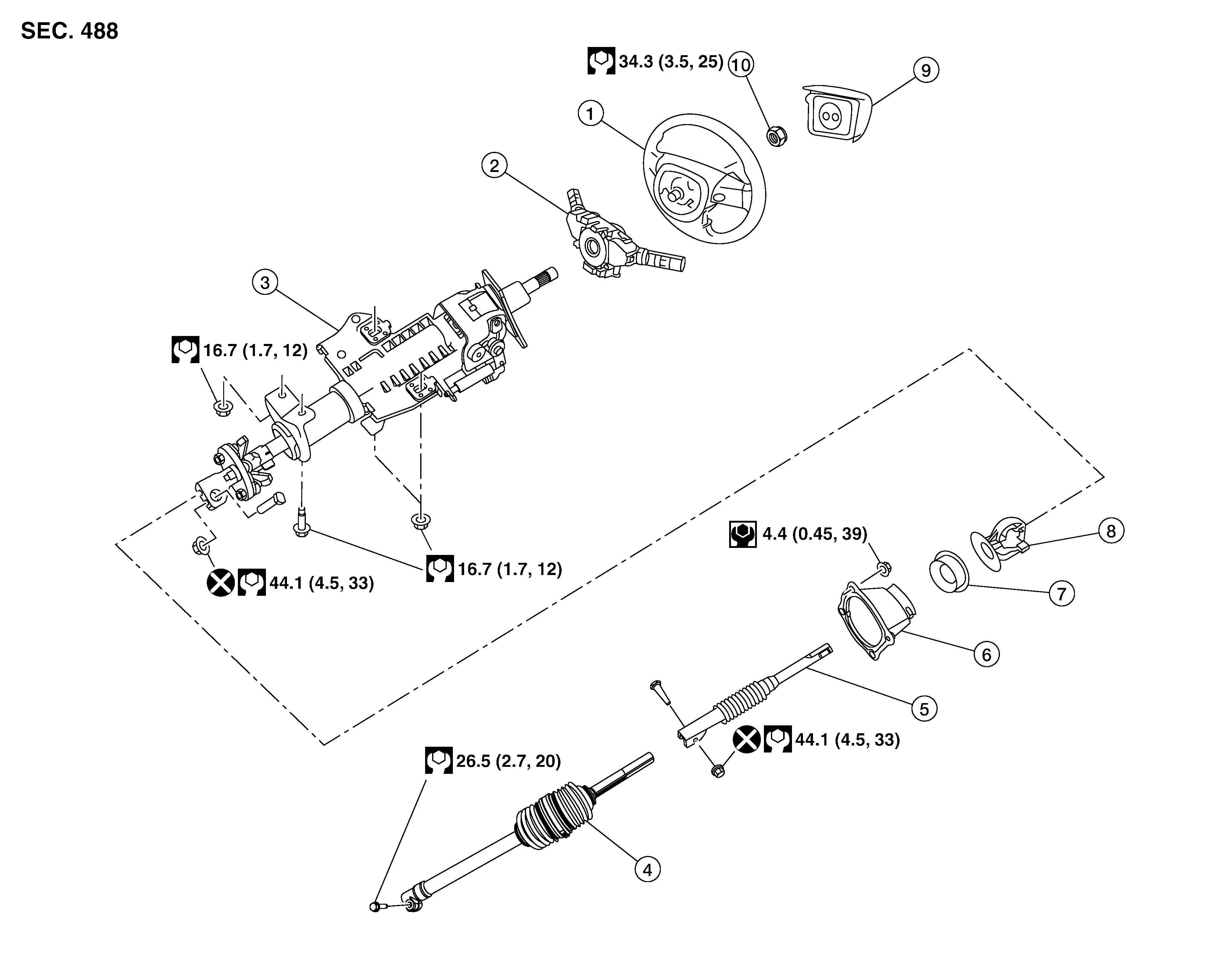

Fig 1: Steering Column Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering wheel	2.	Combination switch and spiral cable	3.	Steering column
4.	Lower joint assembly	5.	Upper shaft	6.	Hole cover assembly
7.	Hole cover seal	8.	Collar	9.	Driver air bag module
10.	Steering wheel lock nut

CAUTION: With the steering linkage disconnected, the spiral cable may snap by turning the steering wheel beyond the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns from the neutral position.
