Disassembly and Assembly: Assembly

Install insulator, cap and bolt to gear housing assembly.
Install inner sockets and tighten to specification.
Install the large-diameter side of the boots to the gear housing assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
Install the small-diameter side of the boots to the groove of the inner sockets.

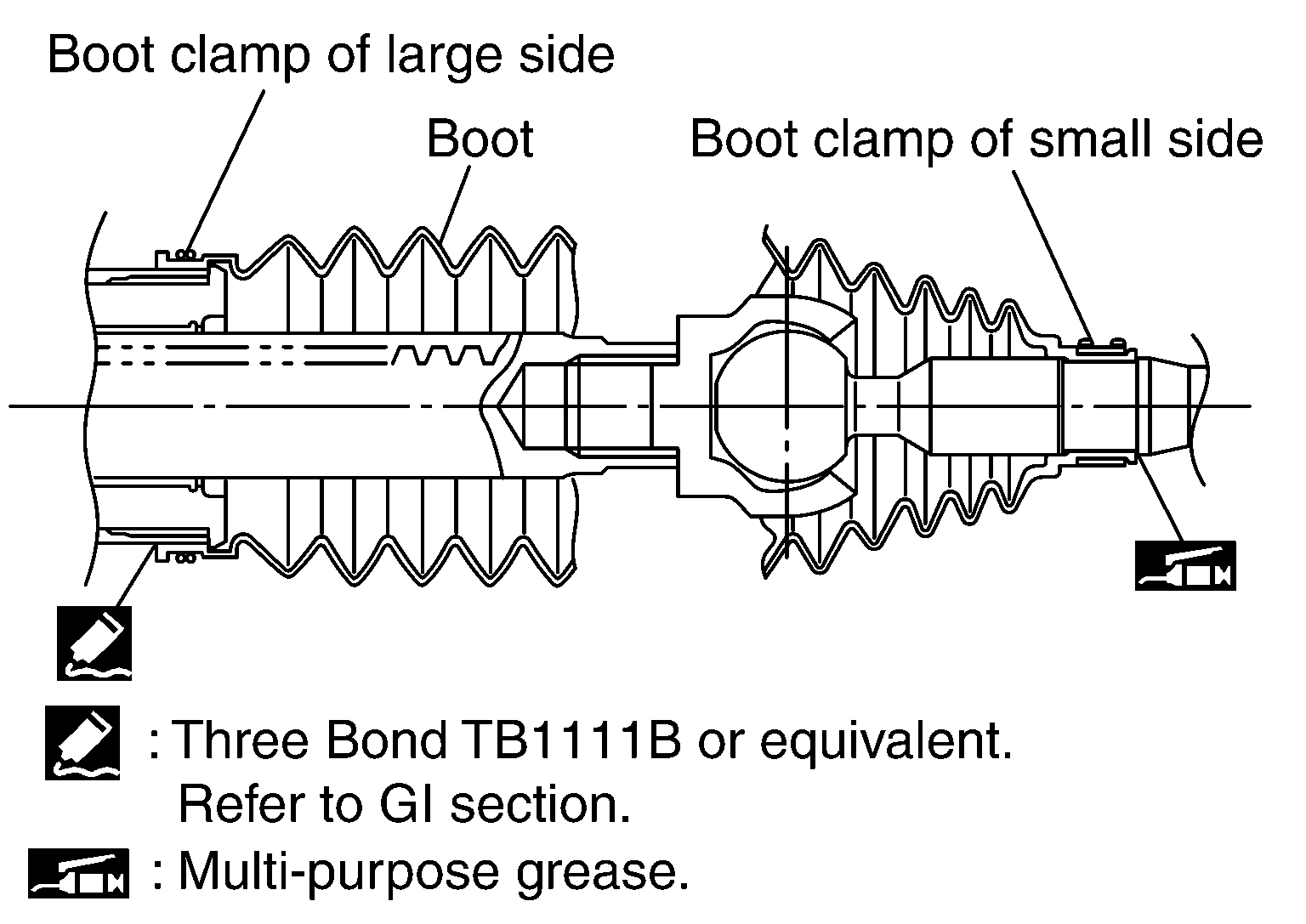

Install the boot clamps to the boots, as shown below.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the large boot clamps.

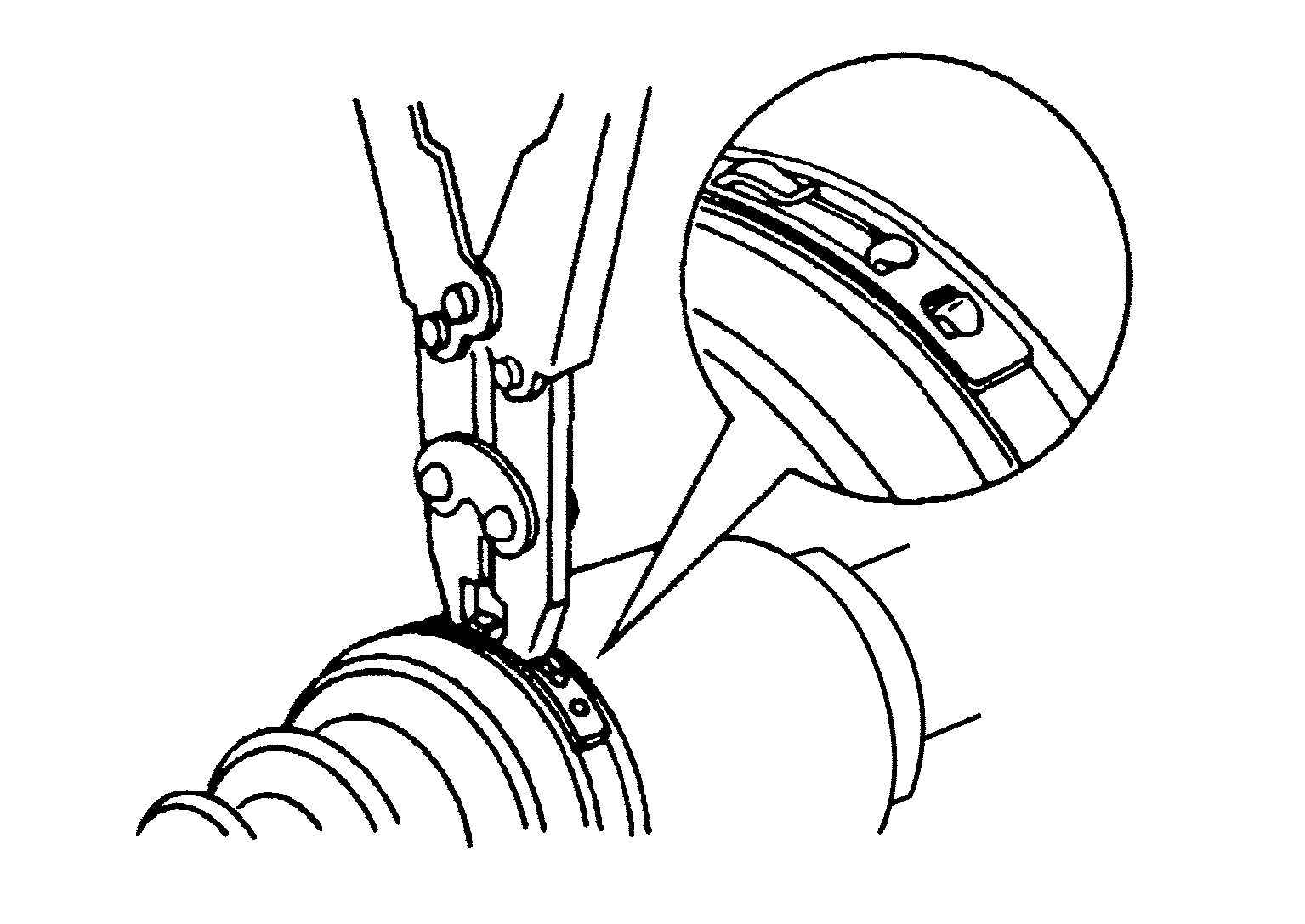

Crimp the large boot clamps, using Tool.

Courtesy of NISSAN NORTH AMERICA, INC.

Tool number

: KV40107300 (J-51751)

Install the lock nuts and outer sockets to the inner sockets.

Thread the outer sockets onto the inner sockets to the specified length (L) and a minimum thread depth of 18 threads, then tighten the lock nuts to the specified torque. Refer to "Disassembly and Assembly". Reconfirm that the tie-rod length (L) is within specification.

Courtesy of NISSAN NORTH AMERICA, INC.

Maximum inner socket length (L)

: Refer to Steering Gear .

CAUTION:

To prevent damage, hold outer socket across flats using suitable tool while tightening inner socket lock nut.
Adjust toe-in after this procedure. The length achieved after toe-in adjustment is not necessarily the above value.
Inspect to make sure no boot deformation has occurred during toe-in adjustment. Adjust boot as necessary.
