Disassembly and Assembly: Notes

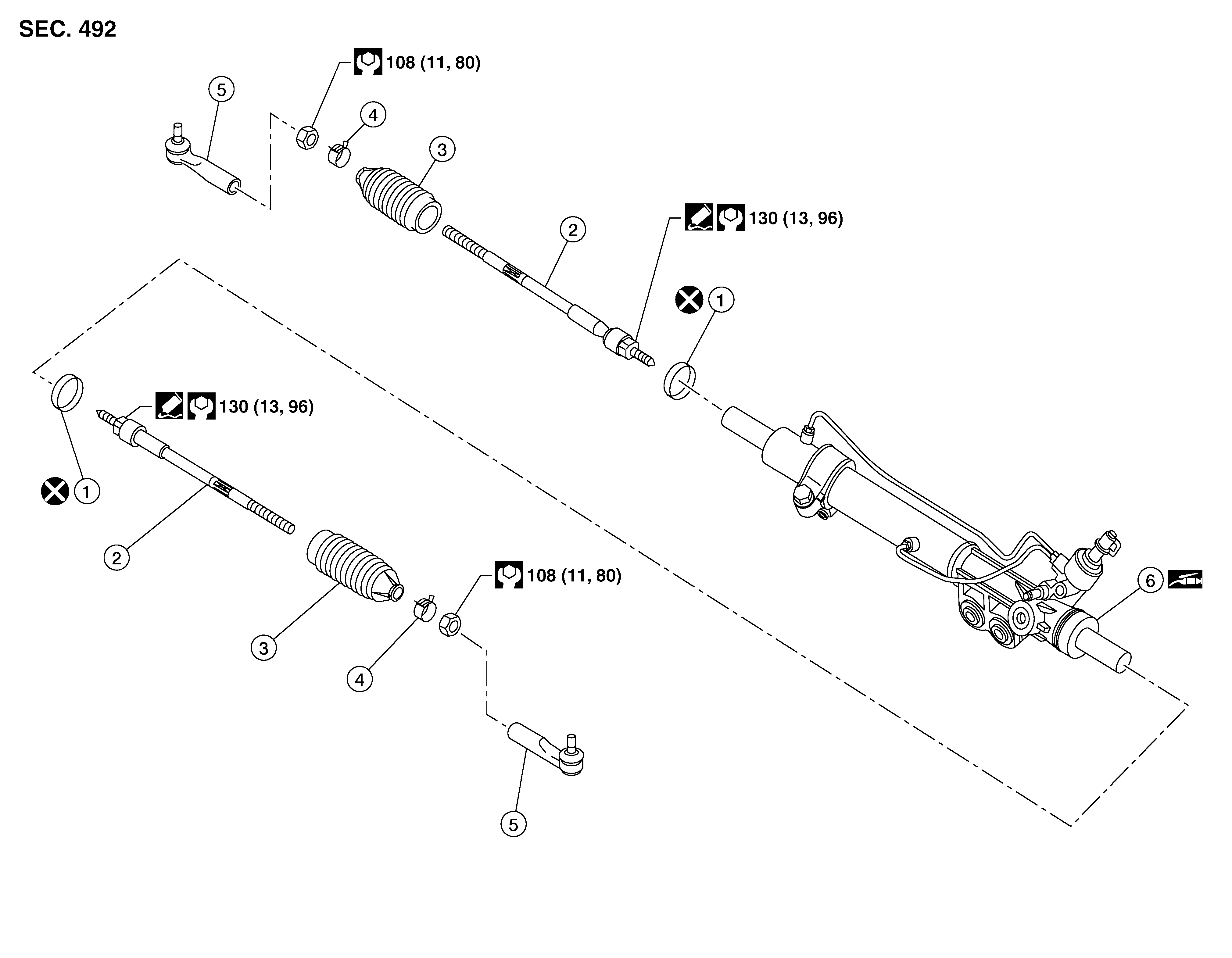

Fig 1: Steering Gear And Linkage Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Boot clamp	2.	Inner socket	3.	Boot
4.	Boot clamp	5.	Outer socket	6.	Gear housing assembly

CAUTION:

Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from being damaged. Do not grip the cylinder with a vise.
Before performing disassembly, clean the gear housing assembly. Be careful not to allow any cleaner to contact the discharge and return port connectors.
