Exploded View

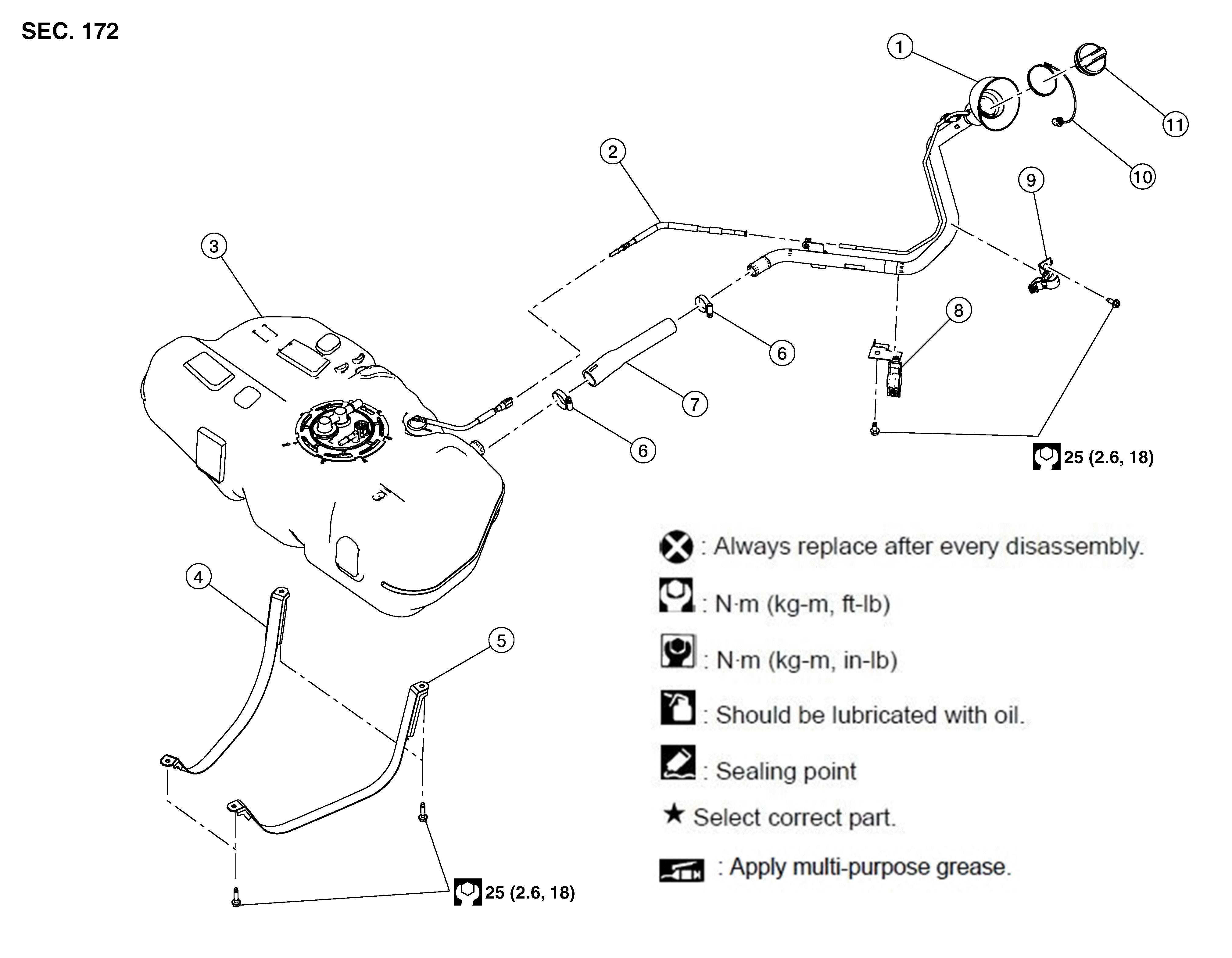

Fig 1: Fuel Tank Components With Torque Specifications
GNSALBIA0354Z-354Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel filler tube

2.

Vent hose

3.

Fuel tank

4.

Fuel tank mounting band (RH)

5.

Fuel tank mounting band (LH)

6.

Clamp

7.

Fuel filler hose

8.

Fuel filler tube lower bracket

9.

Fuel filler tube upper bracket

10.

Fuel filler cap retainer

11.

Fuel filler cap
