Slide Double Locking
- A new style slide double locking type connector is used on certain systems and components, especially those related to air bag control systems.
- The slide double locking type connectors help prevent incomplete locking and accidental looseness or disconnection.

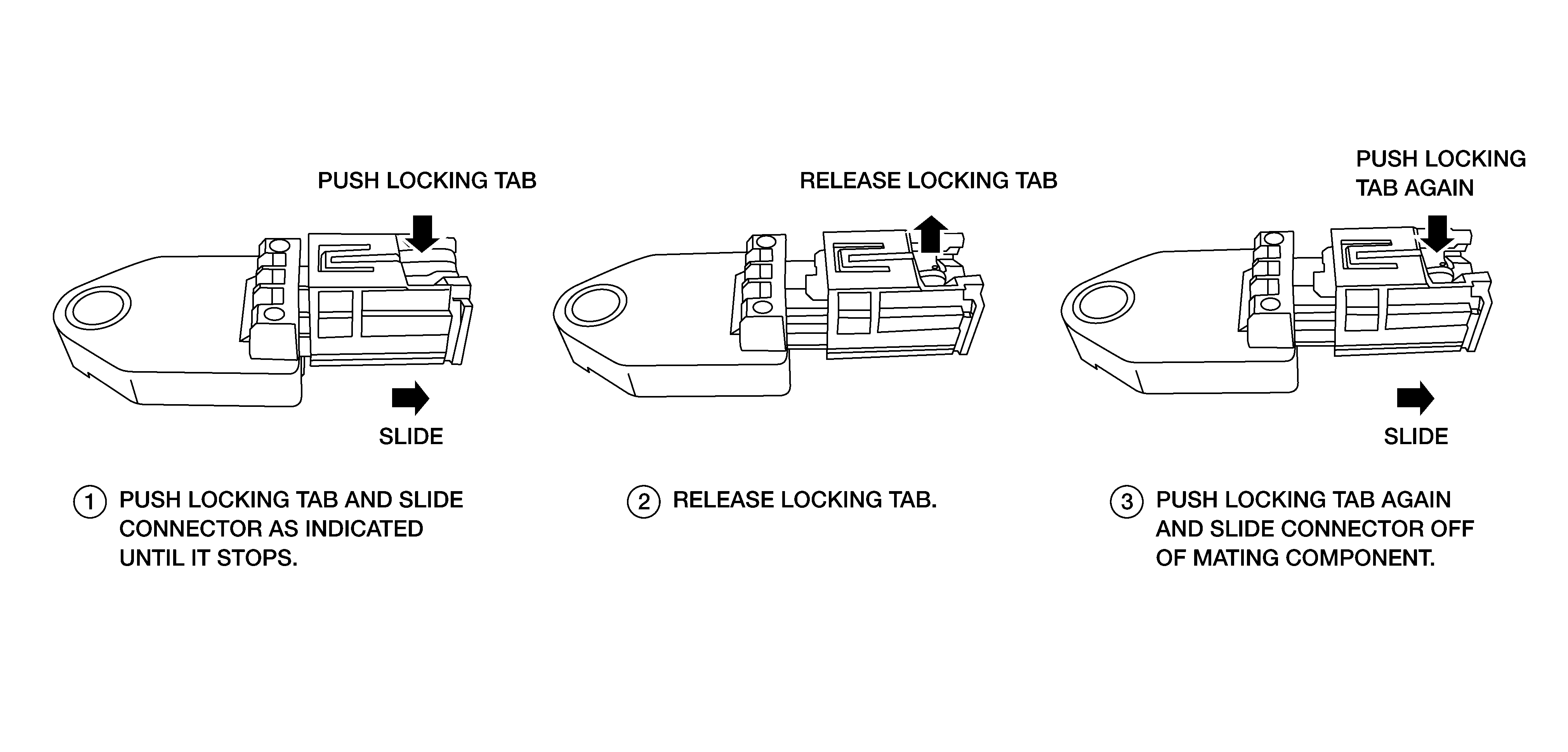

- The slide double locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure below.
CAUTION:
- Do not pull the harness or wires when disconnecting the connector.
