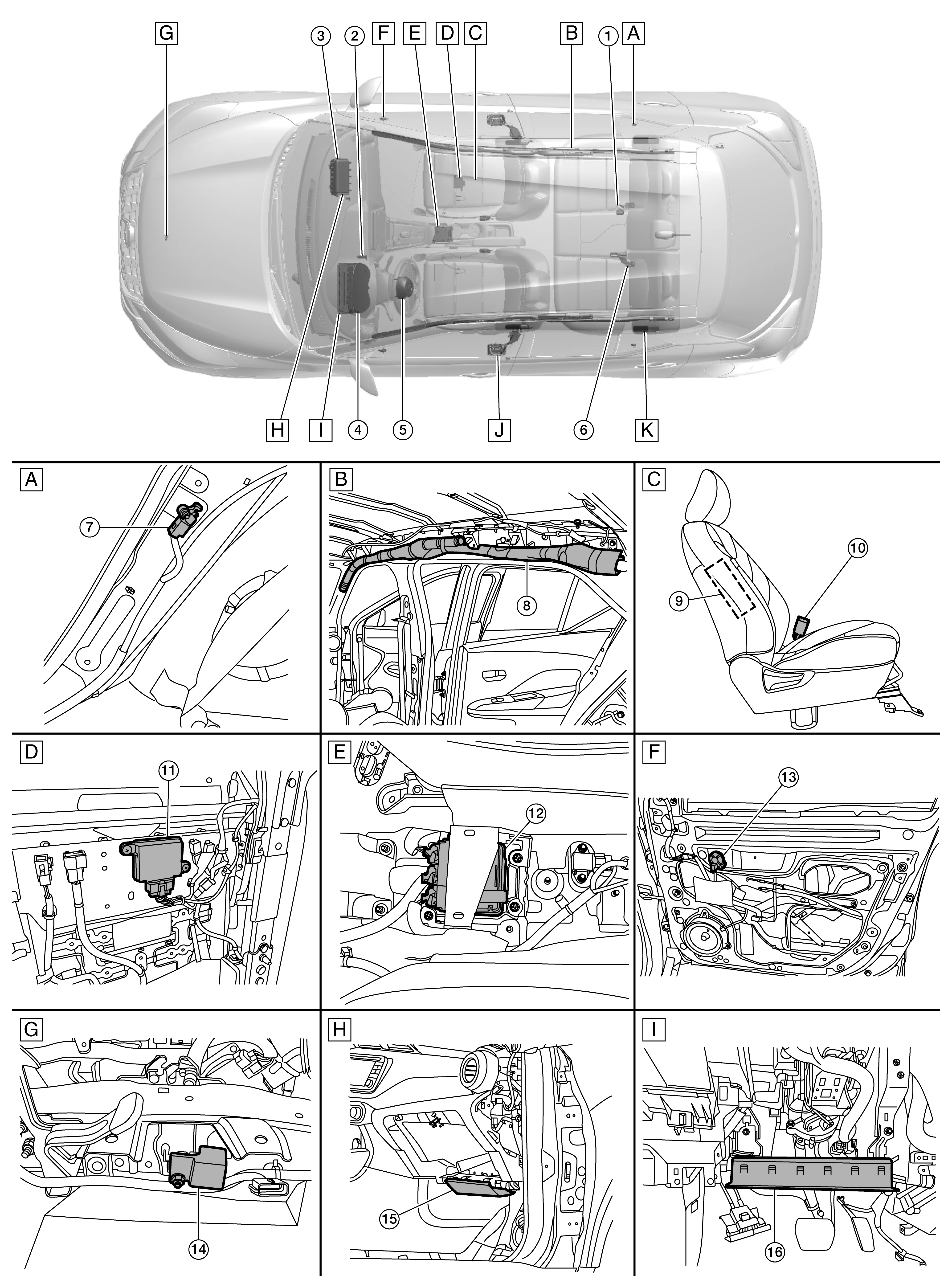

Component Location
|
A. |
Right of rear passenger seat (view with RH rear lower finisher removed) |
B. |
Right side of roof line (view with headlining removed) |
C. |
Passenger seat |
|
D. |
Bottom of passenger seat (view with passenger seat removed) |
E. |
Between driver and passenger seat (view with center console removed) |
F. |
Passenger door area (view with passenger door finisher removed) |
|
G. |
Radiator core support assembly |
H. |
Right side of instrument panel |
I. |
Left side of instrument panel |
|

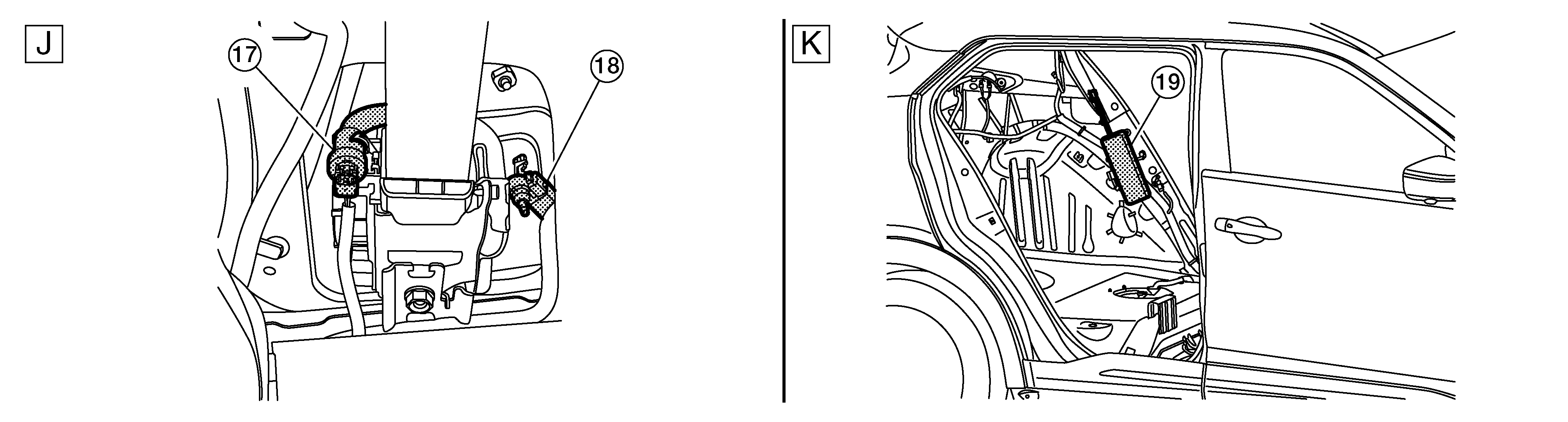

J. |
Left of driver seat (view with the lower B-pillar trim removed) |
K. |
Left of rear passenger seat (view with rear seat removed) |
|
No. |
Component |
Function |
|
1. |
Rear seat belt buckle switch RH |
Transmits the rear seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
|
2. |
Front passenger air bag off indicator |
Refer to Front Passenger Air Bag Off Indicator . |
|
3. |
Front passenger air bag module |
Refer to Front Passenger Air Bag Module . |
|
4. |
Combination meter |
Indicates air bag malfunction and deployment by blinking and illuminating air bag warning lamp. |
|
5. |
Driver air bag module |
Refer to Driver Air Bag Module . |
|
6. |
Rear seat belt buckle switch LH & CTR |
Transmits the rear seat belt buckle switch LH & CTR signal to the air bag diagnosis sensor unit. |
|
7. |
Rear side air bag satellite sensor RH (LH similar) |
Refer to Rear Side Air Bag Satellite Sensor . |
|
8. |
Side curtain air bag module RH (LH similar) |
Refer to Side Curtain Air Bag Module . |
|
9. |
Front side air bag module RH (LH similar) |
Refer to Front Side Air Bag Module . |
|
10. |
Front seat belt buckle switch RH (LH similar) |
The seat belt buckle switches (LH/RH) provide the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter. |
|
11. |
Occupant classification system control unit |
Refer to System Description . |
|
12. |
Air bag diagnosis sensor unit |
Refer to Air Bag Diagnosis Sensor Unit . |
|
13. |
Front door satellite sensor RH (LH similar) |
Refer to Front Door Satellite Sensor . |
|
14. |
Crash zone sensor |
Refer to Crash Zone Sensor . |
|
15. |
Right knee air bag module |
Refer to Right Knee Air Bag Module . |
|
16. |
Left knee air bag module |
Refer to Left Knee Air Bag Module . |
|
17. |
Front LH seat belt pre-tensioner (RH similar) |
Refer to Front Seat Belt Pre-tensioner . |
|
18. |
Side air bag satellite sensor LH (RH similar) |
Refer to Side Air Bag Satellite Sensor . |
|
19. |
Rear side air bag module LH (RH similar) |
Refer to Rear Side Air Bag Module . |
