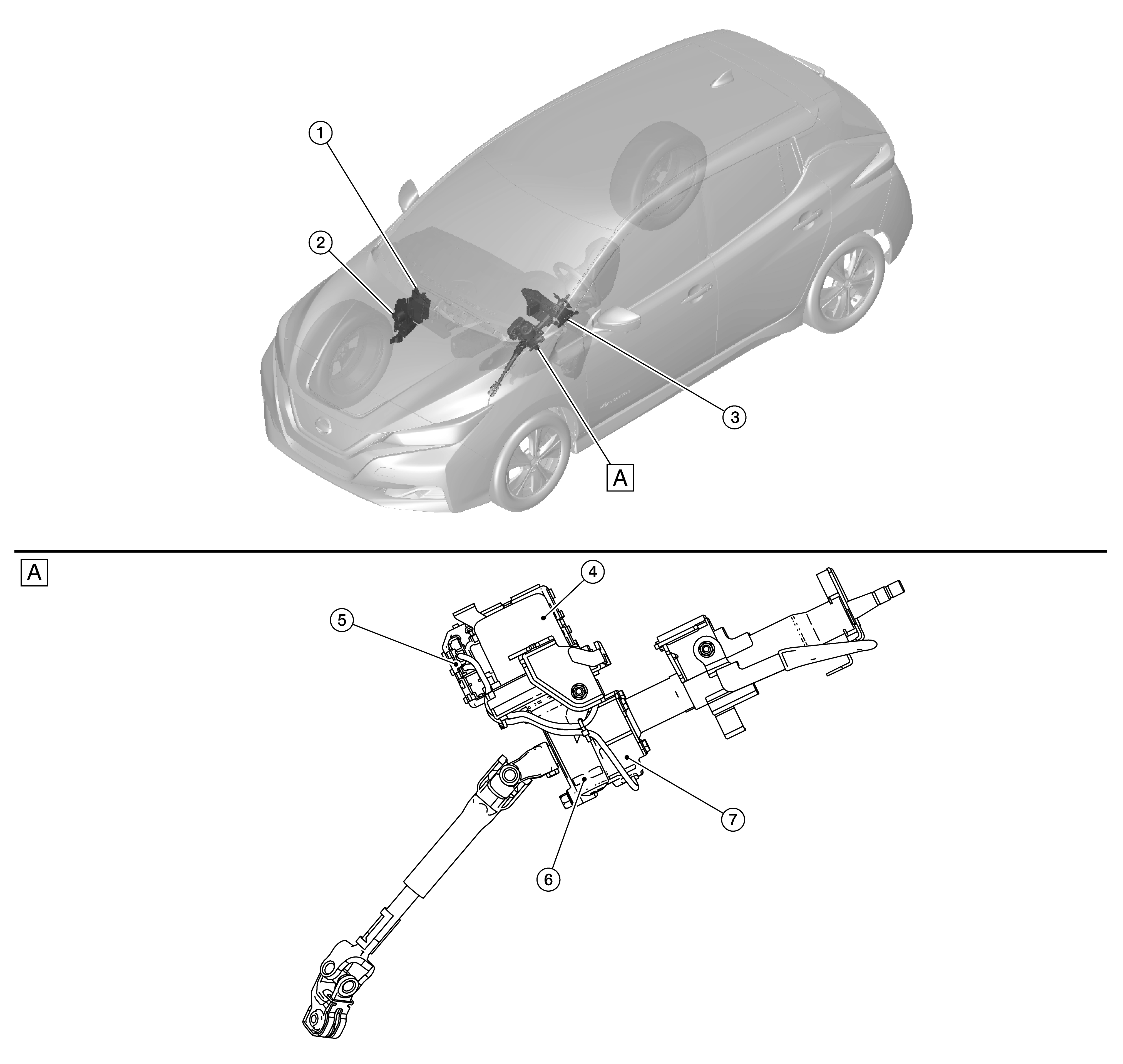

Component Location
|
A. |
View of steering column assembly removed |
|
No. |
Component |
Function |
|
1. |
VCM (Vehicle Control Module) |
Transmits mainly the following signals to EPS control unit via CAN communication:
Refer to Component Location (62kWh Li-ion battery) or Component Location (40kWh Li-ion battery) for detailed component location. |
|
2. |
ABS (Ant-lock Braking System) actuator and electric unit (control unit) |
Transmits mainly the following signal to EPS control unit via CAN communication:
Refer to Component Location for detailed component location. |
|
3. |
Combination meter (EPS warning lamp) |
Transmits mainly the following signal to EPS control unit via CAN communication:
Refer to Component Location for detailed component location. Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication. Refer to System Description . |
|
4. |
EPS motor |
Refer to Component Description . |
|
5. |
EPS (Electric Power Steering) control unit |
Refer to Component Description . |
|
6. |
Reduction gear |
Refer to Component Description . |
|
7. |
Torque sensor |
Refer to Component Description . |
