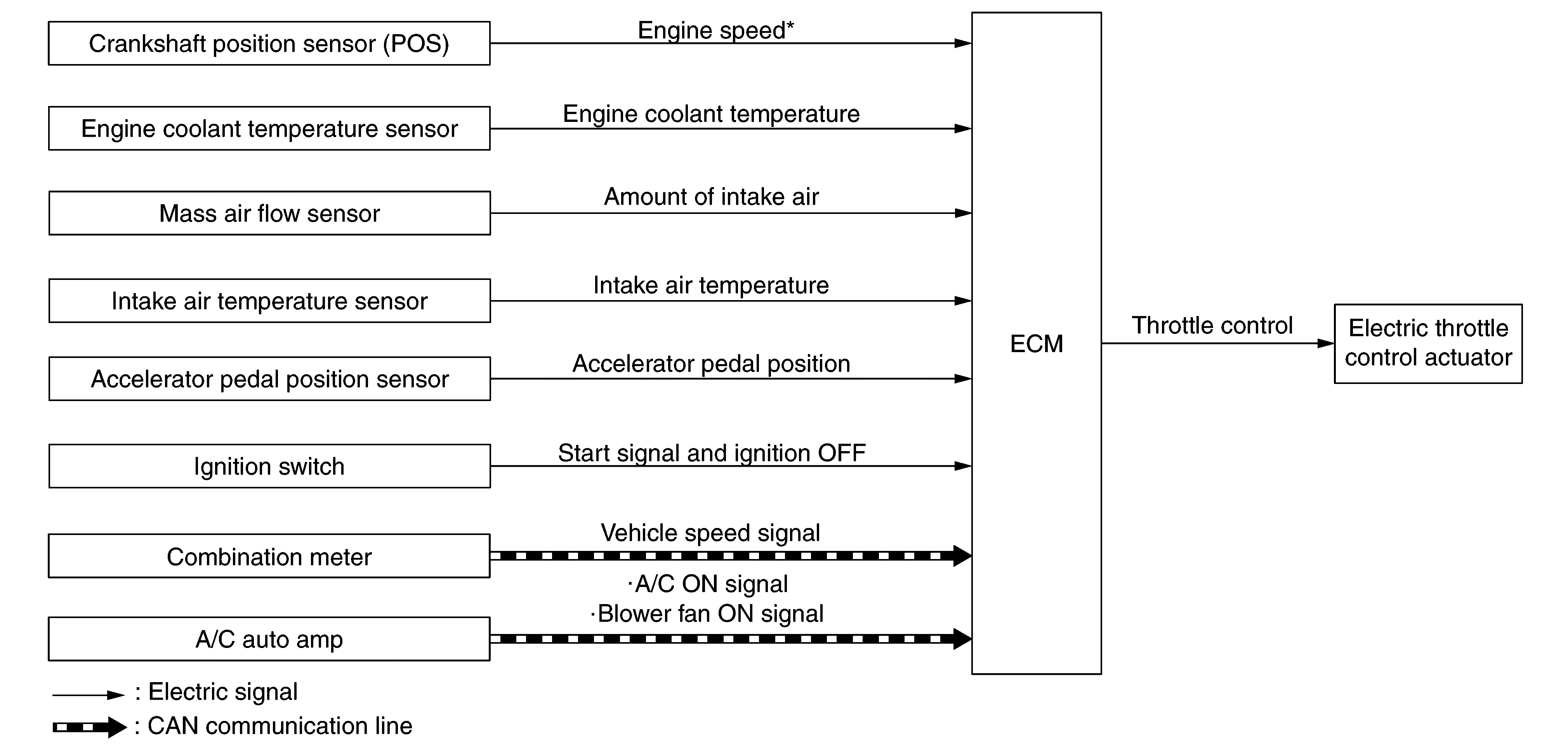

System Diagram

G08944563Courtesy of NISSAN NORTH AMERICA, INC.

*: ECM determines the start signal status by the signals of engine speed and battery voltage.
