Exploded View

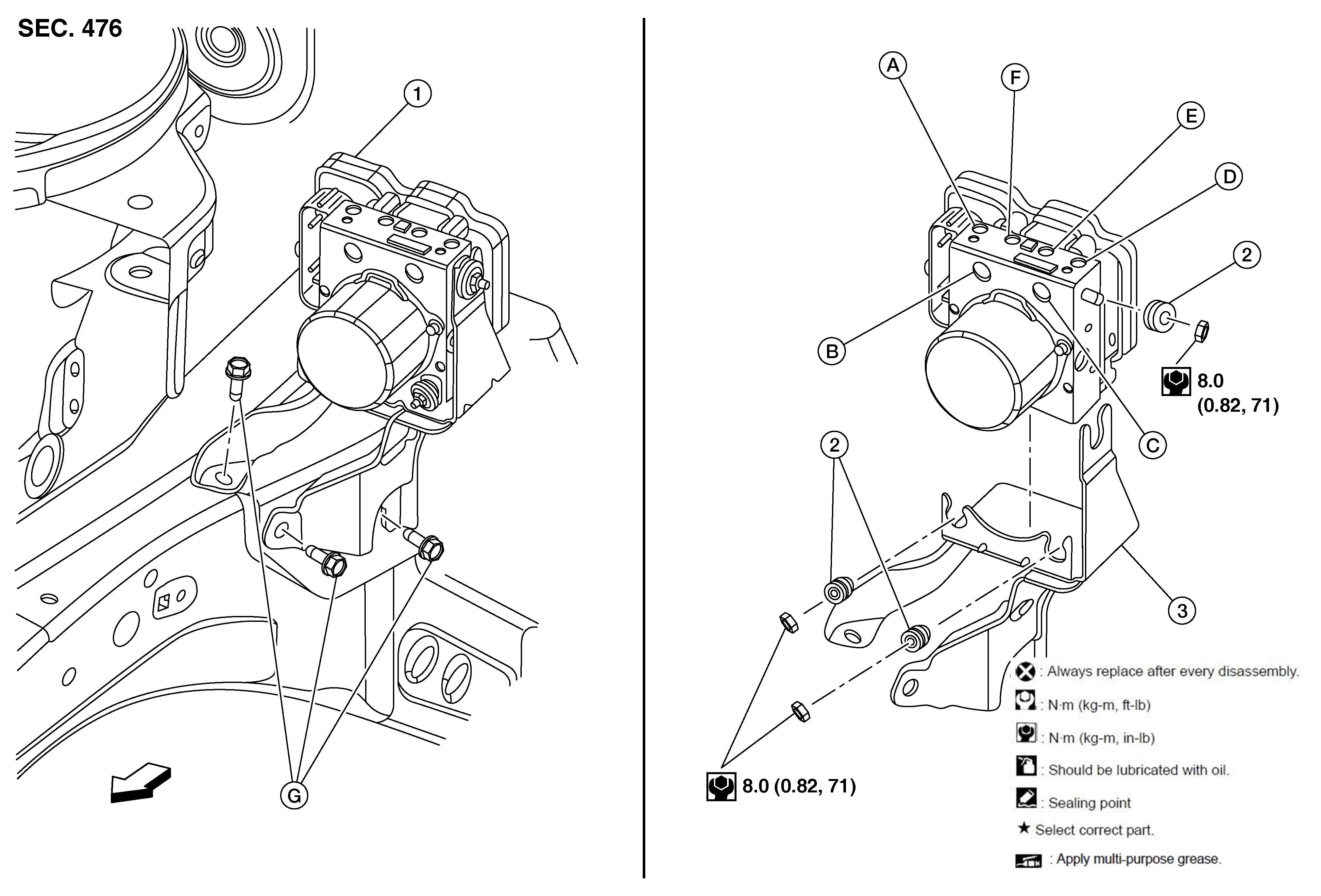

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit).	2.	Bushings	3.	Bracket
A.	To rear RH brake caliper. Refer to Exploded View .	B.	From master cylinder secondary side. Refer to Exploded View .	C.	From master cylinder primary side. Refer to Exploded View .
D.	To rear LH brake caliper. Refer to Exploded View .	E.	To front RH brake caliper. Refer to Exploded View .	F.	To front LH brake caliper. Refer to Exploded View .
G.	Refer to Installation .		Front
