Removal and Installation: Removal
CAUTION:
- Before replacing BCM, perform "Before Replace ECU" of "Read/Write Configuration" to save or print current vehicle specification. Refer to Description .
- When replacing the BCM, a new BCM must be used. The functions controlled by the BCM do not operate properly if a BCM from another vehicle is used.
- Disconnect negative battery terminal. Refer to Exploded View .
- Remove combination meter. Refer to Removal and Installation .

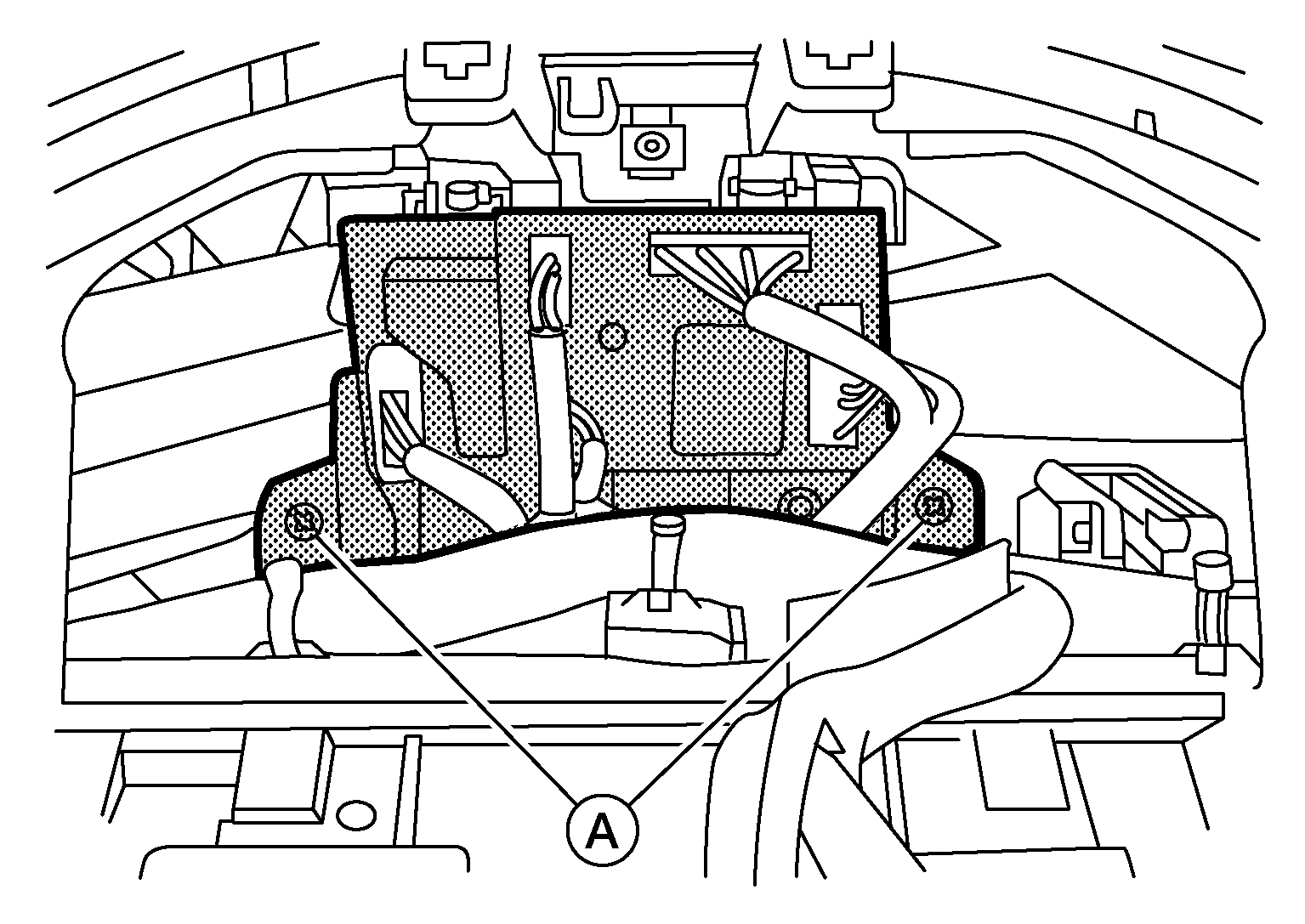

- Remove screws (A) using a suitable tool.
- Disconnect harness connectors from the BCM and remove.
