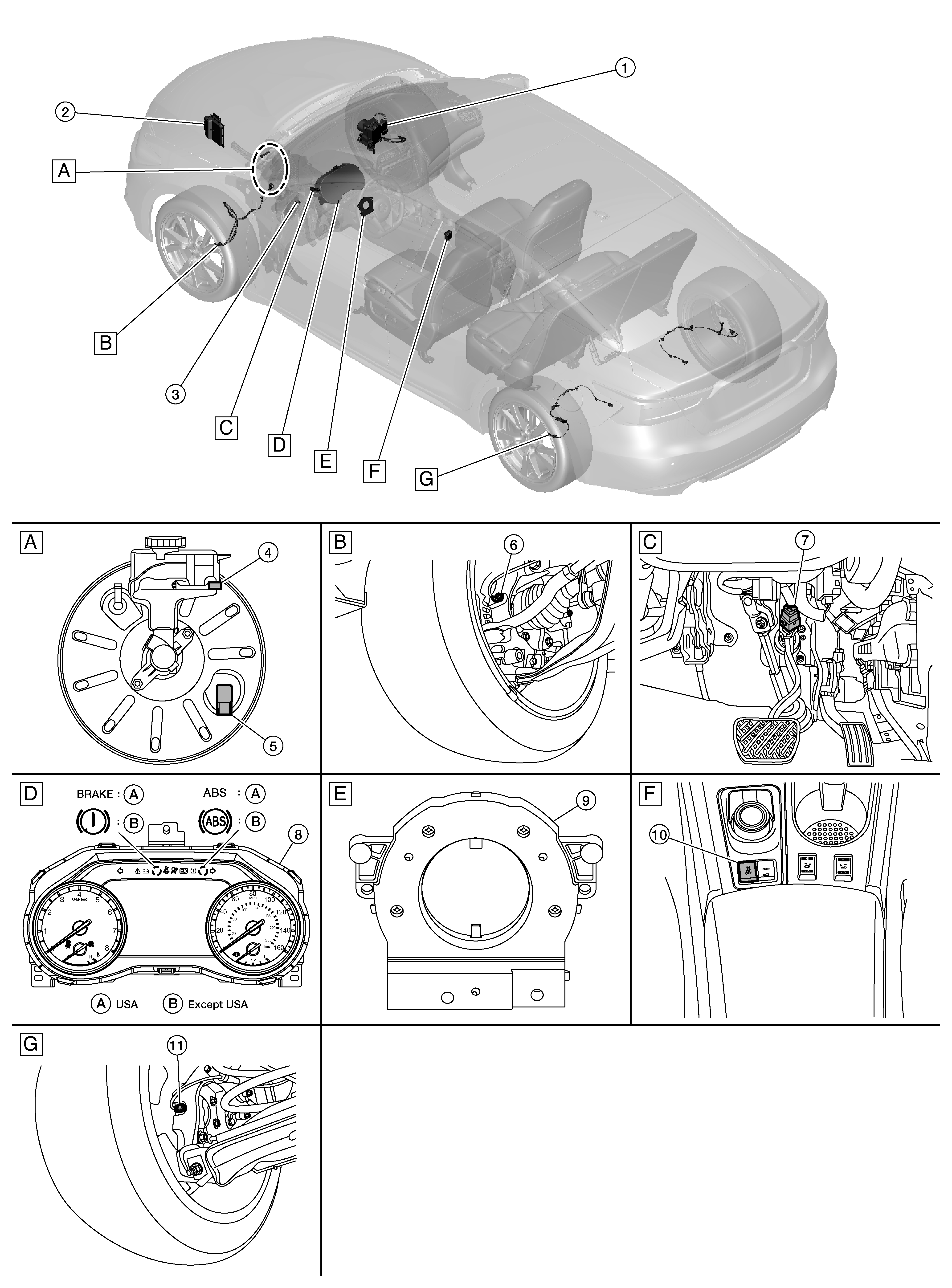

Component Location
|
A. |
View with brake booster assembly removed |
B. |
Left front wheel area |
C. |
Upper side of brake pedal (view with instrument lower panel LH removed) |
|
D. |
View of steering angle sensor removed |
E. |
Front of center console |
F. |
Left rear wheel area |
|
No. |
Component |
Function |
|
1. |
ABS actuator and electric unit (control unit) |
|
|
2. |
ECM (Engine Control Module) |
Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication.
Refer to Component Location for detailed component location. |
|
3. |
Parking brake switch |
Refer to Parking Brake Switch . |
|
4. |
Brake fluid level switch |
Refer to Brake Fluid Level Switch . |
|
5. |
Vacuum sensor |
Refer to Vacuum Sensor . |
|
6. |
Front wheel sensor LH (RH similar) |
Refer to Wheel Sensor and Sensor Rotor . |
|
7. |
Stop lamp switch |
Refer to Stop Lamp Switch . |
|
8. |
Combination meter |
Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication.
Refer to Component Location for detailed component location. |
|
9. |
Steering angle sensor |
Refer to Steering Angle Sensor . |
|
10. |
Drive mode selector (VDC OFF switch) |
Refer to VDC OFF Switch . |
|
11. |
Rear wheel sensor LH (RH similar) |
Refer to Wheel Sensor and Sensor Rotor . |
