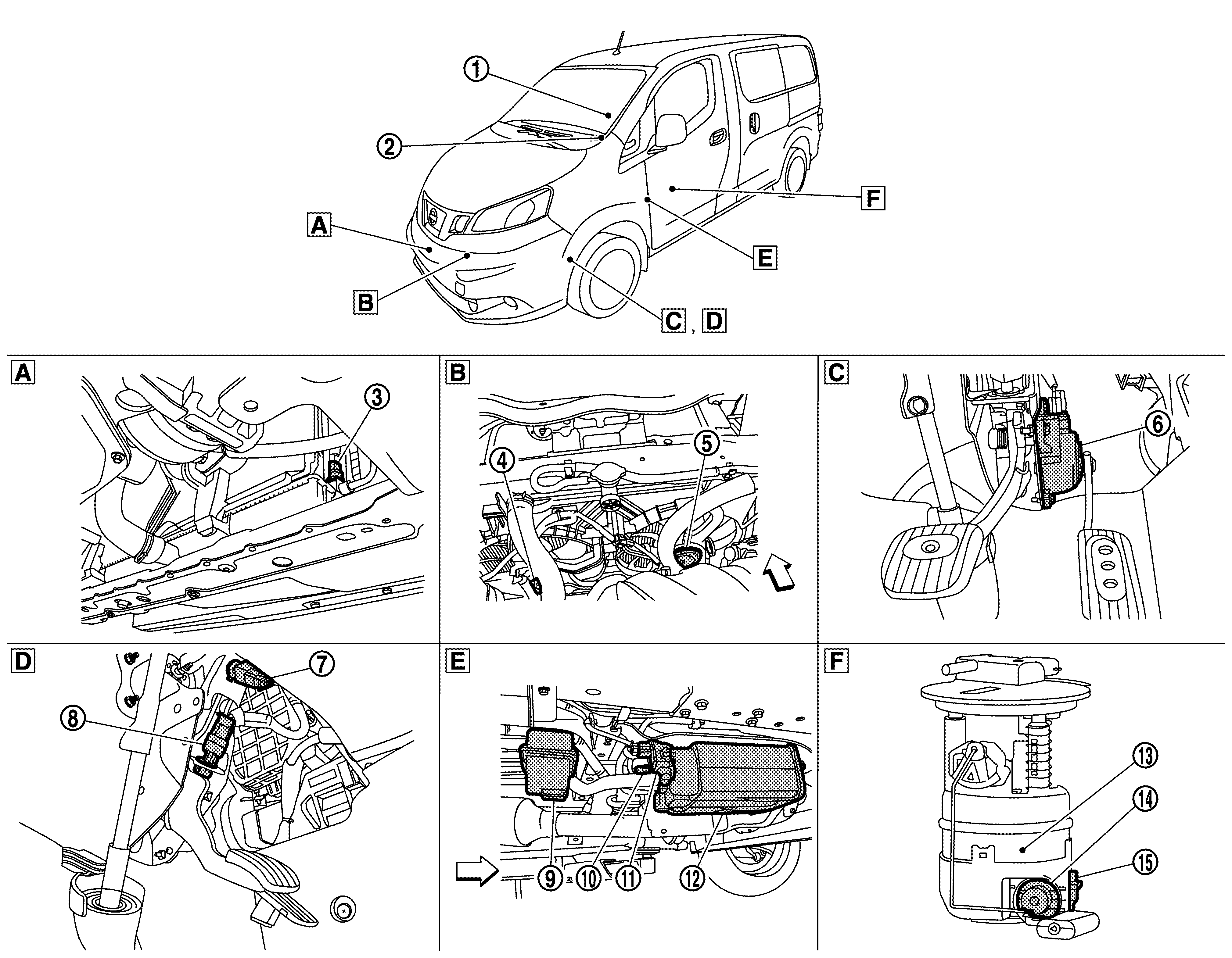

Body Compartment
|
|
Under the Radiator |
|
Cooling fan assembly |
|
Periphery of pedals |
|
|
Periphery of pedals |
|
Under the floor |
|
In the fuel tank |
|
|
: Vehicle front |
|
No. |
Component |
Function |
|
|
ASCD steering switch |
|
|
|
Combination meter |
|
|
|
Refrigerant pressure sensor |
|
|
|
Cooling fan motor-1 |
|
|
|
Cooling fan motor-2 |
|
|
|
Accelerator pedal position sensor |
|
|
|
Brake pedal position switch |
|
|
|
Stop lamp switch |
|
|
|
Drain filter |
- |
|
|
EVAP control system pressure sensor |
|
|
|
EVAP canister vent control valve |
|
|
|
EVAP canister |
EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the tank. |
|
|
Fuel level sensor unit, fuel filter and fuel pump assembly (with fuel tank temperature sensor) |
|
|
|
Fuel pressure regulator |
- |
|
|
Fuel tank temperature sensor |
