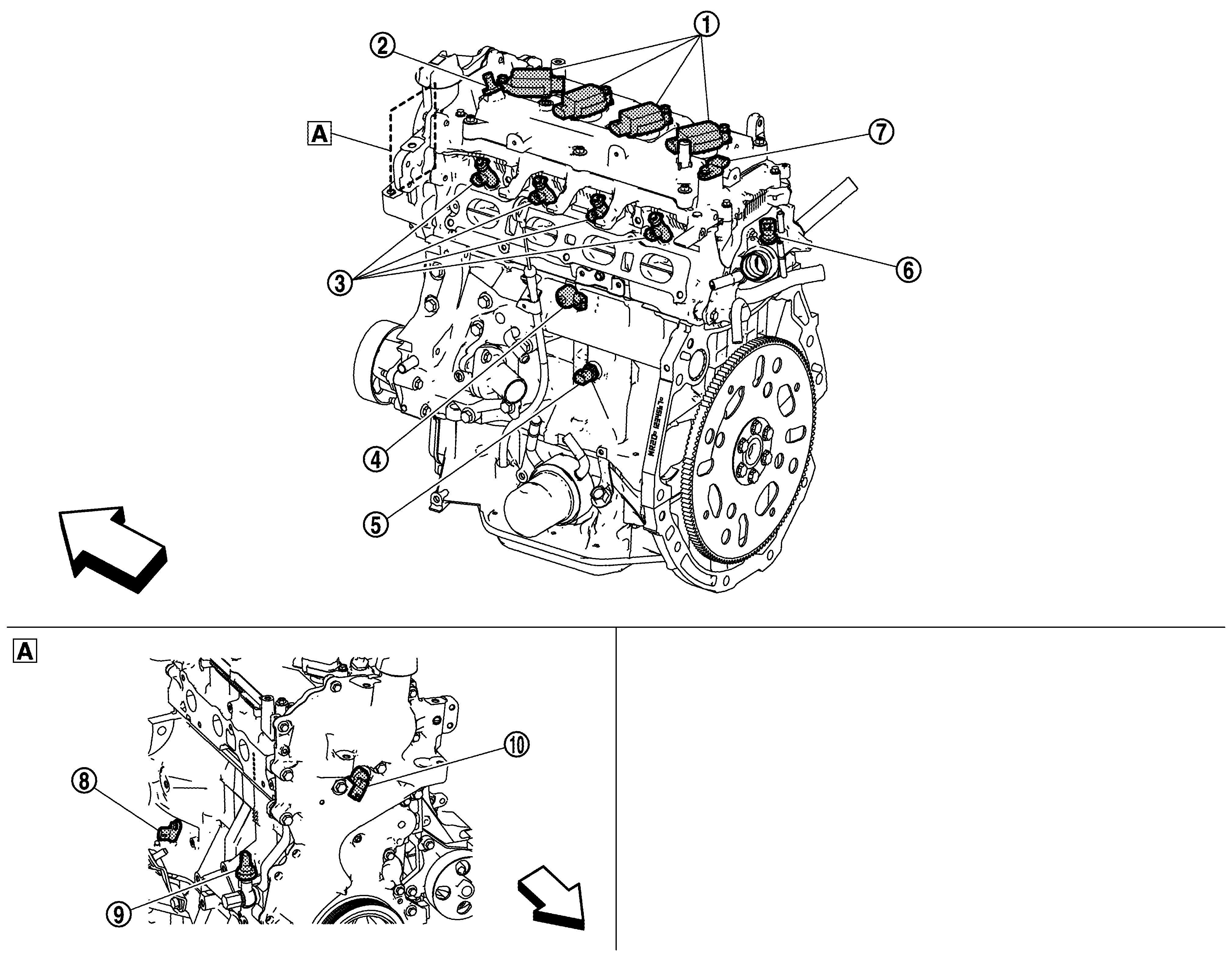

Engine Compartment
|
|
Engine front side |
|
|
: Engine front |
|
No. |
Component |
Function |
|
|
Ignition coil (with power transistor) |
|
|
|
PCV valve |
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake manifold. |
|
|
Fuel injector |
|
|
|
Knock sensor |
|
|
|
Engine oil temperature sensor |
|
|
|
Engine coolant temperature sensor |
|
|
|
Camshaft position sensor (PHASE) |
|
|
|
Crankshaft position sensor (POS) |
|
|
|
Engine oil pressure sensor |
|
|
|
Intake valve timing control solenoid valve |
