Physical Values

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/ Output

+

-

2

(L)

Ground

Input 5 signal

Input

Combination and lighting switches

OFF

0 V

Combination switch

TURN RH

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V

HI BEAM

Lighting switch

HEADLAMP 1

TAIL LAMP

3

(P)

Ground

Input 4 signal

Input

Combination, front fog lamps and lighting switches

OFF

0 V

Front fog lamps switch

ON

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V

Combination switch

TURN LH

PASSING

Lighting switch

HEADLAMP 2

4

(LG)

Ground

Input 3 signal

Input

Combination switch

OFF

0 V

FR WIPER LOW

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V

FR WIPER INT

(any intermittent position)

Light switch

AUTO LAMP

5

(O)

Ground

Input 2 signal

Input

Combination switch

OFF

0 V

FR WASHER

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V

INT VOLUME 3

6

(R)

Ground

Input 1 signal

Input

Combination switch

OFF

0 V

FR WIPER HI

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V

INT VOLUME 1

INT VOLUME 2

7

(Y)

Ground

Key cylinder unlock sw signal

Input

Key cylinder switch

NEUTRAL position

5 V

UNLOCK position

0 V

8

(SB)

Ground

Key cylinder lock sw signal

Input

Key cylinder switch

NEUTRAL position

5 V

LOCK position

0 V

9

(LG)

Ground

Brake sw 1 signal

Input

Stop lamp switch

OFF (Brake pedal released)

0 V

ON (Brake pedal depressed)

Battery voltage

10 ¹

(BR)

Ground

Rear defogger sw signal

Input

Rear window defogger switch

OFF (Released)

12 V

ON (Pressed)

0 V

11

(O)

Ground

ACC sw signal

Input

Ignition switch OFF

0 V

Ignition switch ACC or ON

Battery voltage

12

(O)

Ground

Door switch (AS) signal

Input

Front door switch RH

OFF (Front door RH closed)

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

ON (Front door RH open)

0 V

13

(GR)

Ground

Door switch (RR) signal

Input

Back door switch upper RH

OFF (Back door RH closed)

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

ON (Back door RH open)

0 V

14 ²

(LG)

Ground

Auto light power supply

Output

Ignition switch

OFF

0 V

ON

5 V

17 ²

(W)

Ground

Auto light signal

Input

Ignition switch ON

When outside of the vehicle is bright

Close to 5 V

When outside of the vehicle is dark

Close to 0 V

18

(P)

Ground

Keyless ground signal

Input

Ignition switch ON

0 V

19

(V)

Ground

Keyless tuner power supply signal

Input

Ignition switch OFF

Key inserted into ignition key cylinder

0 V

Key removed from ignition key cylinder

(Any door open)

5 V

Key removed from ignition key cylinder

(Any door closed)

20

(W)

Ground

Keyless tuner signal

Input

Ignition switch OFF

Key inserted into ignition key cylinder

0 V

Waiting

Signal receiving

21 ³

(G)

Ground

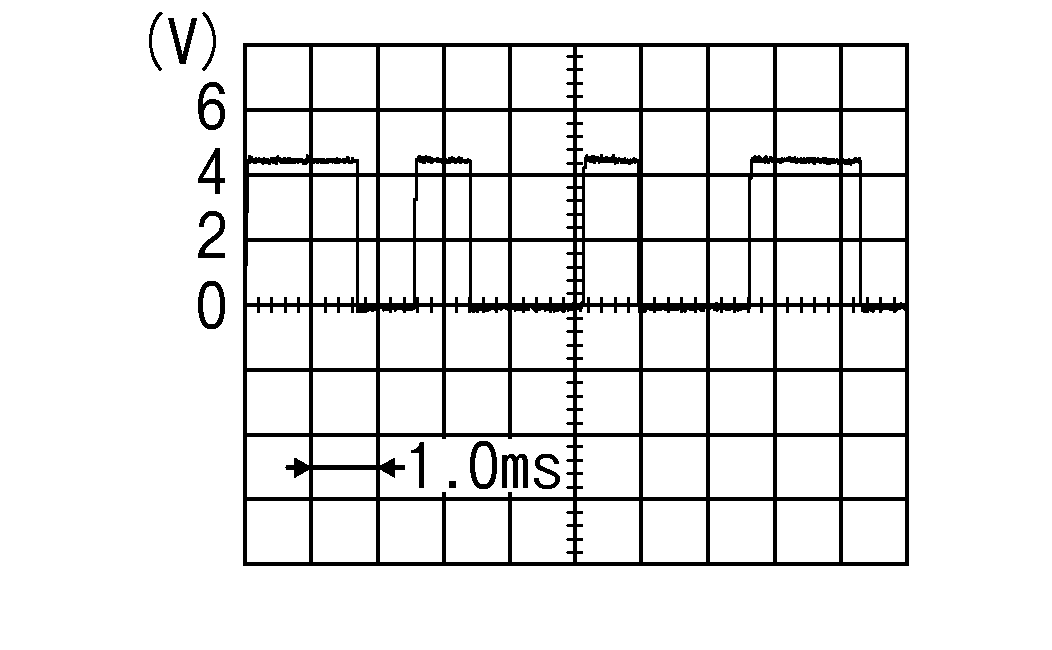

Immobilizer one way communication (Clock) signal

Input/Output

While waiting

Place ignition switch ON

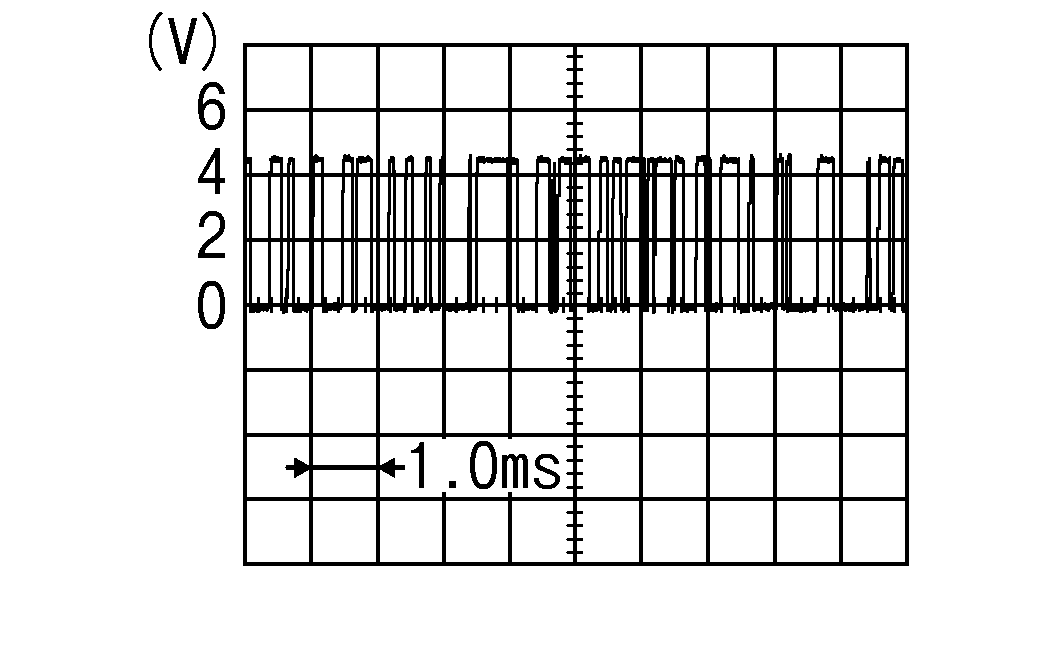

Place ignition switch ON: Pointer of tester should move.

23 ³

(G)

Ground

Security indicator output signal

Output

Security indicator

ON

0 V

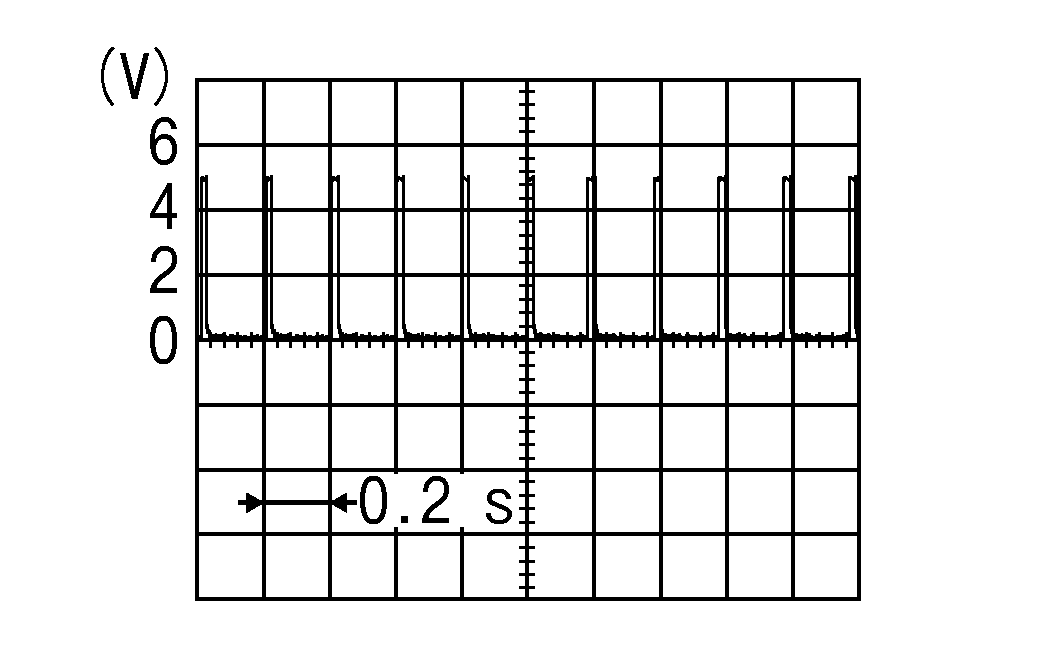

Blinking (Ignition switch OFF)

Courtesy of NISSAN NORTH AMERICA, INC.

11.3 V

OFF

12 V

25 ³

(BR)

Ground

Immobilizer two way communication signal

Input/Output

While waiting

Place ignition switch ON

Place ignition switch ON: Pointer of tester should move.

27

(GR)

Ground

Air control sw signal

Input

A/C switch

OFF

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 - 1.5 V

ON

0 V

28

(Y)

Ground

Blower fan sw signal

Input

Fan switch

Blower fan switch OFF

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

Blower fan switch ON

0 V

29

(O)

Ground

Hazard sw signal

Input

Hazard switch

OFF

Battery voltage

ON

0 V

32

(SB)

Ground

Output 5 signal

Output

Combination switch

OFF

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

Front fog lamps switch

ON

Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V

Combination switch

INT VOLUME 2

33

(G)

Ground

Output 4 signal

Output

Combination and lighting switches

OFF

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

Lighting switch

TAIL LAMP

Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V

AUTO LAMP

Combination switch

INT VOLUME 3

34

(Y)

Ground

Output 3 signal

Output

Combination and lighting switches

OFF

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

Lighting switch

HEADLAMP 2

Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V

Combination switch

HI BEAM

INT VOLUME 1

35

(BR)

Ground

Output 2 signal

Output

Combination and lighting switches

OFF

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

Lighting switch

HEADLAMP 1

Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V

Combination switch

PASSING

FR WIPER HI

FR WIPER INT

(any intermittent position)

36

(Y)

Ground

Output 1 signal

Output

Combination switch

OFF

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

TURN RH

Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V

TURN LH

FR WIPER LOW

FR WASHER

37

(BR)

Ground

Key sw signal

Input

Key inserted into ignition key cylinder

Battery voltage

Key removed from ignition key cylinder

0 V

38

(R)

Ground

Ign sw signal

Input

Ignition switch OFF or ACC

0 V

Ignition switch ON

Battery voltage

39

(L)

Ground

CAN-High

Input/Output

--

--

40

(P)

Ground

CAN-Low

Input/Output

--

--

45

(GR)

Ground

Central door lock sw signal

Input

Door lock/unlock switch

NEUTRAL position

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 - 1.5 V

LOCK position

0 V

46

(R)

Ground

Central door unlock sw signal

Input

Door lock/unlock switch

NEUTRAL position

Courtesy of NISSAN NORTH AMERICA, INC.

1.0 - 1.5 V

UNLOCK position

0 V

47

(SB)

Ground

Door switch (DR) signal

Input

Front door switch LH

OFF (Front door LH closed)

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

ON (Front door LH open)

0 V

48

(O)

Ground

Door switch (SLIDE, BK LWR) signal

Input

Back door switch lower LH, back door lower RH, secondary sliding door switch (with high roof) or sliding door switch

OFF (Back door LH, back door RH or sliding door closed)

Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V

ON (Back door LH, back door RH or sliding door open)

0 V

51 ⁴

(V)

Ground

Trailer flasher output (right) signal

Output

Turn signal switch RH ON

52 ⁴

(G)

Ground

Trailer flasher output (left) signal

Output

Turn signal switch LH ON

56

(SB)

Ground

Battery saver output signal

Output

Interior room lamp battery saver activated

0 V

Interior room lamp battery saver not activated

12 V

57

(LG)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

59

(W)

Ground

Door unlock output (DR) signal

Output

Front door LH actuator

Actuated to UNLOCK position

12 V

Other than actuated to UNLOCK position

0 V

60

(Y)

Ground

Flasher output (left) signal

Output

Ignition switch ON

Turn signal switch OFF

0 V

Turn signal switch LH ON

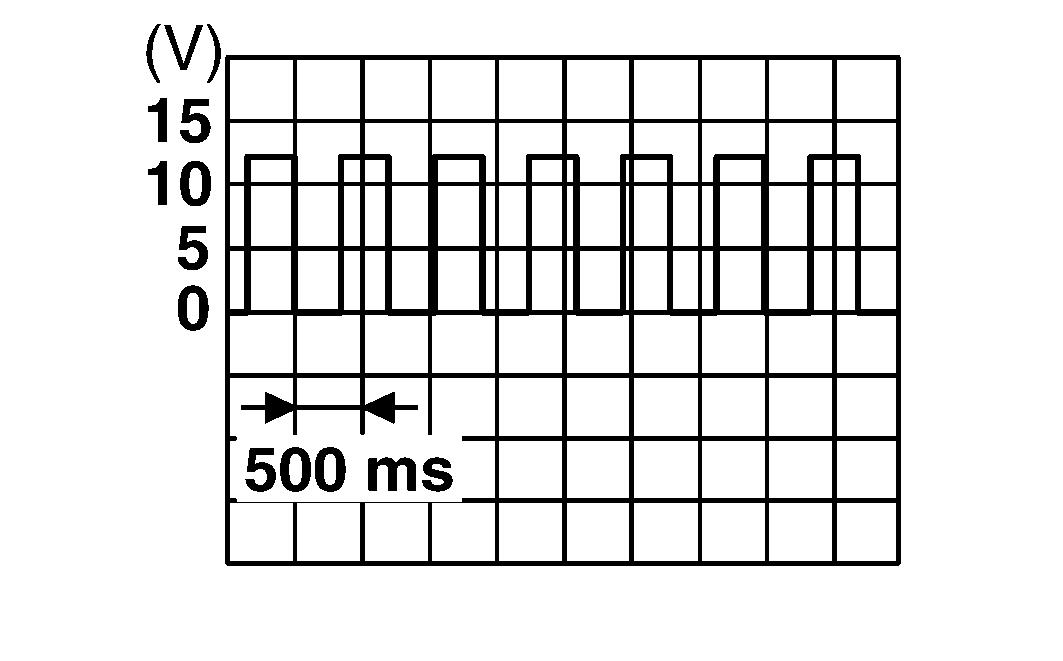

Courtesy of NISSAN NORTH AMERICA, INC.

6.0 V

61

(G)

Ground

Flasher output (right) signal

Output

Ignition switch ON

Turn signal switch OFF

0 V

Turn signal switch RH ON

Courtesy of NISSAN NORTH AMERICA, INC.

6.0 V

62 ⁵

(W)

Ground

Step lamp output signal

Output

Step lamp

OFF

12 V

ON

0 V

63

(L)

Ground

Room lamp output signal

Output

Interior room lamp

OFF

12 V

ON

0 V

65

(G)

Ground

Door lock output signal

Output

All door actuators

Actuated to LOCK position

12 V

Other than actuated to LOCK position

0 V

66

(Y)

Ground

Door unlock output (AS, RR, RL, BD) signal

Output

Back door lock, front door lock RH and sliding door lock actuators

Actuated to UNLOCK position

12 V

Other than actuated to UNLOCK position

0 V

67

(B)

Ground

Ground

Output

Ignition switch ON

0 V

68

(W)

Ground

Power window power supply (RAP) signal

Output

Ignition switch ON

12 V

69

(L)

Ground

Power window power supply (battery) signal

Output

Ignition switch OFF

12 V

70

(R)

Ground

Battery power supply (F/L)

Input

Ignition switch OFF

Battery voltage
